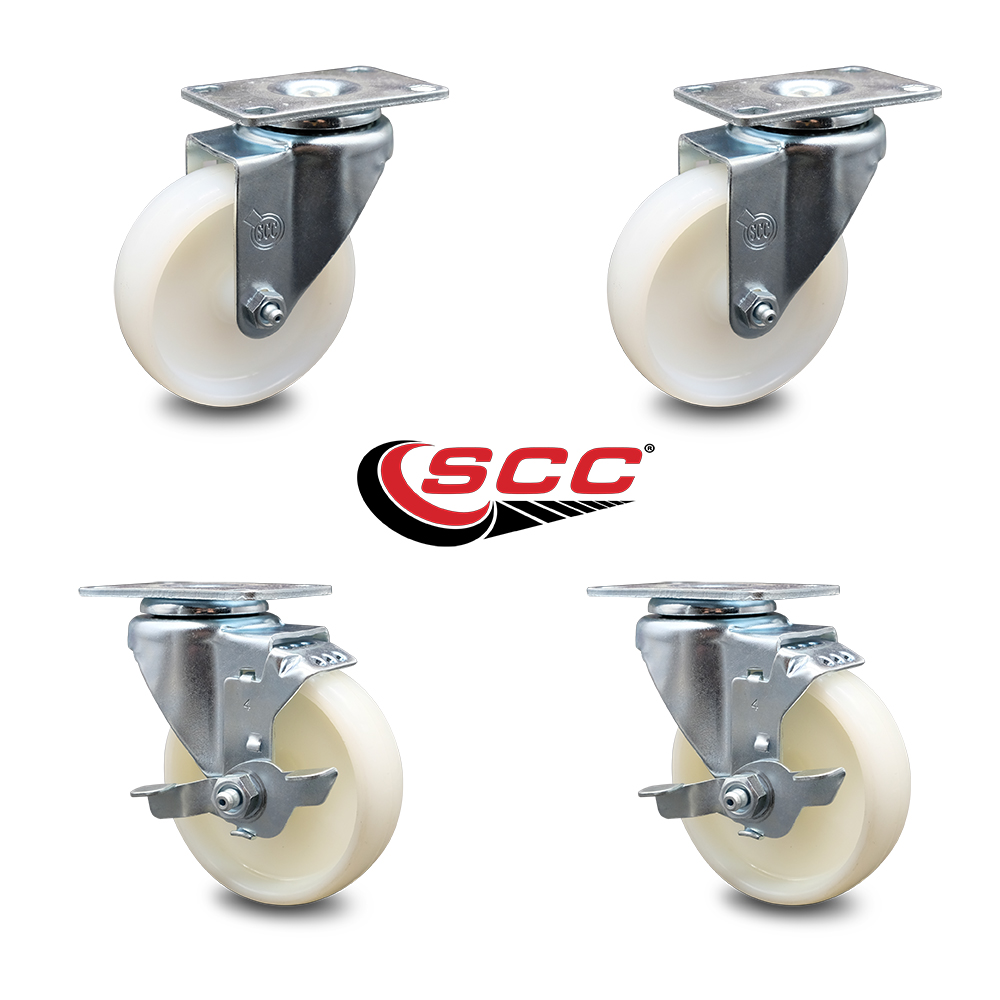

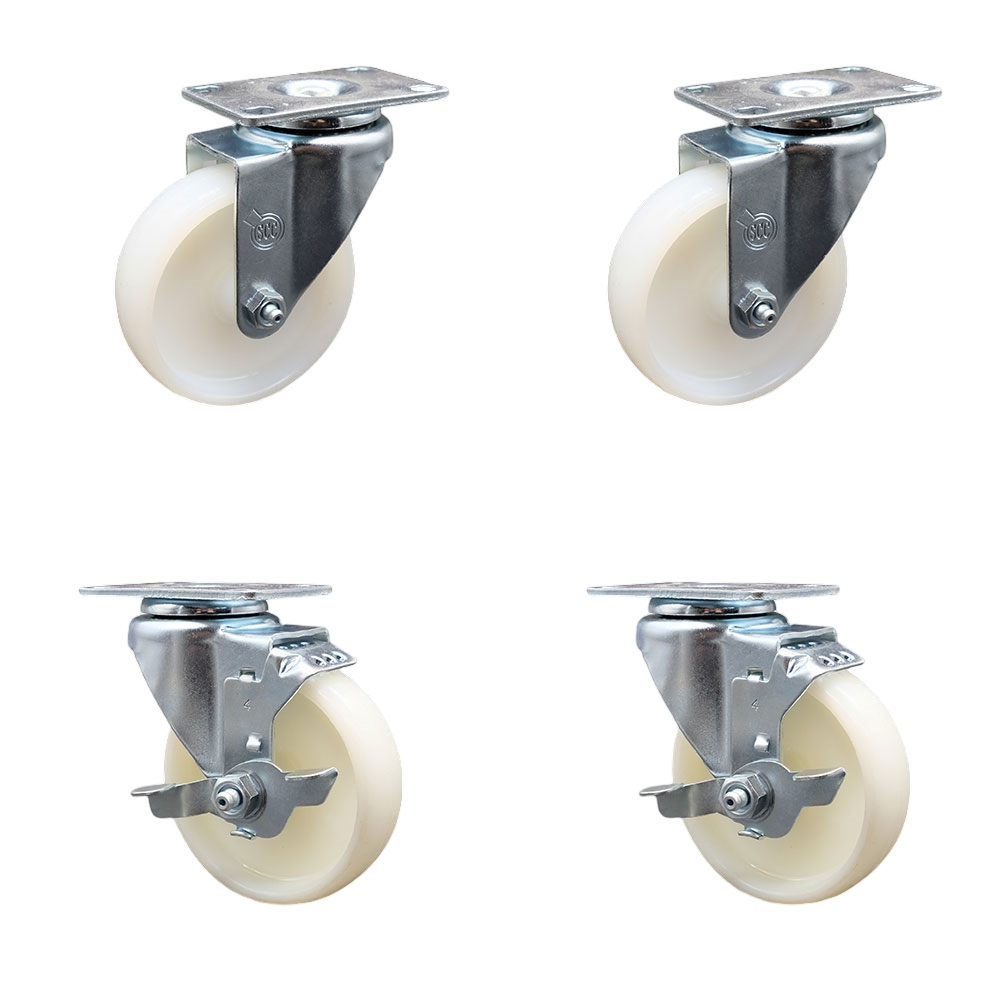

Nylon Swivel Top Plate Caster Set of 4 with 4 Inch White Wheels - Includes 2 Swivel with Top Locking Brakes and 2 Swivel - 1200 lbs. Total Capacity - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

SCC-20S414-NYS-2-TLB-2

Condition

new

Quantity

4

UPC

670533912677

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

7.1 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Pattern

1-3/4" x 2-7/8" to 3"

Bolt Size

5/16" (hardware not included)

Capacity

300

Color

4 Swivel w/2 Top Lock Brakes

Durometer

75D

Feature

2 casters with top lock brakes

Heat Capacity

-40 degrees F to 210 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

5-1/8"

Locking Type

2 casters with top lock brakes

Lower Temperature

-40

Lower Temperature UofM

F

Material Type

Nylon

Maximum Temperature

210

Maximum Temperature UofM

F

Mounting Height

5-1/8"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

4" Wheel

Top Plate Size

2-1/2" x 3-5/8"

Tread Width

1.25

Tread Width UofM

inches

Type

(2) swivel casters & (2) swivel casters w/top lock brakes

Wheel Bearing

Plain Bore

Wheel Diameter

4

Wheel Diameter UofM

inches

Wheel Material

Nylon

Wheel Size

4" x 1-1/4"

Wheel Type

Nylon

Description

Listing is for a a set of four (4) Service Caster Series #20 swivel casters, two (2) with top locking brakes, with 4" diameter by 1-1/4" wide nylon wheels capable of supporting a total weight of 1,200 lbs. (300 lbs./caster).When searching for a reliable and durable solution to your caster needs, consider Service Caster Series 20 top plate nylon wheel casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, and the nylon wheels provide very low rolling resistance, show a high resistance to many aggressive substances, and are maintenance free under normal operating conditions. Not only are they resistant to most chemicals and oils, but they will be sure to keep you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #20 Nylon casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height. • Weight Capacity: 3", 4" and 5": 300 lbs Capacity/Caster • Top plate measures at 2-1/2" x 3-5/8" with a bolt hole pattern of 1-3/4" x 2-7/8" to 3" and can either be bolted or welded on. • Brake options include a top lock brake, a total lock brake, or a posi lock brake. The top lock brake places a positive locking force against the wheel tread locking the wheel only. The total lock brake simultaneously locks the wheel and the swivel for a complete stationary position. The posi lock brake places a positive locking force against the wheel tread similar to the top lock brake, but the pedal is located above the wheel tread rather than on the side of the wheel.
