Nylon Swivel Threaded Stem Caster w/2.8" Black Wheel and 16mm x 2.0mm x 138mm Stem - 770 lbs Capacity/Caster - Service Caster Brand

Details

Manufacturer

Service Caster

SKU

SCC-TPLV30S72-NYR-770-ZC

Condition

new

Quantity

1

UPC

011586525573

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

3.3 lb

Posted

Sep 17, 2026, 7:00 PM CDT

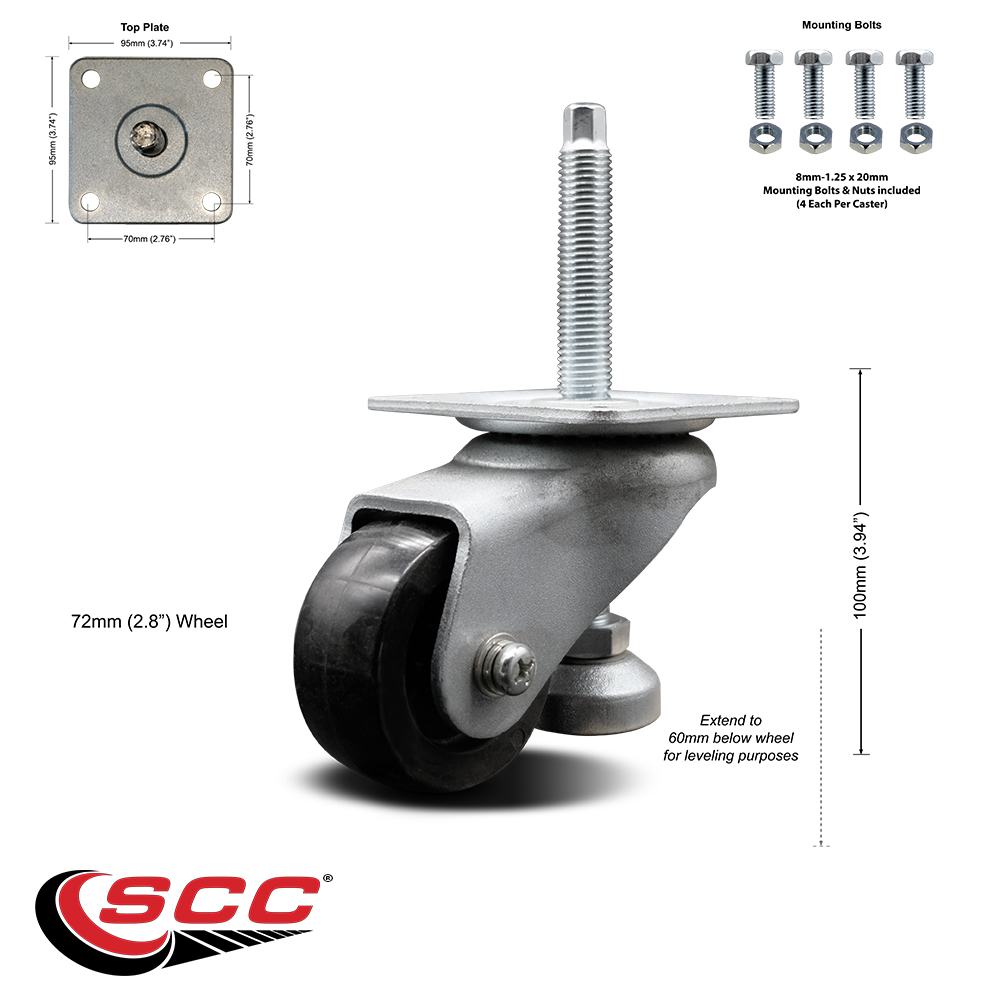

Specifications

Bolt Size

8mm - 1.25 x 20mm

Capacity

770

Color

Threaded Stem - M16 x 2.0 x 138mm

Durometer

75D

Item Weight Unit of Measure

pounds

Load Height

3.94"

Mounting Height

3.94"

Mounting Type

Top Plate

Plating/Coating

Diecast Aluminum Powder Coat

Casters Mounting Method

Plate

Locking Castersor Wheels

No

Swivels

Yes

Size

2.8" Wheel - 1 PC

Type

Leveling Caster

Wheel Bearing

Plain Bore

Wheel Diameter

2.8

Wheel Diameter UofM

inches

Wheel Material

Nylon

Wheel Size

2.8"

Wheel Type

Nylon

Description

Listing is for one (1) Service Caster leveling caster with a 2.8” diameter black nylon wheel and M16 metric threaded stem. Supports up to 770lbs per caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster’s adjustable leveling casters. Adjustable leveling casters are ideal for light, medium and heavy duty applications and are used in a broad range of institutional and commercial applications, as well as in the home and office. These casters support heavy computer and medical equipment, industrial tables, display cases, and other furniture that require a level, stable platform while retaining the ability to roll. Simply roll into position then engage the leveling foot by hand or wrench to make completely stationary. Leveling casters have a high quality, die cast aluminum powder coated body and a non-marking nylon wheel. Mounting options include threaded stem bolts and top plates, which include additional fastening bolts to ensure a stable and secure attachment. • These Service Caster Floor Leveling Nylon casters offer various wheel sizes and mounting heights: 1.65” Wheel: 2.8” mounting height; 1.97"” wheel: 3.27” mounting height; 2” wheel: 2.85” mounting height; 2.8” wheel: 3.94” mounting height; 2.44” wheel: 4.02” mounting height; 2.83” wheel: 4.72” mounting height. • Weight capacity ranges from 55 lbs on the 1.65” caster, 330 lbs on the 1.97”, 220 lbs on the 2”, 660 lbs. on the 2.44”, 1100 lbs. on the 2.8” & 2.83". • All casters feature a M16 diameter (2.0mm x 138mm) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button. • The leveling foot can be raised by hand or wrench. Foot extends up to 60mm (2.36")below wheel for leveling purposes.
