Browse / Parts & Components / Nylon Swivel Bolt Hole Caster Set of 4 with 3 Inch White Caster Wheels - 316 Stainless Steel Casters - Includes 4 Swivel Casters with Top Lock Brakes - 1,200 lbs. Total Capacity - Service Caster Brand
Nylon Swivel Bolt Hole Caster Set of 4 with 3 Inch White Caster Wheels - 316 Stainless Steel Casters - Includes 4 Swivel Casters with Top Lock Brakes - 1,200 lbs. Total Capacity - Service Caster Brand
Seller
Sign in to see direct contact details and connect off-platform, or message through CynchUp.
View seller's listingsDetails
- Manufacturer
- Service Caster
- Model
- Series #20
- SKU
- SCC-SS316BH20S314-NYS-TLB-4
- Condition
- new
- Quantity
- 4
- UPC
- 011586617124
- Dimensions (L x W x H)
- 8 x 8 x 8 in
- Shipping weight
- 6 lb
- Posted
- Sep 17, 2026, 7:00 PM CDT
Specifications
- Capacity
- 1200
- Color
- 4 Swivel - Top Lock Brakes - White
- Durometer
- 75D
- Feature
- Top lock brake
- Heat Capacity
- -40 degrees F to 210 degrees F
- Item Dimension Unit of Measure
- inches
- Item Weight Unit of Measure
- pounds
- Load Height
- 4-1/8"
- Locking Type
- Top lock brake
- Lower Temperature
- -40
- Lower Temperature UofM
- F
- Material Type
- Nylon
- Maximum Temperature
- 210
- Maximum Temperature UofM
- F
- Mounting Height
- 4-1/8"
- Mounting Type
- Bolt Hole
- Plating/Coating
- 316 Polished Stainless Steel
- Locking Castersor Wheels
- Yes
- Swivels
- Yes
- Size
- 3" Wheel
- Stain Resistant
- Yes
- Tread Width
- 1.25
- Tread Width UofM
- inches
- Type
- (4) swivel casters w/ top lock brakes
- Wheel Bearing
- Plain Bore
- Wheel Diameter
- 3
- Wheel Diameter UofM
- inches
- Wheel Material
- Nylon
- Wheel Size
- 3" x 1-1/4"
- Wheel Type
- Nylon
Description

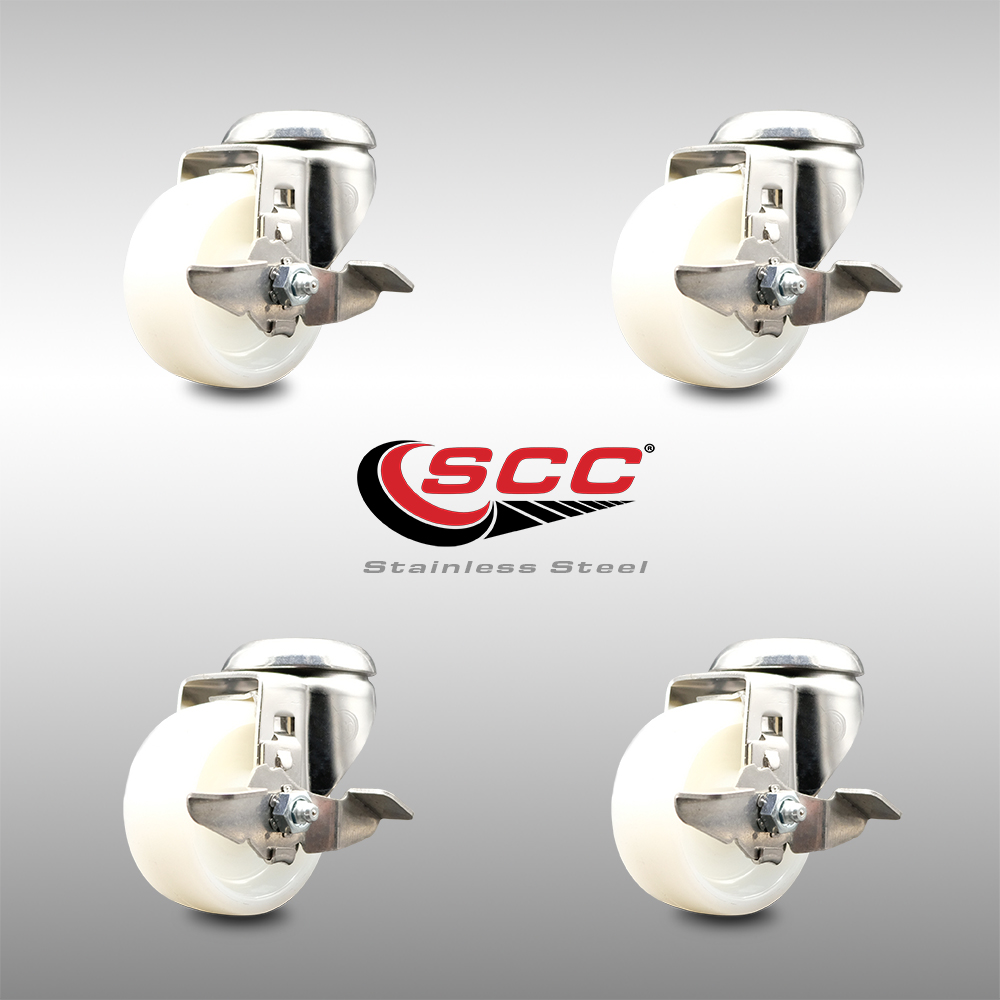

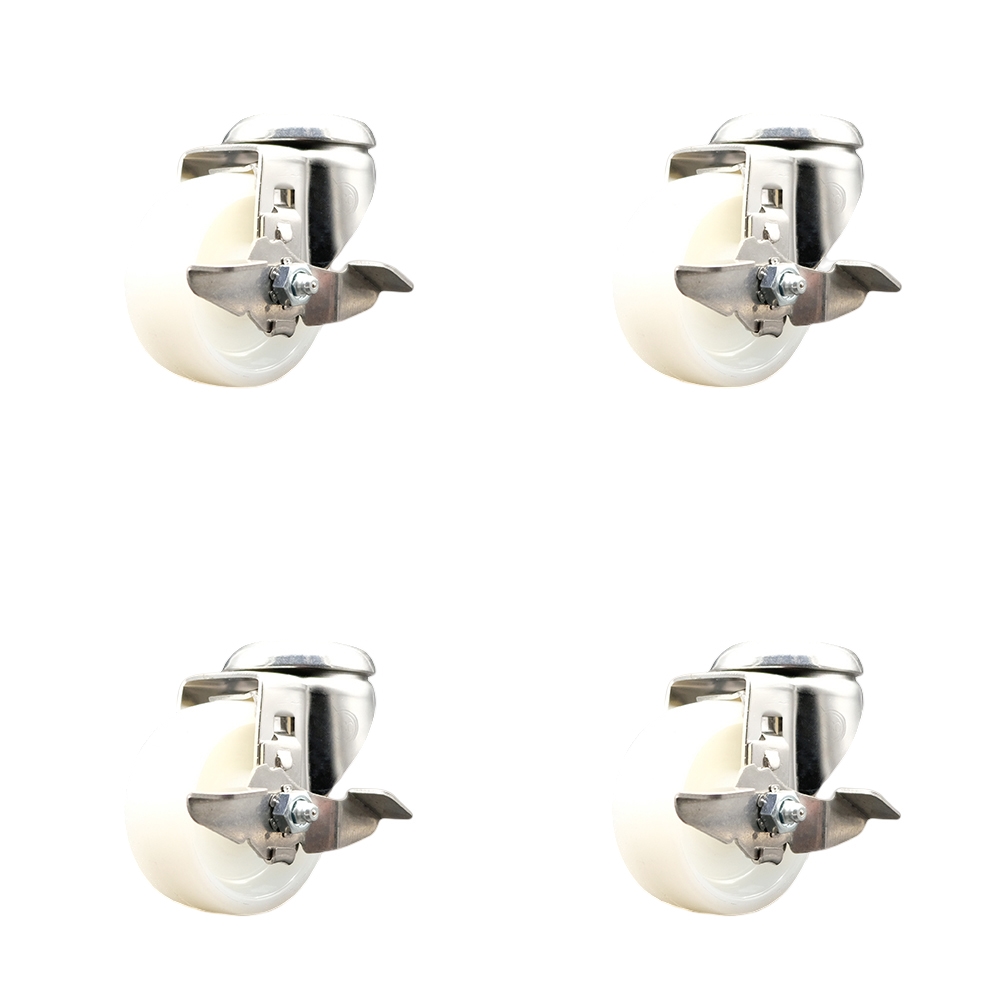

Listing is for a set of four (4) Service Caster Series #20 316 stainless steel swivel bolt hole casters, four (4) swivel casters with top lock brakes, 3” diameter by 1-1/4” wide nylon wheels. Supports a total weight of 1,200lbs (300lbs/per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s 316 stainless steel nylon wheel casters. SS316 casters are ideal for light and medium duty material handling, carts, equipment, and shop projects. Built with 316 stainless steel, which contains additional molybdenum and nickel content, making it more corrosion resistant than standard 304 stainless steel. The nylon wheels provide very low rolling resistance, show a high resistance to many aggressive substances and under normal operating conditions are maintenance free. Resistant to most chemical and oils, these nylon wheels will keep you safely moving forward. Mounting options include top plate, bolt hole, expanding stem and standard and metric threaded stem sizes. • These Service Caster Series #20 316 Stainless Steel Nylon casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height. • Weight Capacity: 3", 4" and 5": 300 lbs Capacity/Caster • All casters feature a 1/2” diameter bolt hole. Bolt hole casters have a hole in the rivet which can accept a bolt or a customized stem for any type of mounting requirement. • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB), which is featured on 3", 3-1/2", 4", and 5" wheel sizes, places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL), which is featured on all wheel sizes, also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
