Browse / Parts & Components / Low Profile Swivel Top Plate Caster - 2 Inch by 1-13/16 Inch Polyolefin Wheel - 300 lbs. Capacity Per Caster - Service Caster Brand

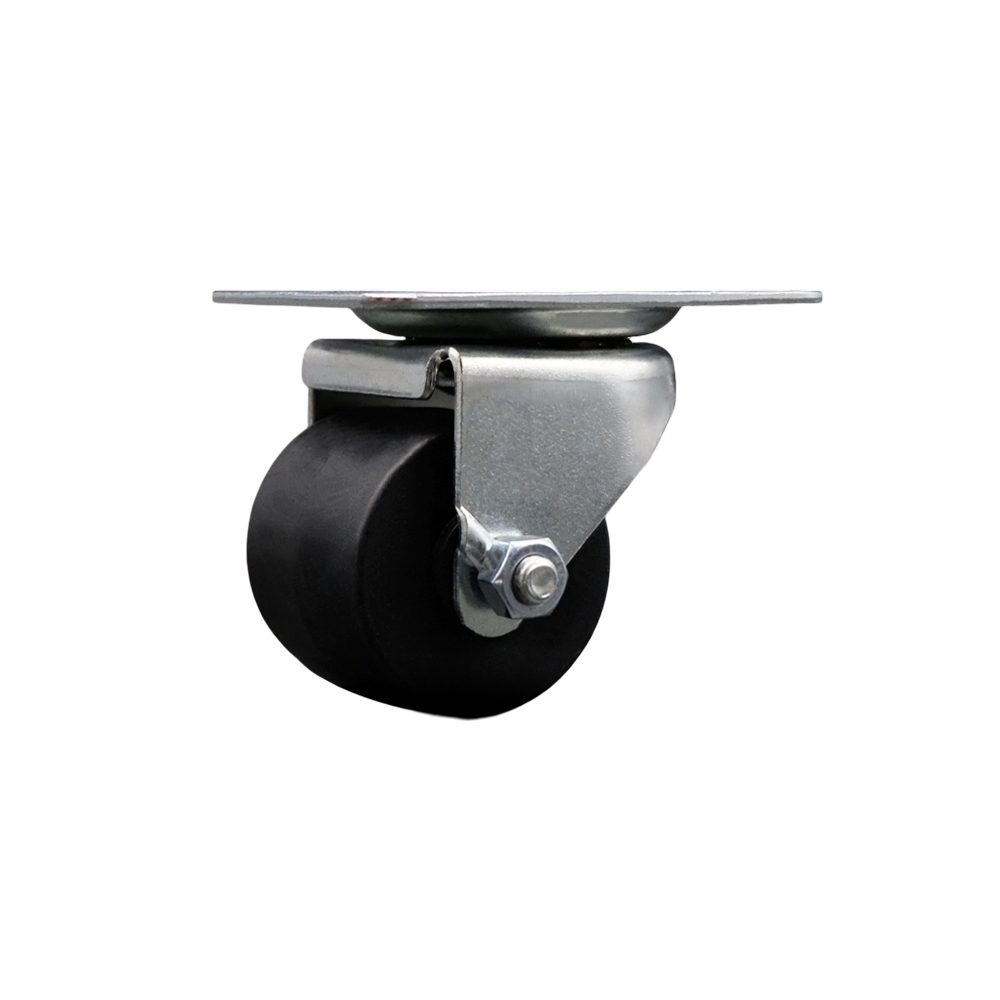

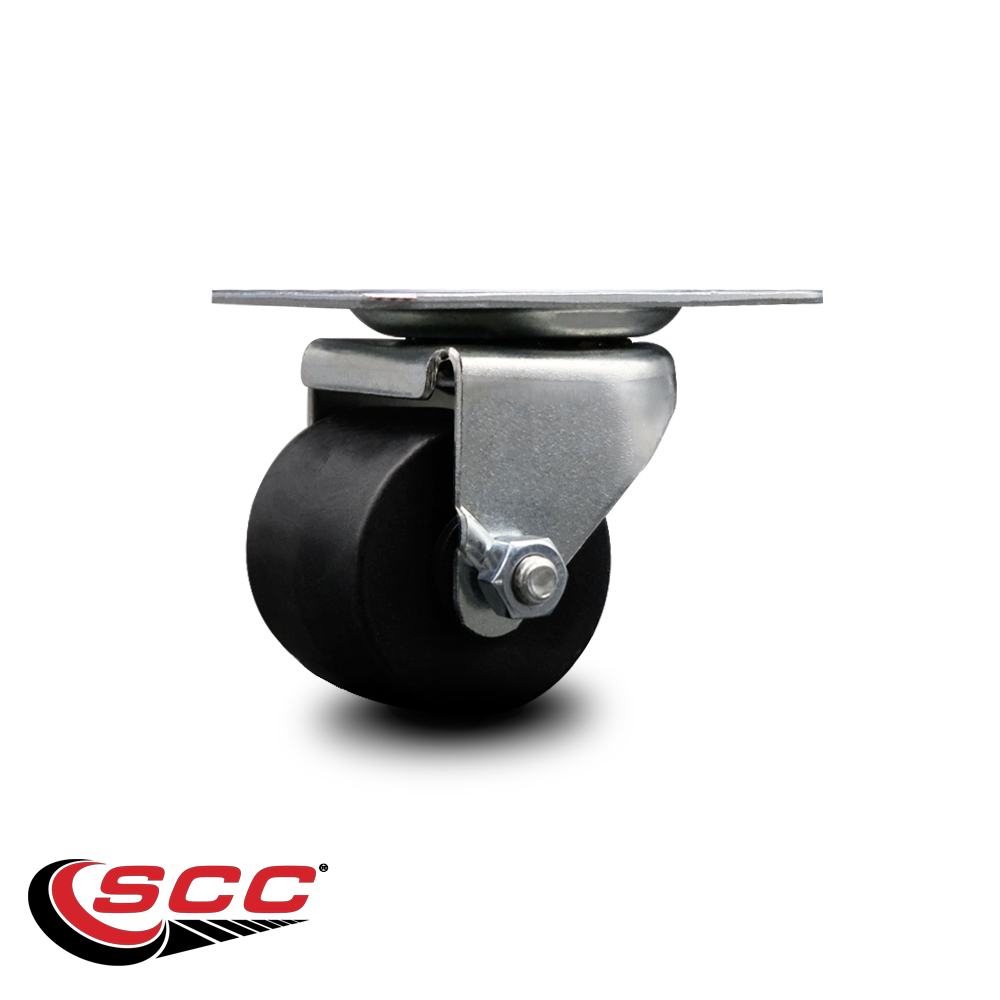

Low Profile Swivel Top Plate Caster - 2 Inch by 1-13/16 Inch Polyolefin Wheel - 300 lbs. Capacity Per Caster - Service Caster Brand
Seller
Sign in to see direct contact details and connect off-platform, or message through CynchUp.
View seller's listingsDetails
- Manufacturer
- Service Caster
- Model
- Series #04
- SKU
- SCC-04S211316-POS
- Condition
- new
- Quantity
- 1
- UPC
- 734005083194
- Harmonized code
- 8302.20.0000
- Dimensions (L x W x H)
- 5 x 5 x 5 in
- Shipping weight
- 3 lb
- Posted
- Sep 17, 2026, 7:00 PM CDT
Specifications
- Bolt Size
- 5/16" (hardware not included)
- Capacity
- 300
- Color
- Swivel - No Brake - Black
- Durometer
- 70D
- Heat Capacity
- -20 degrees F to 180 degrees F
- Item Dimension Unit of Measure
- inches
- Item Weight Unit of Measure
- pounds
- Load Height
- 2-13/16"
- Lower Temperature
- -20
- Lower Temperature UofM
- F
- Material Type
- Polyolefin
- Maximum Temperature
- 180
- Maximum Temperature UofM
- F
- Mounting Height
- 2-13/16"
- Mounting Type
- Top Plate
- Plating/Coating
- Zinc Plated Finish
- Casters Mounting Method
- Plate
- Swivels
- Yes
- Size
- Top Plate - 2" Wheel - Polyolefin
- Top Plate Size
- 2-5/8" x 3-3/4"
- Tread Width
- 3.75
- Tread Width UofM
- inches
- Type
- Swivel caster
- Wheel Bearing
- Plain Bore
- Wheel Diameter
- 2
- Wheel Diameter UofM
- inches
- Wheel Material
- Polyolefin
- Wheel Size
- 2"
- Wheel Type
- Polyolefin
Description
Listing is for one (1) Service Caster Series #04 heavy duty low profile business machine top plate swivel caster. Features a 2" diameter by 1-13/16" wide polyolefin wheel. Supports 300 pounds (lbs.) per caster. When searching for a reliable and durable solution for your business machine needs, consider Service Caster’s low profile casters. The Service Caster 04 series is ideal for copiers, business machines, vending machines, displays, computer storage devices, and electronics cabinets. The low profile design allows for an unlimited amount of uses where casters are a necessity without raising the unit further than necessary. Mounting options include top plate, grip ring, standard and metric threaded stem sizes. Also, the innovative expanding stem, that can easily adapt to the inside diameter of an opening, allowing for a secure fit in round or square tubes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Wheel: 2" - Polyolefin • Weight Capacity: 300 lbs./caster • Top Plate Size: 2-5/8" x 3-3/4" • Bolt Hole Pattern: 1-3/4" x 2-3/4" to 3"
