Browse / Parts & Components / Low Profile Polyurethane Swivel Threaded Stem Caster w/35mm x 27mm Yellow Wheel and 12mm Stem - 220 lbs Capacity/Caster - Service Caster Brand
Low Profile Polyurethane Swivel Threaded Stem Caster w/35mm x 27mm Yellow Wheel and 12mm Stem - 220 lbs Capacity/Caster - Service Caster Brand
Seller
Sign in to see direct contact details and connect off-platform, or message through CynchUp.
View seller's listingsDetails
- Manufacturer
- Service Caster
- Model
- Series #04
- SKU
- SCC-TS04S13810-PUB-M1215
- Condition
- new
- Quantity
- 1
- UPC
- 011586526006
- Harmonized code
- 8302.20.0000
- Dimensions (L x W x H)
- 5 x 5 x 5 in
- Shipping weight
- 4 lb
- Posted
- Sep 17, 2026, 7:00 PM CDT
Specifications
- Capacity
- 220
- Color
- 12mm Stem - No Brakes - 1 PC
- Durometer
- 92 Shore A
- Heat Capacity
- -13 degrees F to 158 degrees F
- Item Dimension Unit of Measure
- inches
- Item Weight Unit of Measure
- pounds
- Load Height
- 52 mm (2")
- Lower Temperature
- -13
- Lower Temperature UofM
- F
- Material Type
- Polyurethane Tread on Steel Core
- Maximum Temperature
- 158
- Maximum Temperature UofM
- F
- Mounting Height
- 52 mm (2")
- Mounting Type
- Threaded Stem
- Plating/Coating
- Zinc Plated Finish
- Casters Mounting Method
- Stem
- Locking Castersor Wheels
- No
- Swivels
- Yes
- Size
- Threaded Stem - 35mm Wheel - Polyurethane
- Stem
- 12mm - 1.75 x 1-1/2" length threaded stem
- Stem Diameter
- 12mm
- Stem Length
- 1.5
- Stem Length UofM
- inches
- Stem Type
- Threaded stem
- Thread Length
- 1.5
- Tread Width
- 1.1
- Tread Width UofM
- inches
- Type
- (1) Swivel caster
- Wheel Bearing
- Precision Ball Bearing
- Wheel Diameter
- 1.4
- Wheel Diameter UofM
- inches
- Wheel Material
- Polyurethane Tread on Steel Core
- Wheel Size
- 35 mm x 27 mm (1.4" x 1.1")
- Wheel Type
- Polyurethane Tread on Steel Core
Description

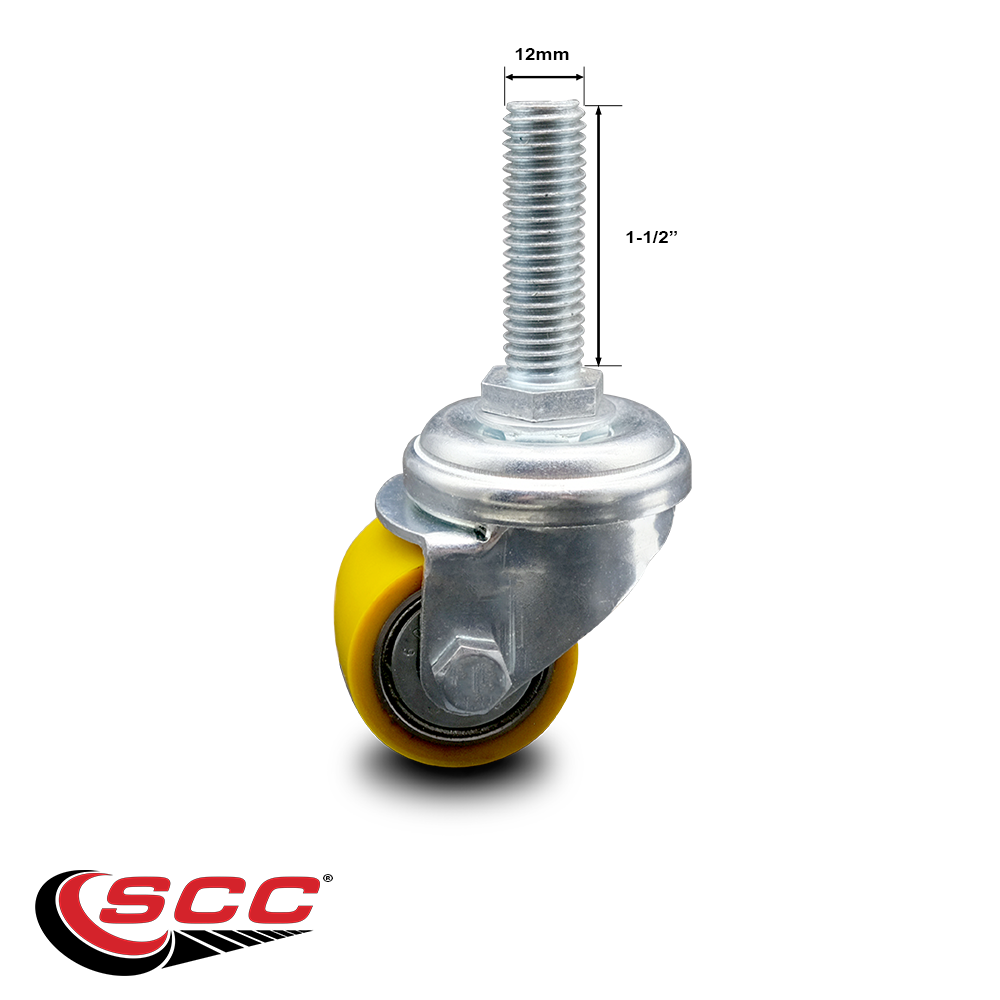

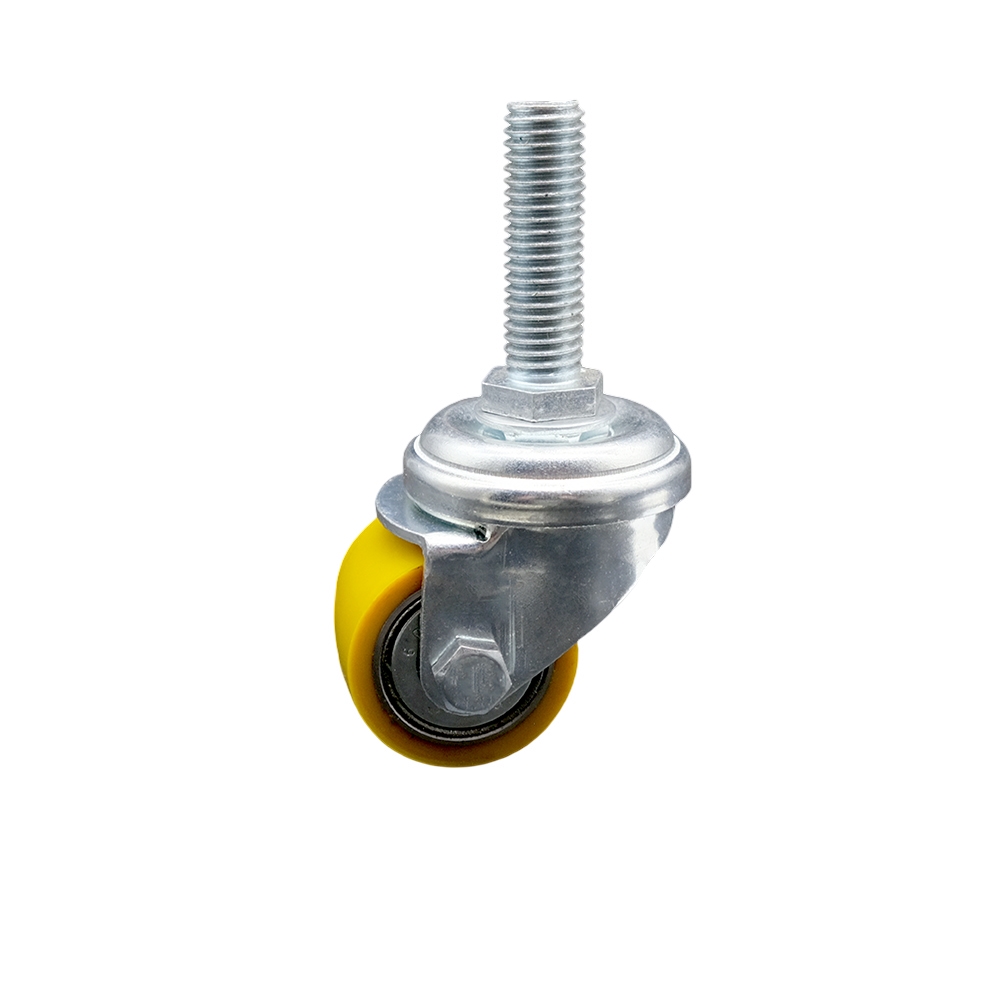

Listing is for one (1) Service Caster Series #04 heavy duty low profile business machine 12 mm diameter – 1.75 TPI x 1-1/2" long threaded stem swivel caster. Featuress a 35 mm (1.4") diameter by 27 mm (1.1") wide wheel, a 92 Shore A durometer polyurethane tread on steel core and precision ball bearings. Supports 220 pounds (lbs.) per caster. When searching for a reliable and durable solution for your business machine needs, consider Service Caster’s low profile polyurethane casters. The Service Caster 04 series is ideal for copiers, business machines, vending machines, displays, computer storage devices, and electronics cabinets. The low profile design allows for an unlimited amount of uses where casters are a necessity without raising the unit further than necessary. Featuring polyurethane tread wheels on a steel core, with precision ball bearings and a zinc plated finish provides durability under any condition. Mounting options include top plate, grip ring, standard and metric threaded stem sizes. Also, the innovative expanding stem, that can easily adapt to the inside diameter of an opening, allowing for a secure fit in round or square tubes. • Wheel: 92 Shore A Non-marking Floor Safe Polyurethane on Steel Core - 35 mm (1.4") diameter x 27 mm (1.1") tread width • Weight Capacity: 220 lbs Capacity/Caster • Threaded Stem Size: 12 mm diameter - 1.75 TPI x 1-1/2" long • Overall Height: 52 mm (2")
