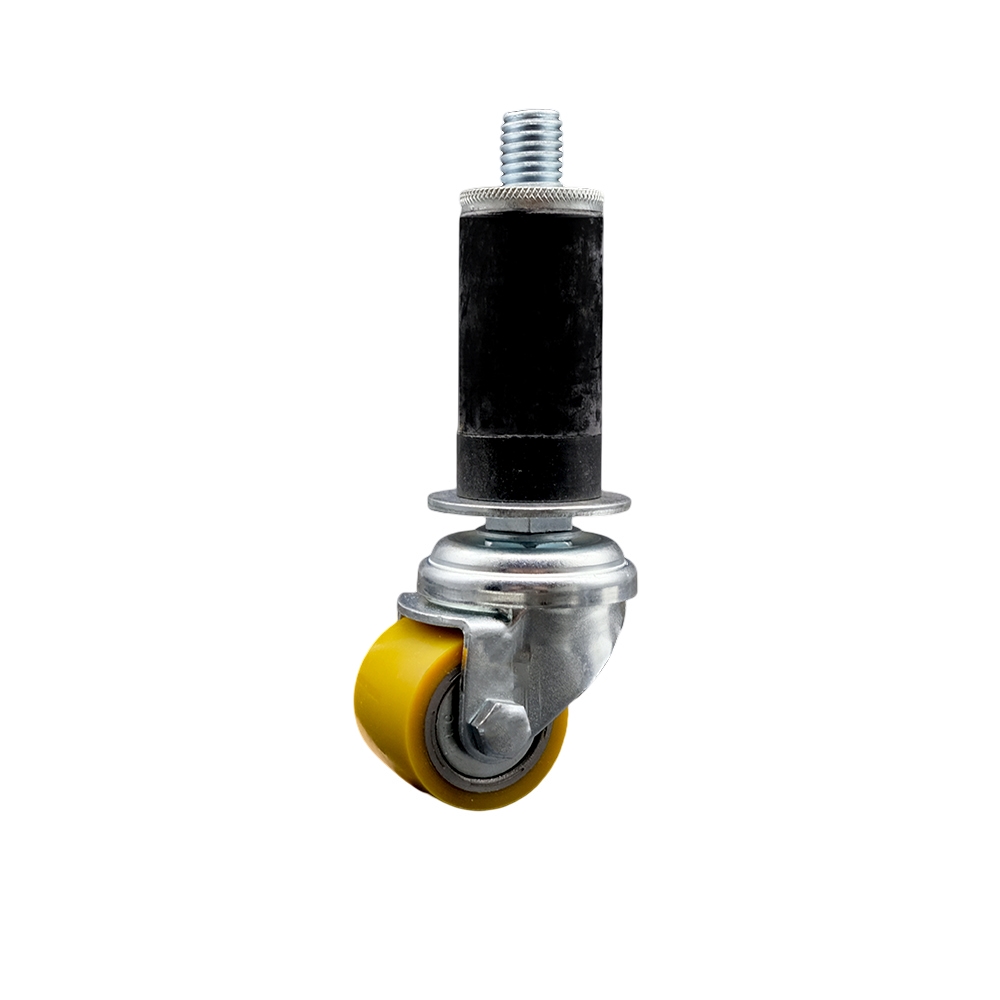

Low Profile Polyurethane Swivel Expanding Adapter Stem Caster w/35mm x 27mm Yellow Wheel and 1-1/8" Stem - 220 lbs Capacity/Caster - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #04

SKU

SCC-EX04S13810-PUB-118

Condition

new

Quantity

1

UPC

011586526105

Harmonized code

8302.20.0000

Dimensions (L x W x H)

5 x 5 x 5 in

Shipping weight

5 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Capacity

220

Color

1-1/8" Stem - No Brake - 1 PC

Durometer

92 Shore A

Heat Capacity

-13 degrees F to 158 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

52 mm (2")

Lower Temperature

-13

Lower Temperature UofM

F

Material Type

Polyurethane Tread on Steel Core

Maximum Temperature

158

Maximum Temperature UofM

F

Mounting Height

52 mm (2")

Mounting Type

Expanding Stem

Plating/Coating

Zinc Plated Finish

Casters Mounting Method

Stem

Locking Castersor Wheels

No

Swivels

Yes

Size

Expanding Stem - 35mm Wheel - Polyurethane

Stem

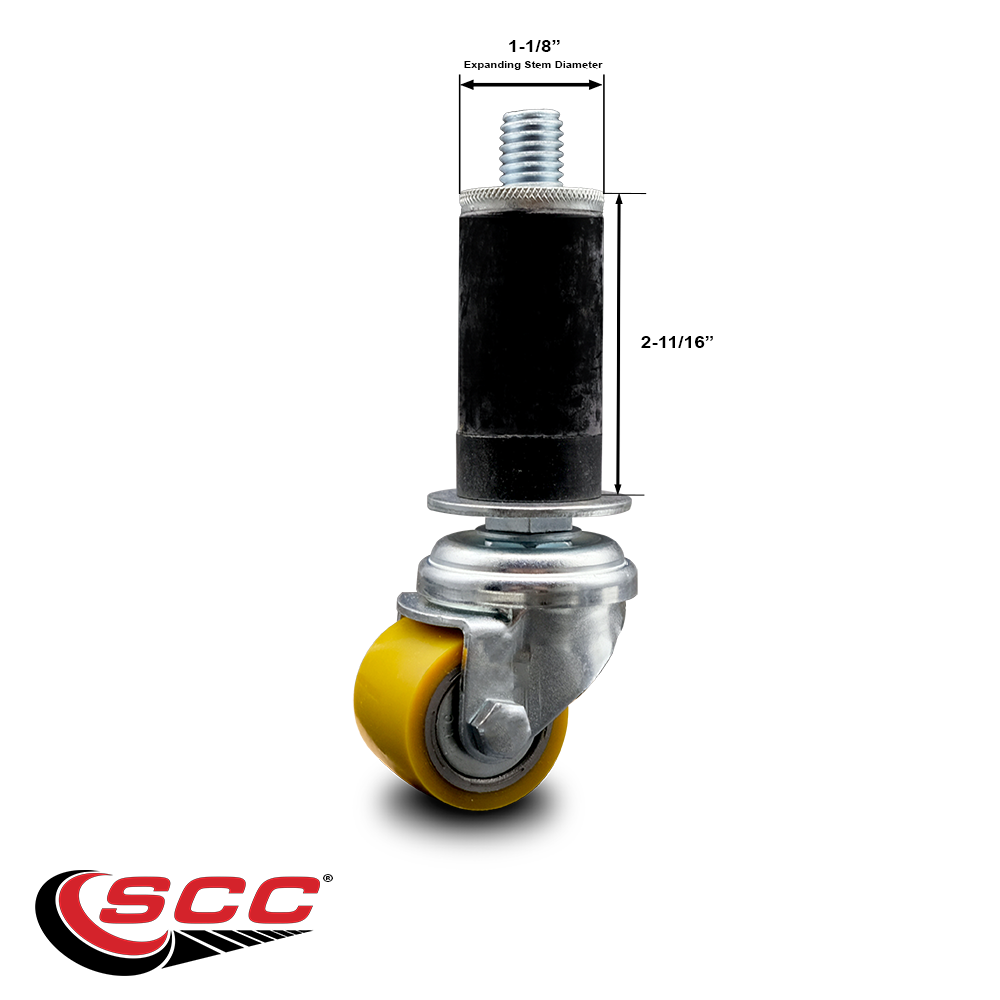

1-1/8" diameter x 2-11/16" length expanding adapter stem

Stem Diameter

1-1/8"

Stem Length

2.69

Stem Length UofM

inches

Stem Type

Expanding Stem

Tread Width

1.1

Tread Width UofM

inches

Type

(1) Swivel caster

Wheel Bearing

Precision Ball Bearing

Wheel Diameter

1.4

Wheel Diameter UofM

inches

Wheel Material

Polyurethane Tread on Steel Core

Wheel Size

35 mm x 27 mm (1.4" x 1.1")

Wheel Type

Polyurethane Tread on Steel Core

Description

Listing is for one (1) Service Caster Series #04 heavy duty low profile business machine 1-1/8" expanding stem swivel caster. Featuress a 35 mm (1.4") diameter by 27 mm (1.1") wide wheel, a 92 Shore A durometer polyurethane tread on steel core and precision ball bearings. Supports 220 pounds (lbs.) per caster. When searching for a reliable and durable solution for your business machine needs, consider Service Caster’s low profile polyurethane casters. The Service Caster 04 series is ideal for copiers, business machines, vending machines, displays, computer storage devices, and electronics cabinets. The low profile design allows for an unlimited amount of uses where casters are a necessity without raising the unit further than necessary. Featuring polyurethane tread wheels on a steel core, with precision ball bearings and a zinc plated finish provides durability under any condition. Mounting options include top plate, grip ring, standard and metric threaded stem sizes. Also, the innovative expanding stem, that can easily adapt to the inside diameter of an opening, allowing for a secure fit in round or square tubes. • Wheel: 92 Shore A Non-marking Floor Safe Polyurethane on Steel Core - 35 mm (1.4") diameter x 27 mm (1.1") tread width • Weight Capacity: 220 lbs Capacity/Caster • Expanding Stem Size: 1-1/8" diameter x 2-11/16" long • Overall Height: 52 mm (2")
