Browse / Parts & Components / Low Profile Polyurethane Swivel Expanding Adapter Stem Caster Set of 4 w/35mm x 27mm Yellow Wheels and 1-3/8" Stem - 880 lbs Total Capacity - Service Caster Brand
Low Profile Polyurethane Swivel Expanding Adapter Stem Caster Set of 4 w/35mm x 27mm Yellow Wheels and 1-3/8" Stem - 880 lbs Total Capacity - Service Caster Brand
Seller
Sign in to see direct contact details and connect off-platform, or message through CynchUp.
View seller's listingsDetails
- Manufacturer
- Service Caster
- Model
- Series #04
- SKU
- SCC-EX04S13810-PUB-138-4
- Condition
- new
- Quantity
- 4
- UPC
- 011586526150
- Harmonized code
- 8302.20.0000
- Dimensions (L x W x H)
- 5 x 5 x 5 in
- Shipping weight
- 6 lb
- Posted
- Sep 17, 2026, 7:00 PM CDT
Specifications
- Capacity
- 880
- Color
- 1-3/8" Stem - No Brakes - Set of 4
- Durometer
- 92 Shore A
- Heat Capacity
- -13 degrees F to 158 degrees F
- Item Dimension Unit of Measure
- inches
- Item Weight Unit of Measure
- pounds
- Load Height
- 52 mm (2")
- Lower Temperature
- -13
- Lower Temperature UofM
- F
- Material Type
- Polyurethane Tread on Steel Core
- Maximum Temperature
- 158
- Maximum Temperature UofM
- F
- Mounting Height
- 52 mm (2")
- Mounting Type
- Expanding Stem
- Plating/Coating
- Zinc Plated Finish
- Casters Mounting Method
- Stem
- Locking Castersor Wheels
- No
- Swivels
- Yes
- Size
- Expanding Stem - 35mm Wheel - Polyurethane
- Stem
- 1-3/8" diameter x 2-11/16" length expanding adapter stem
- Stem Diameter
- 1-3/8"
- Stem Length
- 2.69
- Stem Length UofM
- inches
- Stem Type
- Expanding Stem
- Tread Width
- 1.1
- Tread Width UofM
- inches
- Type
- (4) Swivel casters
- Wheel Bearing
- Precision Ball Bearing
- Wheel Diameter
- 1.4
- Wheel Diameter UofM
- inches
- Wheel Material
- Polyurethane Tread on Steel Core
- Wheel Size
- 35 mm x 27 mm (1.4" x 1.1")
- Wheel Type
- Polyurethane Tread on Steel Core
Description

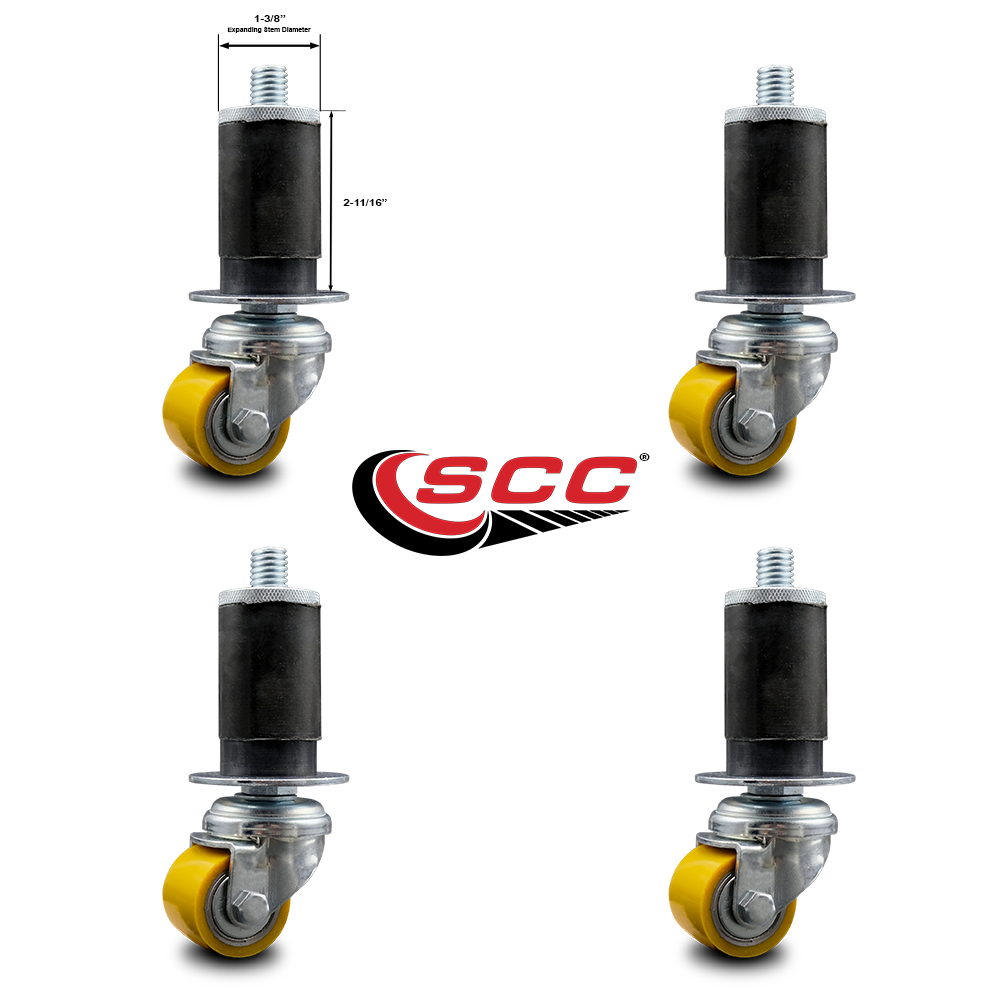

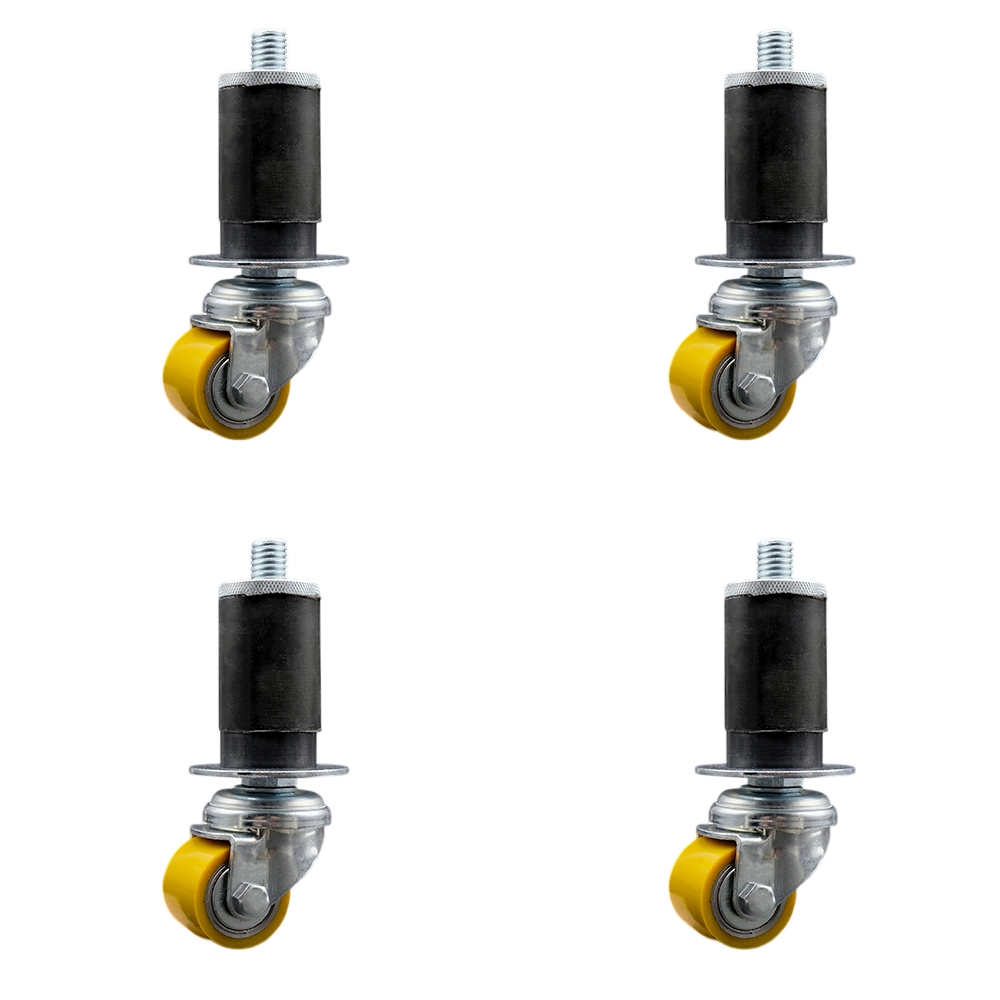

Listing is for four (4) Service Caster Series #04 heavy duty low profile business machine 1-3/8" expanding stem swivel casters. Features a 35 mm (1.4") diameter by 27 mm (1.1") wide wheel, a 92 Shore A durometer polyurethane tread on steel core and precision ball bearings. Supports 880 pounds (lbs.) (220 lbs./caster). When searching for a reliable and durable solution for your business machine needs, consider Service Caster’s low profile polyurethane casters. The Service Caster 04 series is ideal for copiers, business machines, vending machines, displays, computer storage devices, and electronics cabinets. The low profile design allows for an unlimited amount of uses where casters are a necessity without raising the unit further than necessary. Featuring polyurethane tread wheels on a steel core, with precision ball bearings and a zinc plated finish provides durability under any condition. Mounting options include top plate, grip ring, standard and metric threaded stem sizes. Also, the innovative expanding stem, that can easily adapt to the inside diameter of an opening, allowing for a secure fit in round or square tubes. • Wheel: 92 Shore A Non-marking Floor Safe Polyurethane on Steel Core - 35 mm (1.4") diameter x 27 mm (1.1") tread width • Weight Capacity: 880 lbs Total Capacity (220 lbs/Caster) • Expanding Stem Size: 1-3/8" diameter x 2-11/16" long • Overall Height: 52 mm (2")
