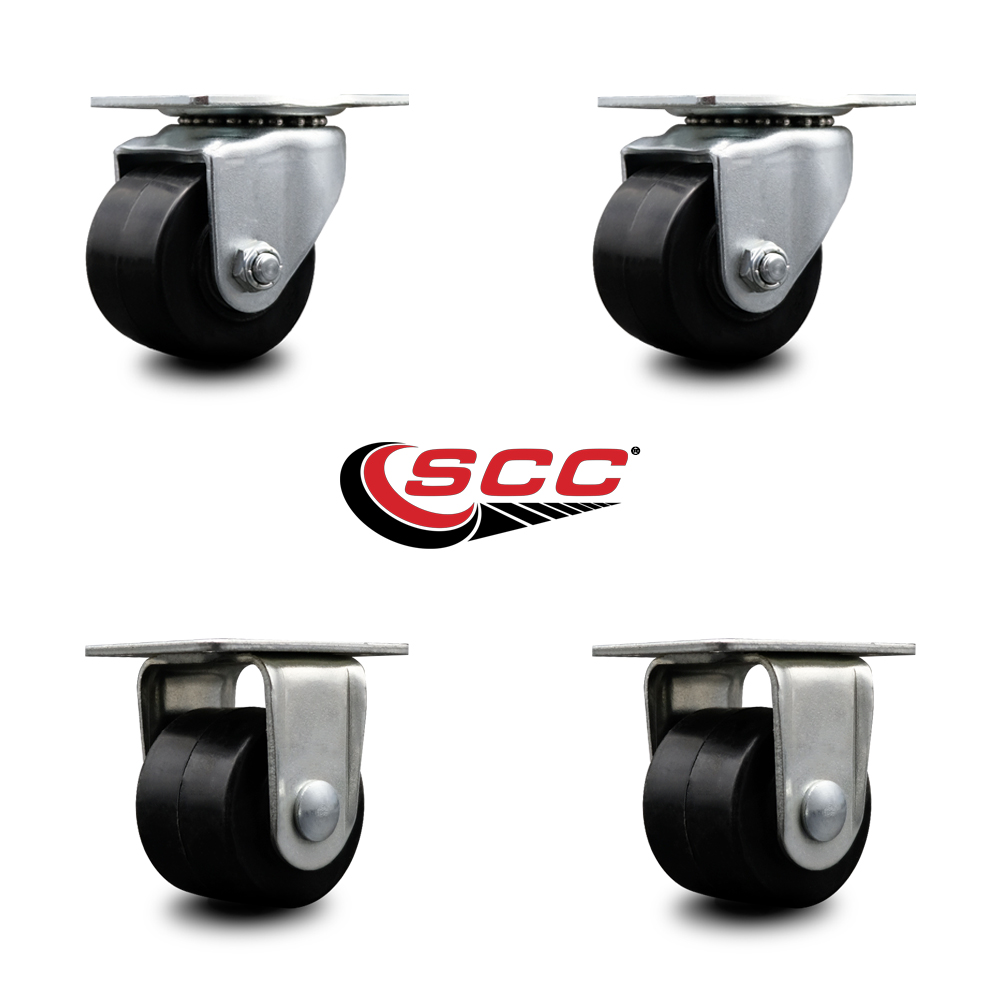

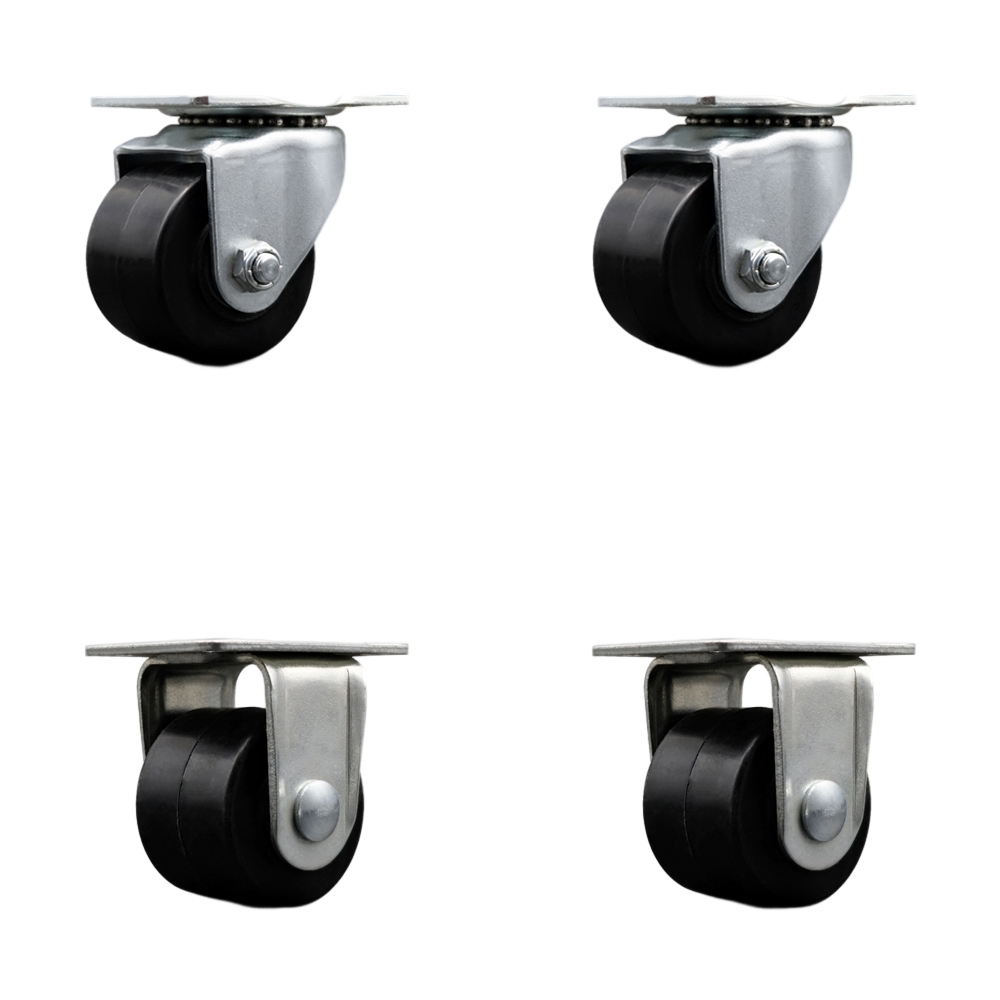

Low Profile Business Machine Top Plate Caster Set- 2-1/2 Inch by 1-3/4 Inch Polyolefin Wheel-Roller Bearing-1,600 lbs. Total Capacity-Includes 2 Swivel Casters and 2 Rigid Casters-Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #04

SKU

SCC-04S25175-POR-2-R-2

Condition

new

Quantity

4

UPC

734005083187

Harmonized code

8302.20.0000

Dimensions (L x W x H)

5 x 5 x 5 in

Shipping weight

8 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

5/16" (hardware not included)

Capacity

1600

Color

2 Swivel - 2 Rigid - Black

Durometer

70D

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

3-5/16"

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Polyolefin

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

3-5/16"

Mounting Type

Top Plate

Plating/Coating

Zinc Plated Finish

Casters Mounting Method

Plate

Swivels

Yes

Size

Top Plate - 2-1/2" Wheel - Polyolefin

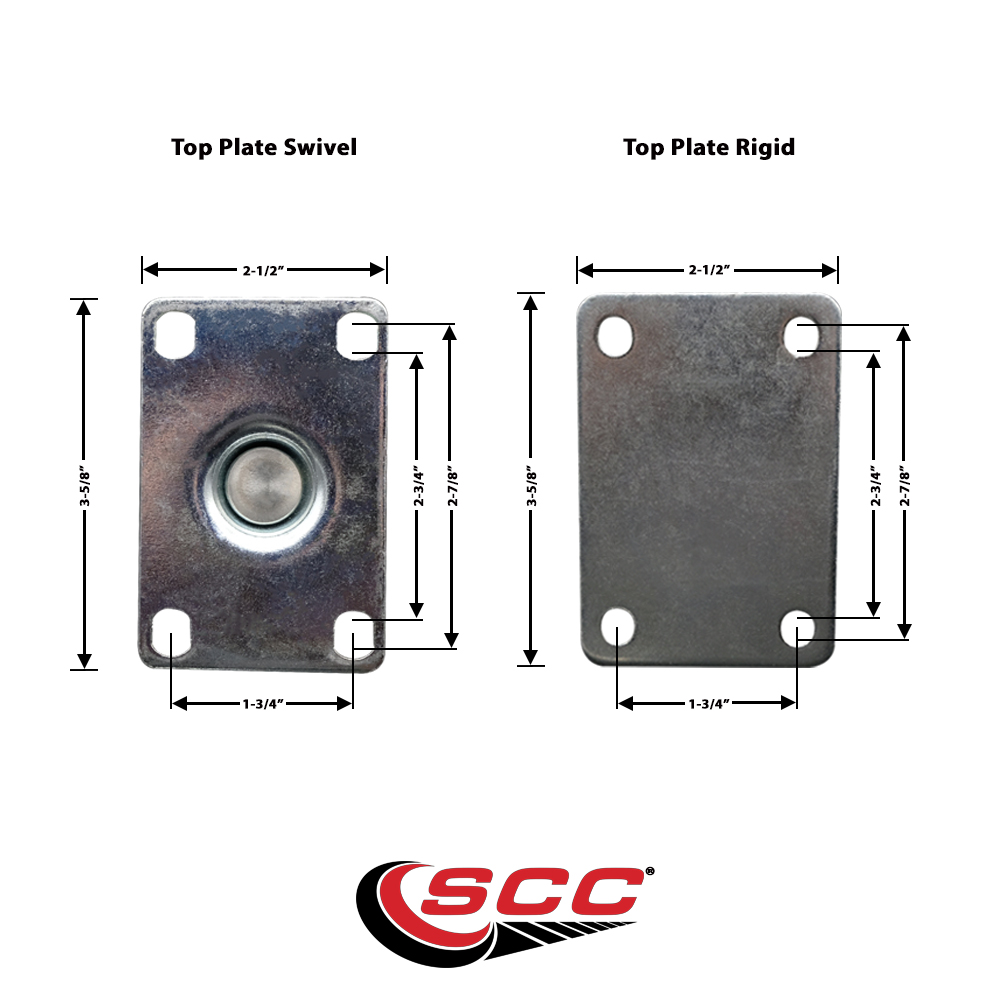

Top Plate Size

2-1/2" x 3-5/8"

Tread Width

1.75

Tread Width UofM

inches

Type

(2) swivel casters & (2) rigid casters

Wheel Bearing

Roller Bearing

Wheel Diameter

2.5

Wheel Diameter UofM

inches

Wheel Material

Polyolefin

Wheel Size

2-1/2" x 1-3/4"

Wheel Type

Polyolefin

Description

Listing is for four (4) Service Caster Series #04 heavy duty low profile business machine top plate casters, two (2) swivel and two (2) rigid casters. Features a 2-1/2" diameter by 1-3/4" wide polyolefin wheel. Zinc plated finish on metal parts. Wheel rotates on roller bearing. Set of 4 supports 1,600 pounds (lbs.) (400 lbs./caster). When searching for a reliable and durable solution for your business machine needs, consider Service Caster’s low profile casters. The Service Caster 04 series is ideal for copiers, business machines, vending machines, displays, computer storage devices, and electronics cabinets. The low profile design allows for an unlimited amount of uses where casters are a necessity without raising the unit further than necessary. Mounting options include top plate, grip ring, standard and metric threaded stem sizes. Also, the innovative expanding stem, that can easily adapt to the inside diameter of an opening, allowing for a secure fit in round or square tubes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Wheel: 2-1/2" - Polyolefin • Weight Capacity: 400 lbs./caster • Top Plate Size: 2-1/2" x 3-5/8" • Bolt Hole Pattern: 1-3/4" x 2-3/4 to 2-7/8
