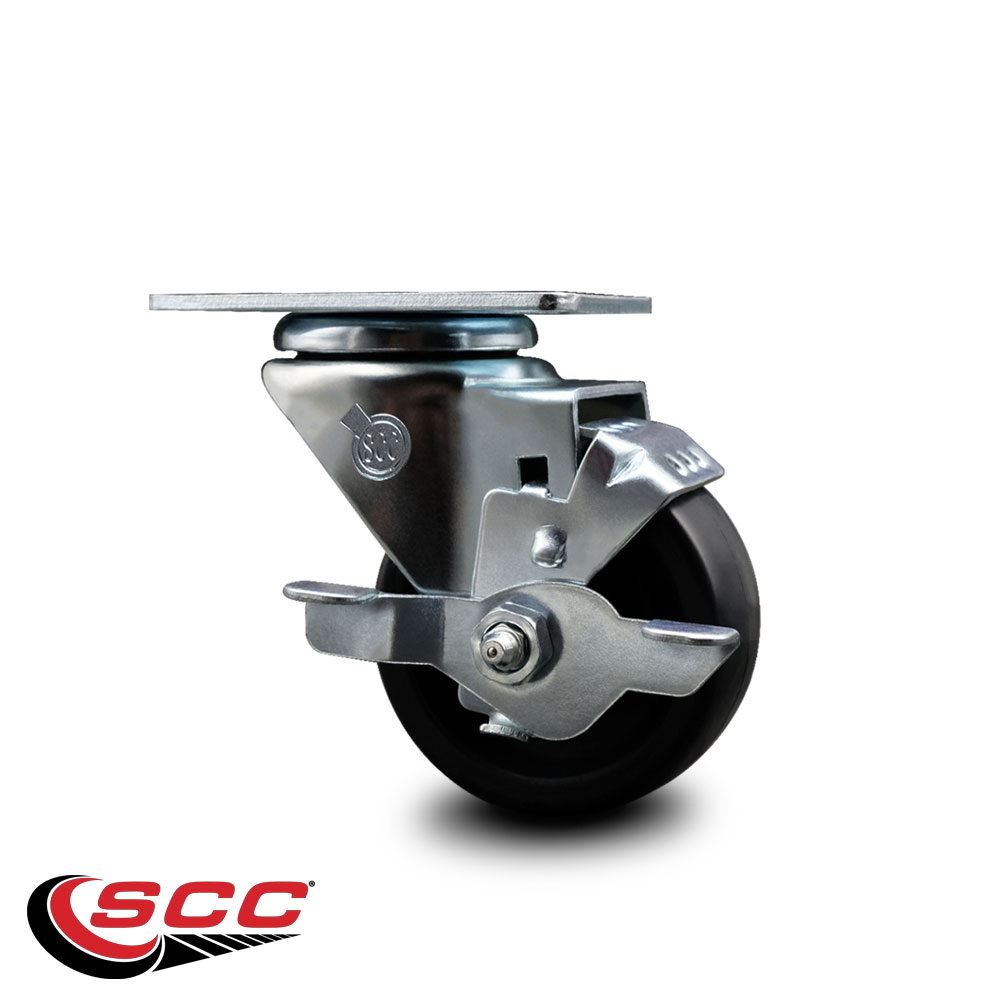

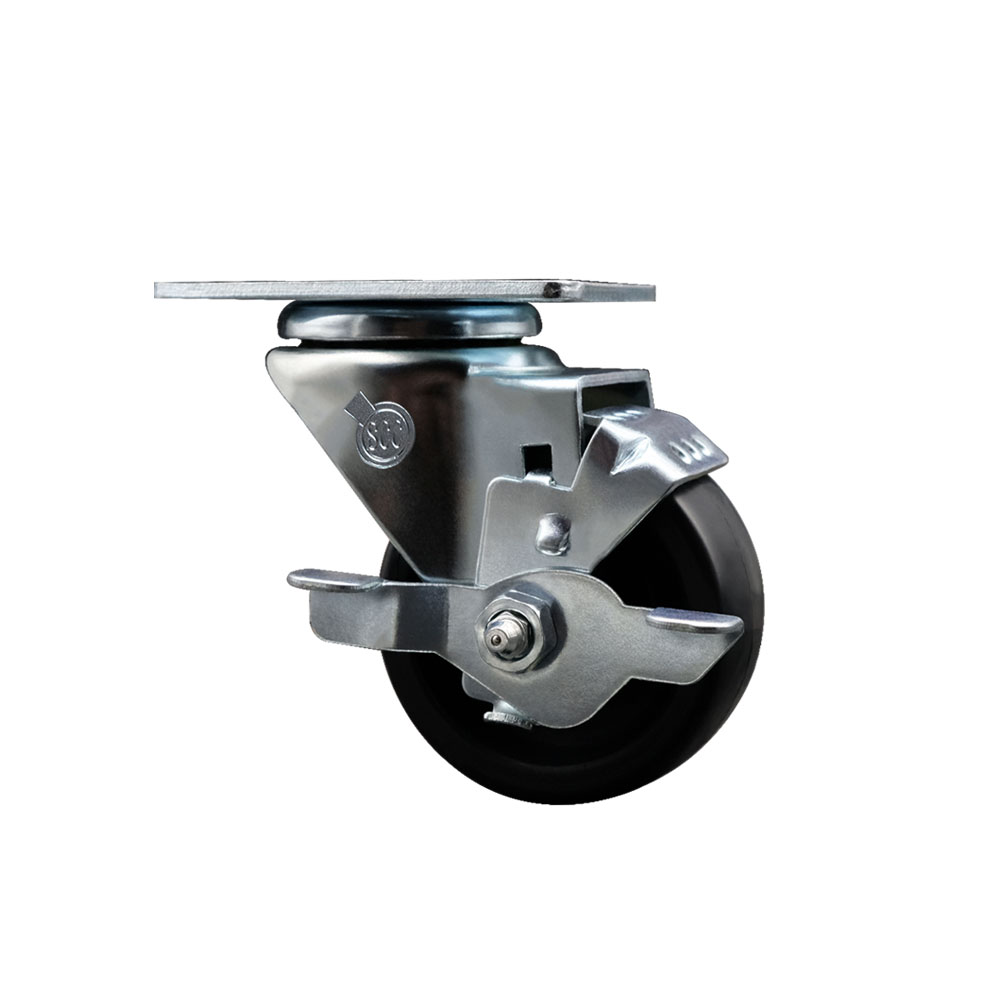

Browse / Parts & Components / HPMCP00175 Delfield 3 Inch Swivel Caster with Brake - Light Duty Replacement – Polyolefin Wheel - Service Caster Brand
HPMCP00175 Delfield 3 Inch Swivel Caster with Brake - Light Duty Replacement – Polyolefin Wheel - Service Caster Brand
Seller
Sign in to see direct contact details and connect off-platform, or message through CynchUp.
View seller's listingsDetails
- Manufacturer
- Service Caster
- Model
- Series #20
- SKU
- DEL-SCC-20S314-POS-TLB
- Condition
- new
- Quantity
- 1
- UPC
- 734005218923
- Harmonized code
- 8302.20.0000
- Dimensions (L x W x H)
- 5 x 5 x 5 in
- Shipping weight
- 3 lb
- Posted
- Sep 17, 2026, 7:00 PM CDT
Specifications
- Bolt Pattern
- 1-3/4" x 2-7/8" to 3"
- Bolt Size
- 5/16" (hardware not included)
- Capacity
- 250
- Color
- Swivel - Top Lock Brake - Top Plate
- Durometer
- 70D
- Heat Capacity
- -45 degrees F to 180 degrees F
- Item Dimension Unit of Measure
- inches
- Item Weight Unit of Measure
- pounds
- Load Height
- 4-1/8"
- Locking Type
- Top lock brake
- Lower Temperature
- -45
- Lower Temperature UofM
- F
- Material Type
- Polyolefin
- Maximum Temperature
- 180
- Maximum Temperature UofM
- F
- Mounting Height
- 4-1/8"
- Mounting Type
- Top Plate
- Plating/Coating
- Bright Zinc Plated Finish
- Casters Mounting Method
- Plate
- Locking Castersor Wheels
- Yes
- Swivels
- Yes
- Size
- 3" Polyolefin Wheel
- Top Plate
- 2-1/2" x 3-5/8"
- Top Plate Size
- 2-1/2" x 3-5/8"
- Tread Width
- 1.25
- Tread Width UofM
- inches
- Type
- (1) swivel caster w/top lock brake
- Wheel Bearing
- Plain Bore
- Wheel Diameter
- 3
- Wheel Diameter UofM
- inches
- Wheel Material
- Polyolefin
- Wheel Size
- 3" x 1-1/4"
- Wheel Type
- Polyolefin
Description
Listing is for one (1) Service Caster Series #20 swivel caster with a top lock brake and 3" diameter by 1-1/4" wide polyolefin wheel capable of supporting 250 lbs. per caster. HPMCP00175 replacement part fits Delfield models MS-8-1LH, MS-8-AH, MS-8-ALH, MS-8-BH, MS-8-BLH, MS-8-CH, MS-8-CLH, MS-8-ELH, MS-8-FH and MS-8-FLH. When searching for a reliable and durable solution to your Delfield replacement caster needs, consider Service Caster Series 20 top plate polyolefin wheel casters. The Service Caster Series #20 features polyolefin wheels that have a high resistance to shock and impact damage while also being non-marking protecting floors. Finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway, these Service Caster high performance Delfield replacement casters offer polyolefin wheels that are best used on smooth, flat, and clear industrial or commercial settings where materials may be stationary for long periods. These versatile casters are ideal for a wide range of applications. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Compatible Models: MS-8-1LH, MS-8-AH, MS-8-ALH, MS-8-BH, MS-8-BLH, MS-8-CH, MS-8-CLH, MS-8-ELH, MS-8-FH and MS-8-FLH • Weight Capacity: 250 lbs. Capacity Per Caster • HARDWARE NOT INCLUDED • Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
