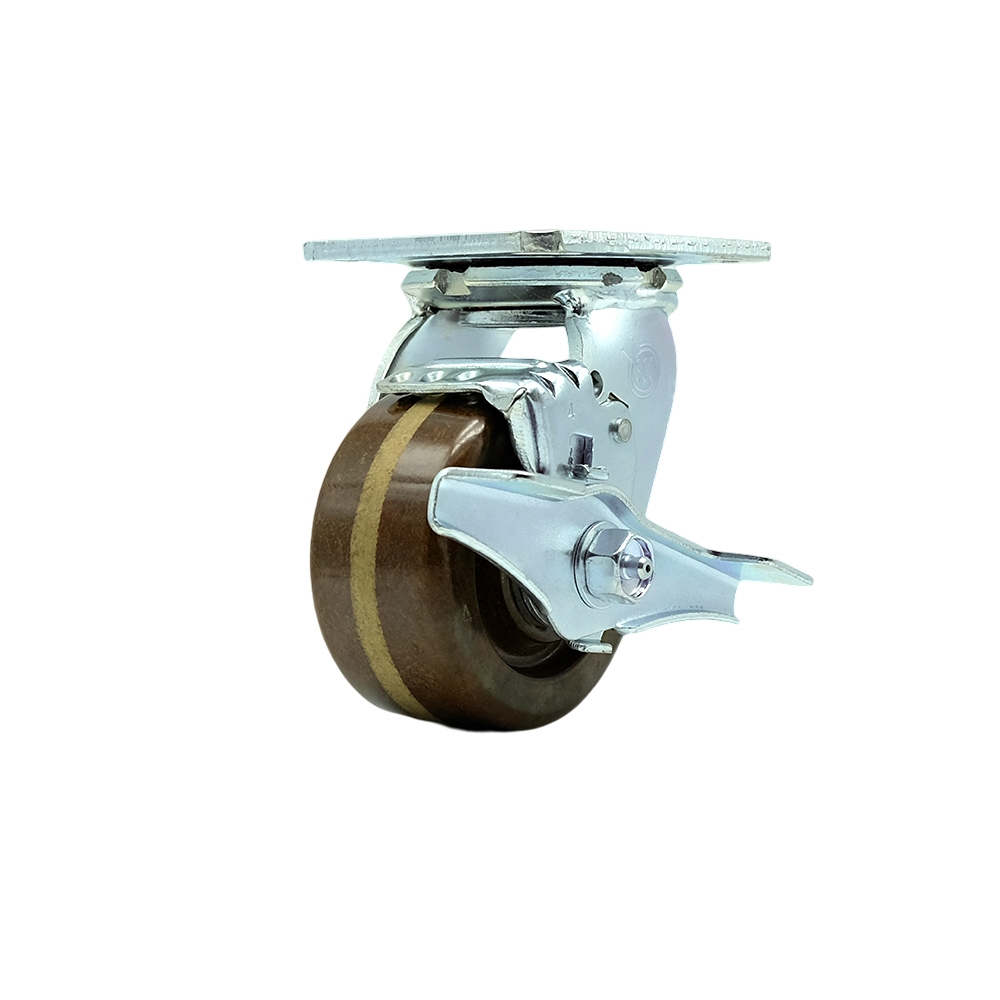

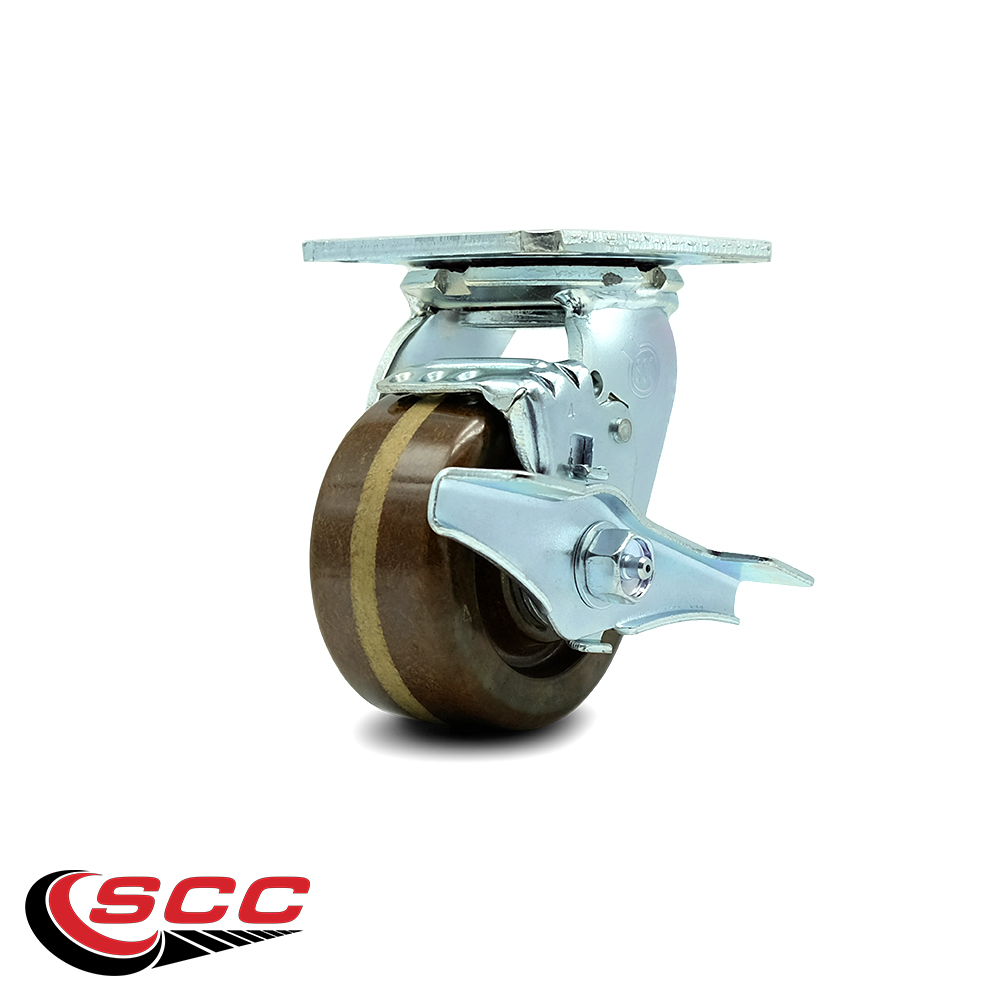

High Temperature Phenolic Swivel Top Plate Heavy Duty Caster with 4 Inch Wheel and Top Lock Brake – 800 lbs. Capacity/Caster - Service Caster Brand
Seller
Sign in to see direct contact details and connect off-platform, or message through CynchUp.
View seller's listingsDetails
- Manufacturer
- Service Caster
- Model
- Series #30
- SKU
- SCC-30CS420-PHRHT-TLB
- Condition
- new
- Quantity
- 1
- UPC
- 670533875989
- Dimensions (L x W x H)
- 8 x 8 x 8 in
- Shipping weight
- 7 lb
- Posted
- Sep 17, 2026, 7:00 PM CDT
Specifications
- Bolt Size
- 3/8" (hardware not included)
- Capacity
- 800
- Color
- Swivel - Top Lock Brake - Brown
- Durometer
- 90D
- Feature
- Top lock brake
- Heat Capacity
- 475 degrees F continuous usage and 525 degrees F intermittent usage
- Item Weight Unit of Measure
- pounds
- Load Height
- 5-5/8"
- Locking Type
- Top lock brake
- Lower Temperature
- -45
- Lower Temperature UofM
- F
- Maximum Temperature
- 525
- Maximum Temperature UofM
- F
- Mounting Height
- 5-5/8"
- Mounting Type
- Top Plate
- Plating/Coating
- Bright Zinc Plated Finish
- Casters Mounting Method
- Plate
- Locking Castersor Wheels
- Yes
- Swivels
- Yes
- Size
- 4" Wheel
- Top Plate Size
- 4" x 4-1/2"
- Tread Width
- 2
- Tread Width UofM
- inches
- Type
- Swivel caster w/top lock brake
- Wheel Bearing
- Roller Bearing
- Wheel Diameter
- 4
- Wheel Diameter UofM
- inches
- Wheel Material
- High Temperature Phenolic
- Wheel Size
- 4" x 2"
- Wheel Type
- High Temperature Phenolic
Description

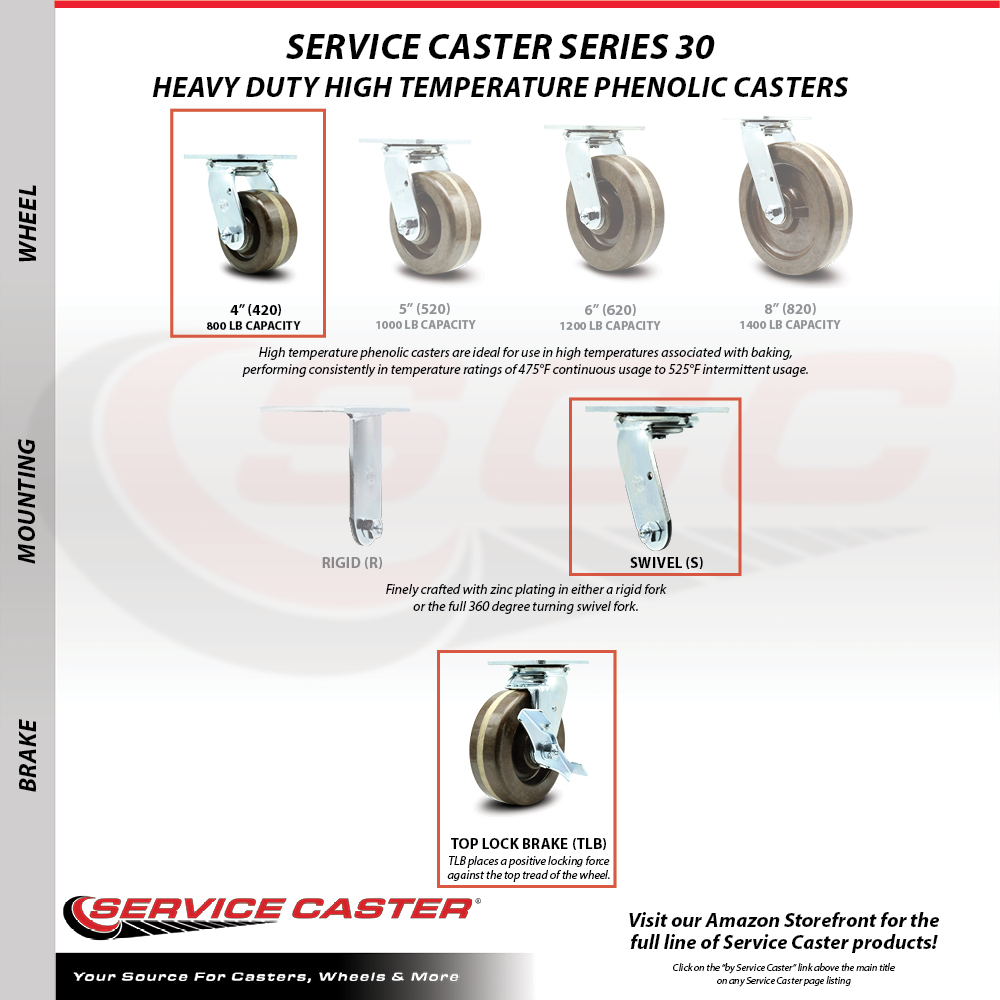

Listing is for one (1) Service Caster Series #30 swivel caster with a 4" diameter by 2" wide brown high temperature phenolic wheel and a top locking brake capable of supporting 800 lbs. per caster.When searching for a reliable and durable solution to your caster needs, consider Service Caster Series 30 top plate high temp phenolic wheel casters. The Service Caster Series #30 is ideal for autoclaves, bakery ovens and powder coating facilities. The zinc plated finish provides durability under any condition, and the high temp phenolic wheels- quieter than comparable steel wheels- have a high resistance to impact damage, providing protection for floors in commercial and industrial settings. This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 475°F continuous usage to 525°F intermittent usage. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #30 High Temperature Phenolic casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height. • Weight Capacity: 4": 800 lbs Capacity/Caster, 5": 1000 lbs Capacity/Caster, 6": 1200 lbs. Capacity/Caster, and 8": 1250 lbs Capacity/Caster • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. • Brake options include a top lock brake (TLB) and a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
