High Temperature Phenolic Swivel Bolt Hole Caster Set of 4 w/3" x 1.25" Brown Wheels - Includes 4 Swivel with Total Lock Brakes - 1200 lbs Total Capacity - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

SCC-BHTTL20S314-PHSHT-4

Condition

new

Quantity

4

UPC

011586532847

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

7 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Capacity

300

Color

4 Swivel - Total Lock Brakes - Brown

Durometer

90D

Feature

Total lock brake

Heat Capacity

475 degrees F continuous usage and 525 degrees F intermittent usage

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

4-1/8"

Locking Type

Total lock brake

Lower Temperature

475

Lower Temperature UofM

F

Material Type

High Temperature Phenolic

Maximum Temperature

525

Maximum Temperature UofM

F

Mounting Height

4-1/8"

Mounting Type

Bolt Hole

Plating/Coating

Bright Zinc Plated Finish

Locking Castersor Wheels

Yes

Swivels

Yes

Size

3" Wheel

Tread Width

1.25

Tread Width UofM

inches

Type

(4) swivel casters w/ total lock brakes

Wheel Bearing

Plain Bore

Wheel Diameter

3

Wheel Diameter UofM

inches

Wheel Material

High Temperature Phenolic

Wheel Size

3" x 1-1/4"

Wheel Type

High Temperature Phenolic

Description

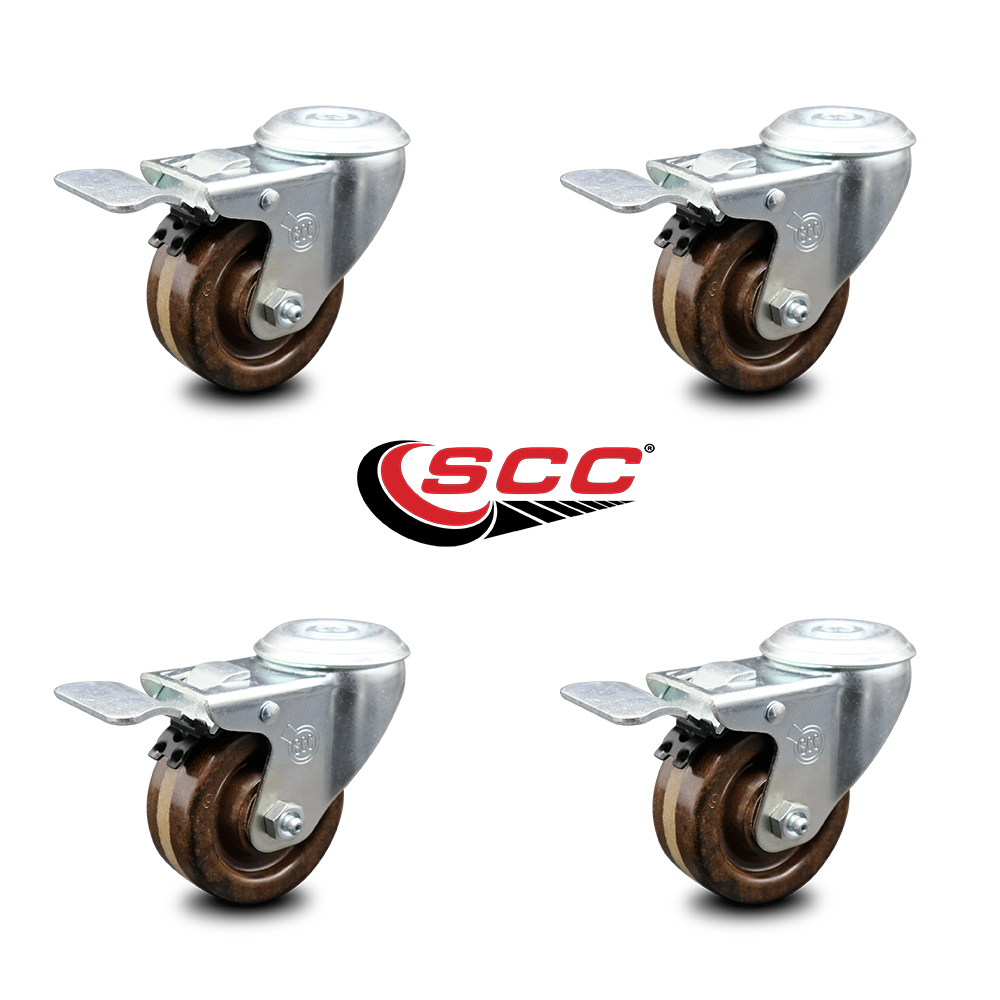

Listing is for a set of four (4) Service Caster Series #20 casters, four (4) swivel bolt hole casters with total lock brakes, 3” diameter by 1-1/4” wide high temperature phenolic wheels. Supports a total weight of 1,200lbs (300lbs/per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 sleeve bearing high temperature phenolic casters. The Service Caster Series #20 is ideal for bakery racks, light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, and the high temp phenolic wheels- quieter than comparable steel wheels- have a high resistance to impact damage, providing protection for floors in commercial and industrial settings. Sleeve bearings provide a metal sleeve inserted in a wheel to rest directly on the axle. This option is only recommended when rolling ease is less critical. This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 475°F continuous usage to 525°F intermittent usage. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #20 High Temperature Phenolic casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6" wheel: 7-1/8" mounting height. • Weight Capacity: 3", 4", 5", and 6": 300 lbs Capacity/Caster • All casters feature a 1/2” diameter bolt hole. Bolt hole casters have a hole in the rivet which can accept a bolt or a customized stem for any type of mounting requirement. • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
