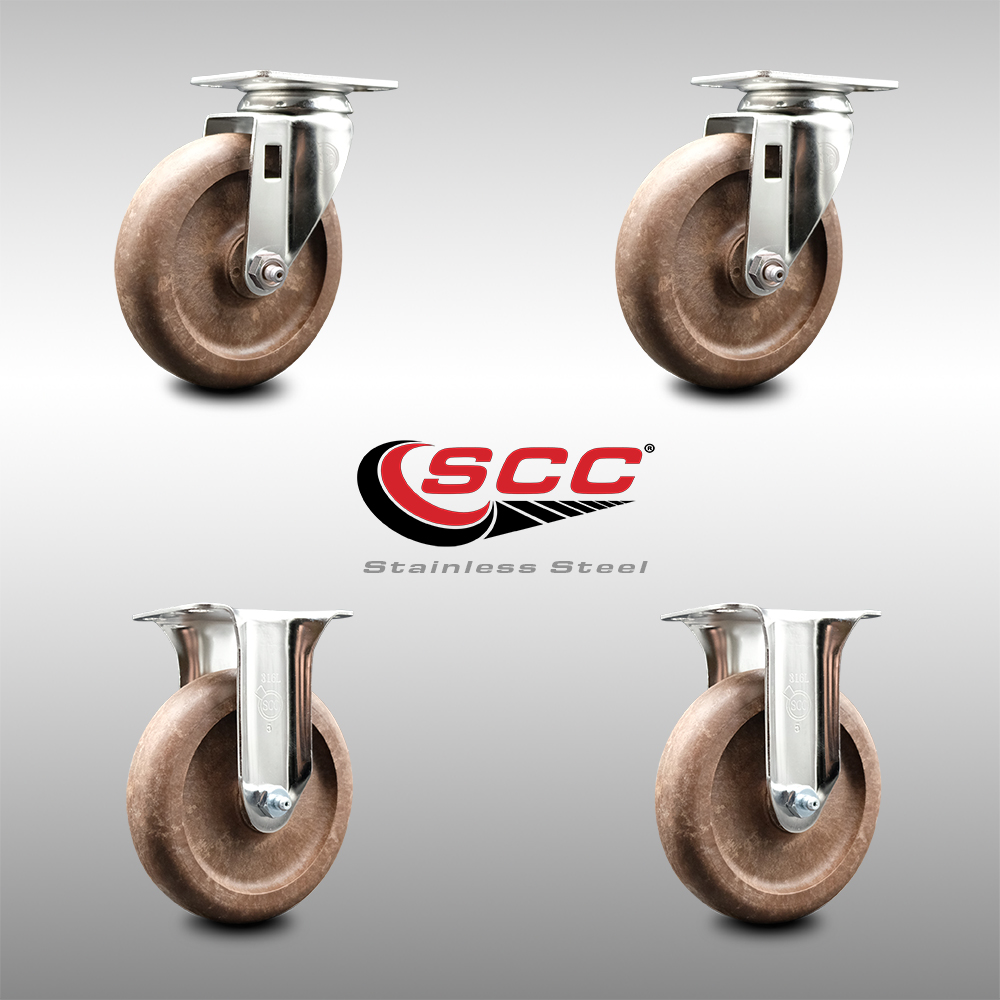

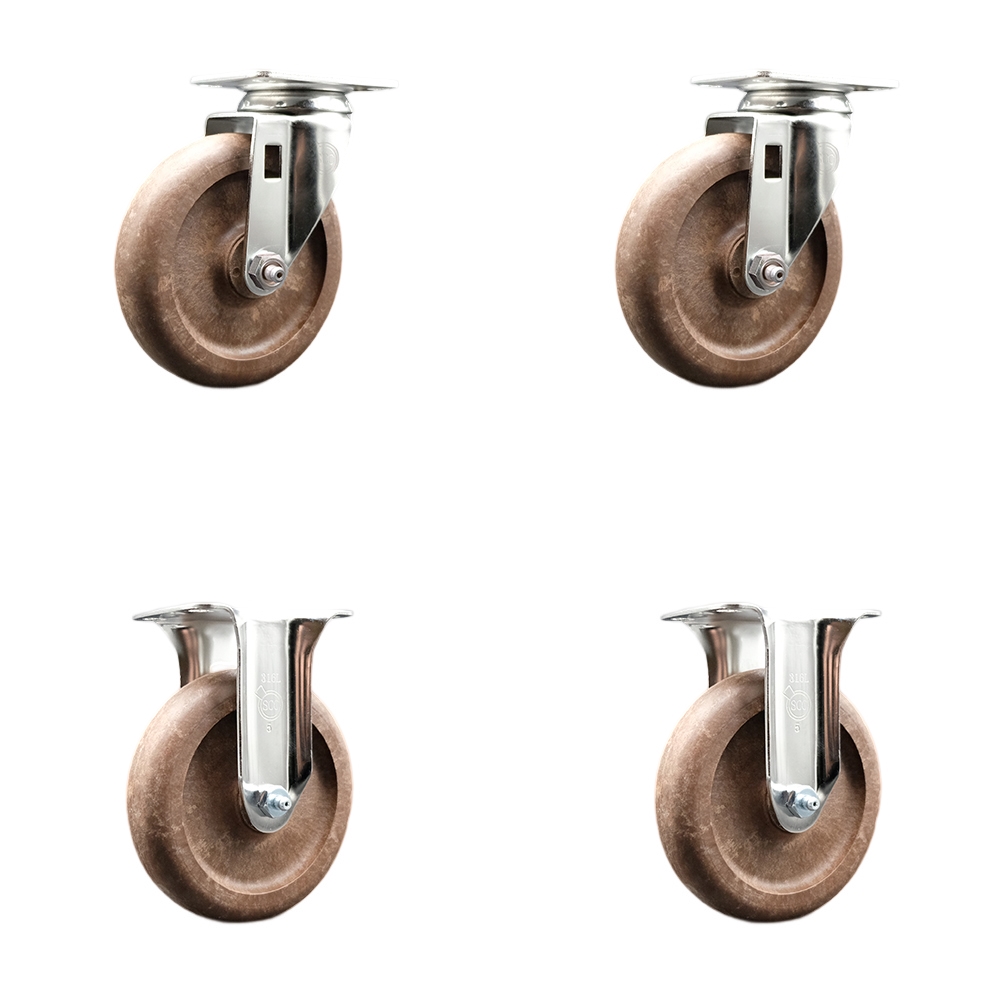

High Temp Glass Filled Nylon Swivel Top Plate Caster Set of 4 with 5 Inch Brown Caster Wheels - 316 Stainless Steel Casters - Includes 2 Swivel Casters and 2 Rigid Casters - Service Caster Brand
Seller
Sign in to see direct contact details and connect off-platform, or message through CynchUp.
View seller's listingsDetails
- Manufacturer
- Service Caster
- Model
- Series #20
- SKU
- SCC-SS31620S514-GFNSHT-2-R-2
- Condition
- new
- Quantity
- 4
- UPC
- 011586614154
- Dimensions (L x W x H)
- 8 x 8 x 8 in
- Shipping weight
- 10 lb
- Posted
- Sep 17, 2026, 7:00 PM CDT
Specifications
- Bolt Pattern
- 1-3/4" x 2-7/8" to 3"
- Bolt Size
- 5/16" (hardware not included)
- Capacity
- 1400
- Color
- 2 Swivel - 2 Rigid
- Durometer
- 85D
- Heat Capacity
- -45 degrees F to 550 degrees F
- Item Dimension Unit of Measure
- inches
- Item Weight Unit of Measure
- pounds
- Load Height
- 6-1/8"
- Lower Temperature
- -45
- Lower Temperature UofM
- F
- Material Type
- Glass Filled Nylon
- Maximum Temperature
- 550
- Maximum Temperature UofM
- F
- Mounting Height
- 6-1/8"
- Mounting Type
- Top Plate
- Plating/Coating
- 316 Polished Stainless Steel
- Casters Mounting Method
- Plate
- Swivels
- Yes
- Size
- 5" Wheel
- Stain Resistant
- Yes
- Top Plate Size
- 2-1/2" x 3-5/8"
- Tread Width
- 1.25
- Tread Width UofM
- inches
- Type
- (2) swivel casters & (2) rigid casters
- Wheel Bearing
- Plain Bore
- Wheel Diameter
- 5
- Wheel Diameter UofM
- inches
- Wheel Material
- Glass Filled Nylon
- Wheel Size
- 5" x 1-1/4"
- Wheel Type
- Glass Filled Nylon
Description
Listing is for a a set of four (4) Service Caster Series #20 stainless steel casters, two (2) swivel and two (2) rigid casters, with 5" diameter by 1-1/4" wide brown glass filled nylon wheels capable of supporting a total weight of 1,400 lbs. (350 lbs./caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s 316 stainless steel glass filled nylon casters. SS316 casters are ideal for light and medium duty material handling, carts, equipment, and shop projects. Built with 316 stainless steel, which contains additional molybdenum and nickel content, making it more corrosion resistant than standard 304 stainless steel. The glass filled nylon wheels provide very low rolling resistance, show a high resistance to many aggressive substances, will not flat spot, and under normal operating conditions are maintenance free. Resistant to most chemical and oils, these glass filled nylon wheels will keep you safely moving forward. Mounting options include top plate, bolt hole, expanding stem and standard and metric threaded stem sizes. • These Service Caster Series #20 316 Stainless Steel High Temperature Glass Filled Nylon casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height. • Weight Capacity: 350 lbs Capacity/Caster • Top plate measures at 2-1/2" x 3-5/8" with a bolt hole pattern of 1-3/4" x 2-7/8" to 3" and can either be bolted or welded on. • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
