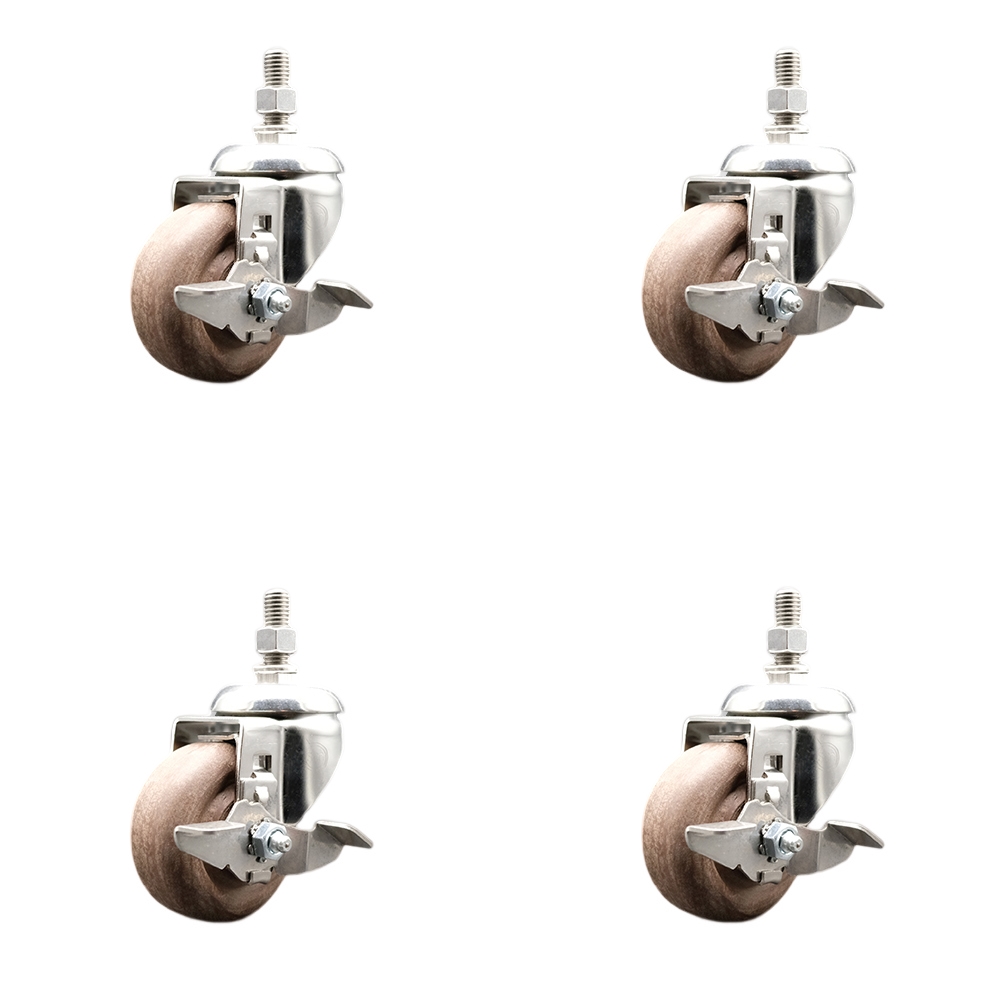

High Temp Glass Filled Nylon Swivel Stem Caster Set of 4 with 3 Inch Caster Wheels - 1/2" Threaded Stems -316 Stainless Steel Casters-Includes 4 Swivel Casters with Top Lock Brake-Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

SCC-SS316TS20S314-GFNSHT-TLB-121315-4

Condition

new

Quantity

4

UPC

734005020069

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

8 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Capacity

1400

Color

4 Swivel - Top Lock Brakes - 1/2" Stem

Durometer

85D

Feature

Top lock brake

Heat Capacity

-45 degrees F to 550 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

4-1/8"

Locking Type

Top lock brake

Lower Temperature

-45

Lower Temperature UofM

F

Material Type

Glass Filled Nylon

Maximum Temperature

550

Maximum Temperature UofM

F

Mounting Height

4-1/8"

Mounting Type

Threaded Stem

Plating/Coating

316 Polished Stainless Steel

Casters Mounting Method

Stem

Locking Castersor Wheels

Yes

Swivels

Yes

Size

3" Wheel

Stain Resistant

Yes

Stem

1/2"-13 x 1-1/2" Threaded Stem

Stem Diameter

1/2"

Stem Length

1.5

Stem Length UofM

inches

Stem Type

Threaded Stem

Thread Length

1.5

Tread Width

1.25

Tread Width UofM

inches

Type

(4) swivel casters w/ top lock brakes

Wheel Bearing

Plain Bore

Wheel Diameter

3

Wheel Diameter UofM

inches

Wheel Material

Glass Filled Nylon

Wheel Size

3" x 1-1/4"

Wheel Type

Glass Filled Nylon

Description

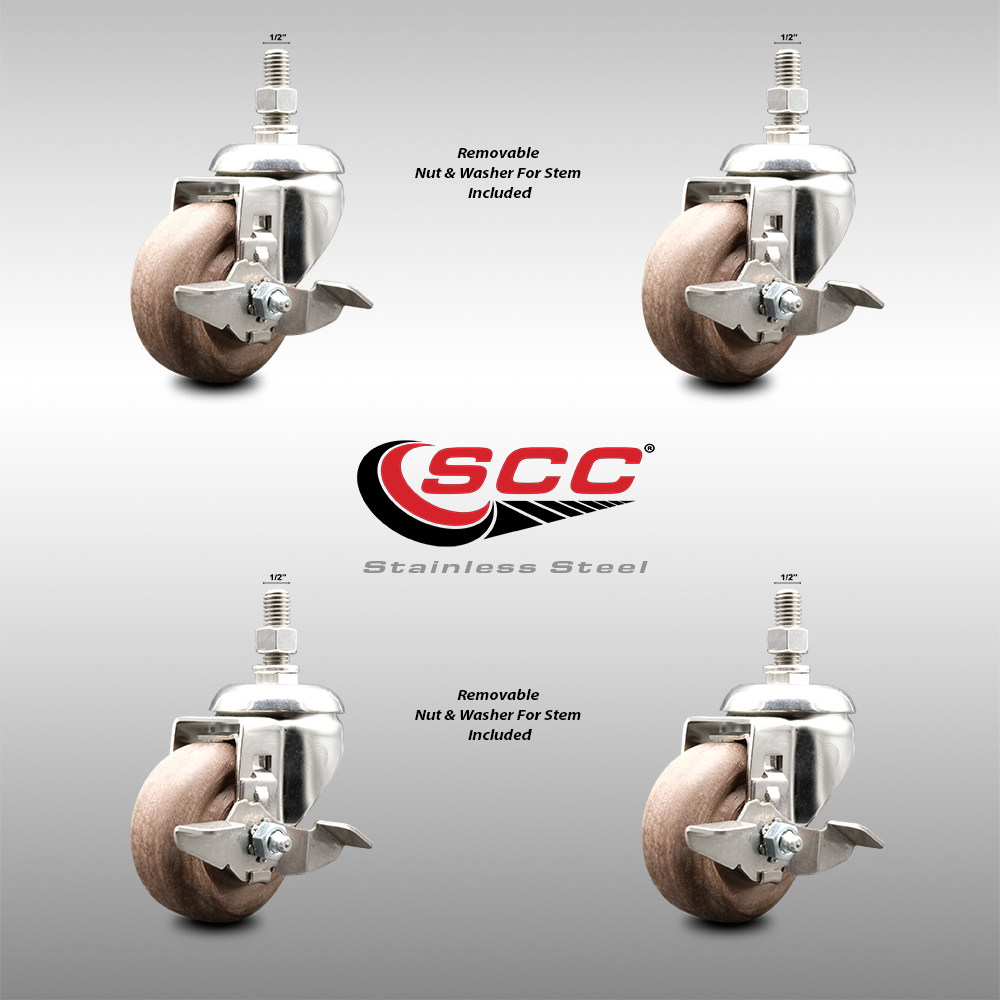

Listing is for a set of four (4) Service Caster Series #20 stainless steel swivel casters, four (4) swivel 1/2" threaded stem casters with top lock brakes, 3” diameter by 1-1/4” wide glass filled nylon wheels. Supports a total weight of 1,400lbs (350lbs/per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s 316 stainless steel glass filled nylon casters. SS316 casters are ideal for light and medium duty material handling, carts, equipment, and shop projects. Built with 316 stainless steel, which contains additional molybdenum and nickel content, making it more corrosion resistant than standard 304 stainless steel. The glass filled nylon wheels provide very low rolling resistance, show a high resistance to many aggressive substances, will not flat spot, and under normal operating conditions are maintenance free. Resistant to most chemical and oils, these glass filled nylon wheels will keep you safely moving forward. Mounting options include top plate, bolt hole, expanding stem and standard and metric threaded stem sizes. • These Service Caster Series #20 High Temperature Glass Filled Nylon casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height. • Weight Capacity: 350 lbs Capacity/Caster • All casters feature a 1/2” diameter (13 TPI x 1-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button. • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
