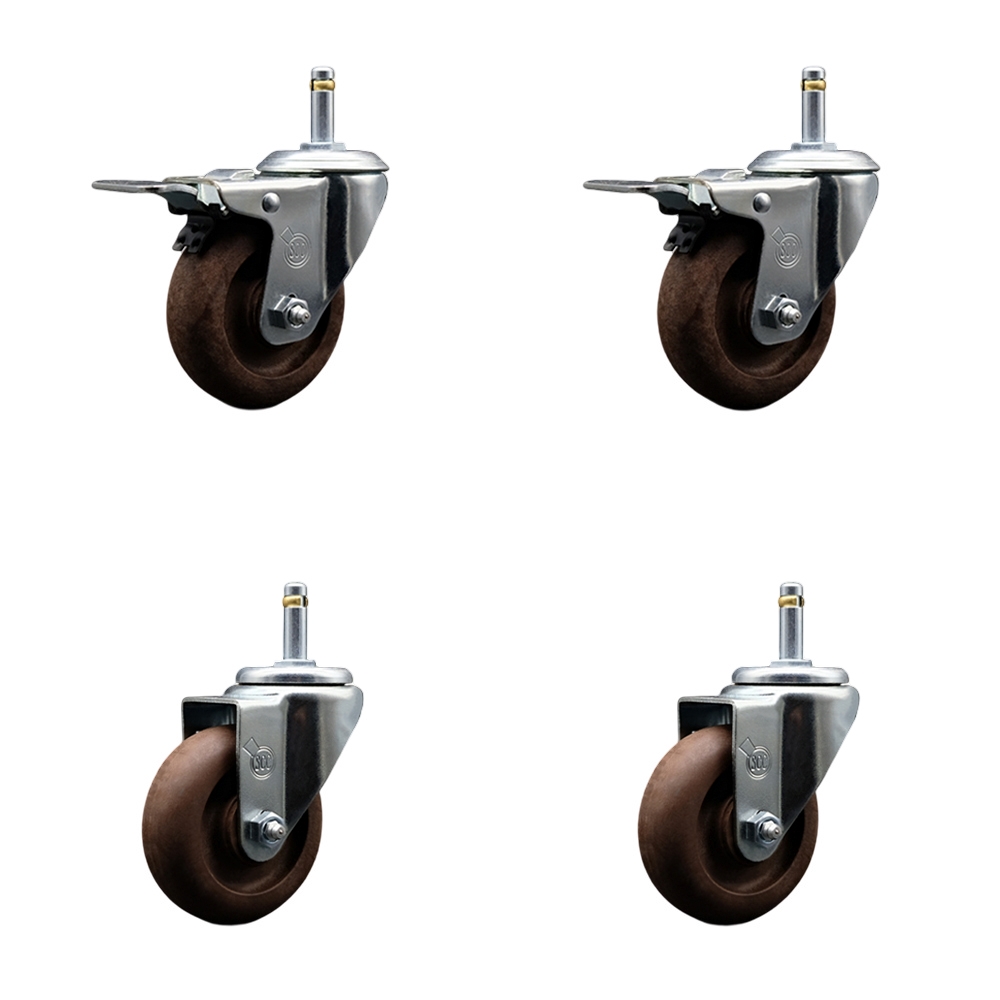

High Temp Glass Filled Nylon Swivel Grip Ring Stem Caster Set of 4 w/3.5" x 1.25" Brown Wheels and 7/16" Stems - Includes 2 with Total Locking Brake - 1400 lbs Total Capacity - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

SCC-GRTTL20S3514-GFNSHT-716138-2-S-2

Condition

new

Quantity

4

UPC

734005088786

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

8 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Capacity

1400

Color

4 Swivel w/2 Total Lock Brakes

Durometer

85D

Feature

Total lock brake

Heat Capacity

-45 degrees F to 550 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

4-5/8"

Locking Type

Total lock brake

Lower Temperature

-45

Lower Temperature UofM

F

Material Type

High Temperature Glass Filled Nylon

Maximum Temperature

550

Maximum Temperature UofM

F

Mounting Height

4-5/8"

Mounting Type

Grip Ring Stem

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Stem

Locking Castersor Wheels

Yes

Swivels

Yes

Size

3.5" Wheel

Stem

7/16" x 1-3/8" Grip Ring Stem

Stem Diameter

7/16"

Stem Length

1-3/8"

Stem Length UofM

inches

Stem Type

Grip Ring Stem

Tread Width

1.25

Tread Width UofM

inches

Type

(2) Swivel casters & (2) swivel casters w/total lock brakes

Wheel Bearing

Plain Bore

Wheel Diameter

3.5

Wheel Diameter UofM

inches

Wheel Material

High Temperature Glass Filled Nylon

Wheel Size

3-1/2" x 1-1/4"

Wheel Type

High Temperature Glass Filled Nylon

Description

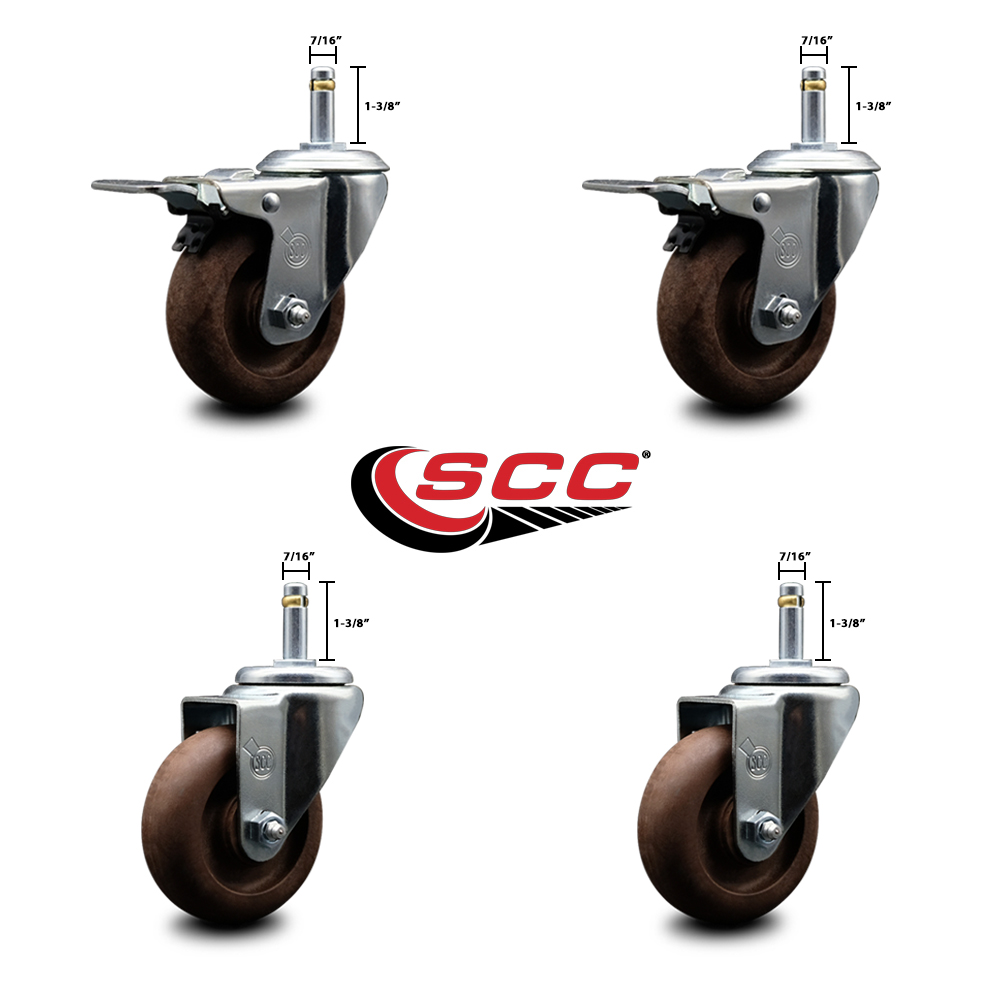

Listing is for a set of four (4) Service Caster Series #20 casters, two (2) swivel 7/16" grip ring stem with total lock brake casters and two (2) swivel casters, with 3-1/2” diameter by 1-1/4” wide high temp glass filled nylon wheels. Supports a total weight of 1,400lbs (350lbs/per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster Series 20 grip ring stem high temp glass filled nylon wheel casters. The Service Caster Series #20 is ideal for autoclaves, bakery ovens and powder coating facilities. The zinc plated finish provides durability under any condition, and the high temp glass filled nylon wheels- quieter than comparable steel wheels- have a high resistance to impact damage, providing protection for floors in commercial and industrial settings. This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 475°F continuous usage to 550°F intermittent usage. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #20 High Temperature Glass Filled Nylon casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height. • Weight Capacity: 350 lbs Capacity/Caster • All casters feature a 7/16” diameter by 1-3/8” long grip ring stem. Service Caster recommends using a drill or hardware gauge, a 7/16” wrench, or our paper wrap method to ensure the grip ring stem diameter needed is 7/16”. Paper Wrap Method: take a small strip of paper and wrap it around the stem. Mark the paper with a pen where it overlaps, keep the wrap tight. Measure the strip from the start of the wrap to the mark. The ruler should measure 1-3/8". Don’t see the size you need? Call us! • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB), which is featured on 3", 3-1/2", 4", and 5" wheel sizes, places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL), which is featured on all wheel sizes, also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
