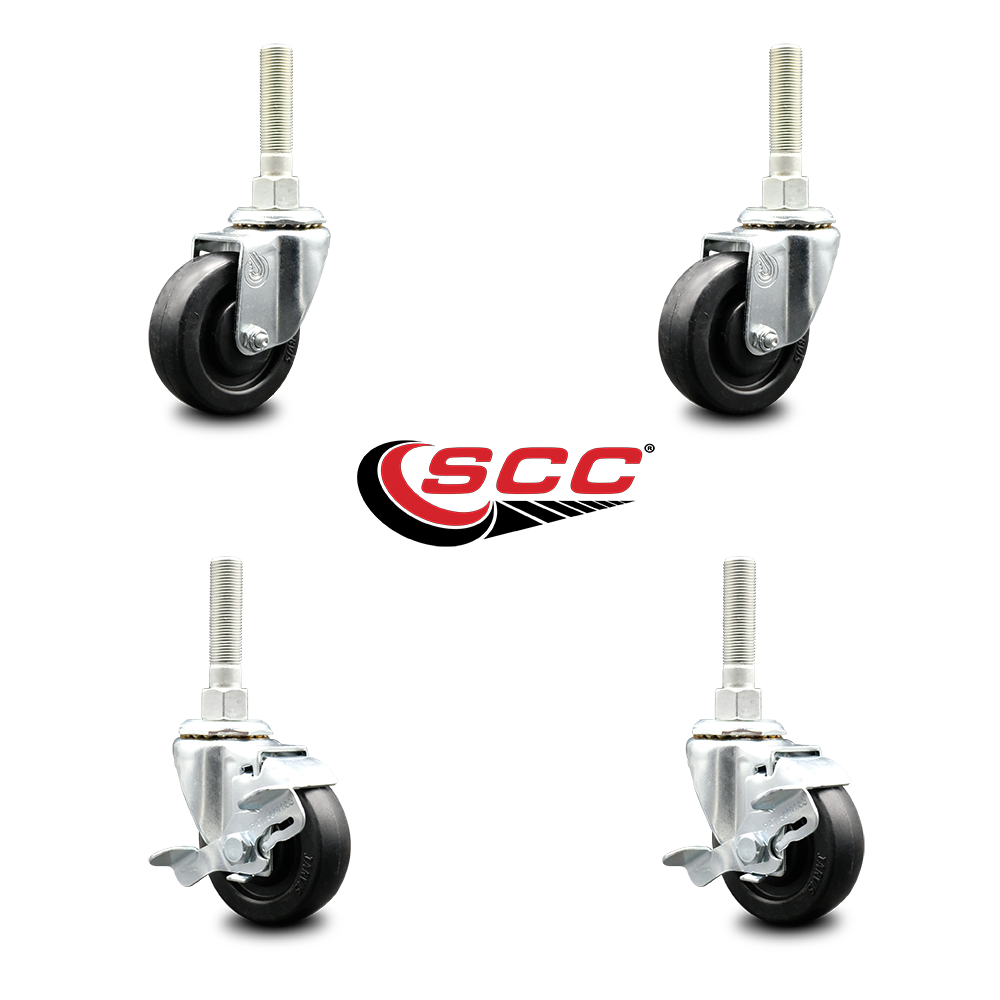

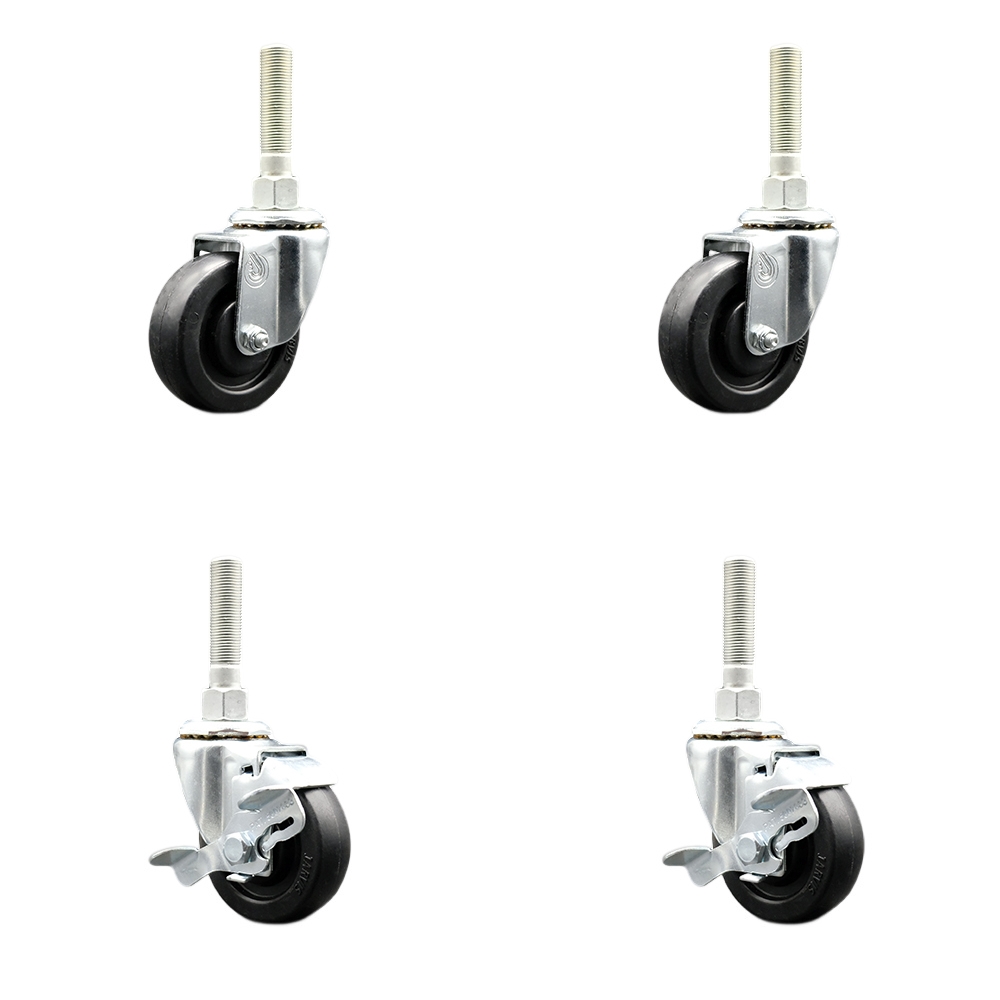

Henny Penny 03007 HP17630 HP17629 – Replacement Threaded Stem Swivel Caster Set of 4 – 3 Inch Black Polyolefin Wheels – Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #05

SKU

HEN-SCC-TS05S310-POS-58SP-2-TLB-2

Condition

new

Quantity

4

UPC

734005059793

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

7 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Capacity

500

Color

4 Swivel w/2 Brakes - 4 PCS

Durometer

70D

Feature

2 casters with top lock brakes

Heat Capacity

-20 degrees F to 180 degrees F

Item Weight Unit of Measure

pounds

Load Height

4"

Locking Type

(2) Top lock brakes

Lower Temperature

-20

Lower Temperature UofM

F

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

4"

Mounting Type

Threaded Stem

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Stem

Locking Castersor Wheels

Yes

Swivels

Yes

Size

3" Wheel

Stem

5/8"-18 x 3-1/16" Threaded Stem

Stem Diameter

5/8"

Stem Length

3-1/16"

Stem Length UofM

inches

Stem Type

Threaded Stem

Tread Width

1

Tread Width UofM

inches

Type

(2) swivel casters & (2) swivel casters w/top lock brakes

Wheel Bearing

Plain Bore

Wheel Diameter

3

Wheel Diameter UofM

inches

Wheel Material

Polyolefin

Wheel Size

3" x 1"

Wheel Type

Polyolefin

Description

High quality replacement threaded stem swivel caster set for Henny Penny Ranges 500, 600, CFA-500, CFA-600, PFE-500, PFE-500-CFA, PFE-561, PFE-600, PFG-500, PFG-561, and PFG-600. Listing is for four (4) Service Caster Series #05, two (2) swivel casters with top lock brakes and two (2) swivel casters, with 3 inch diameter by 1 inch wide polyolefin wheels and a 5/8-18 inch threaded stems. When searching for a reliable and durable solution to your caster needs, consider Service Caster Series 30 top plate polyolefin wheel casters. The Service Caster Series #30 features light weight polyolefin wheels that are resistant to shock, chemicals and abrasion, and finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway. These versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Fits Henny Penny Ranges 500, 600, CFA-500, CFA-600, PFE-500, PFE-500-CFA, PFE-561, PFE-600, PFG-500, PFG-561, and PFG-600 • Henny Penny HP17630 & Henny Penny HP17629 • High resistance to shock and impact damage • Mounting Height: 4"
