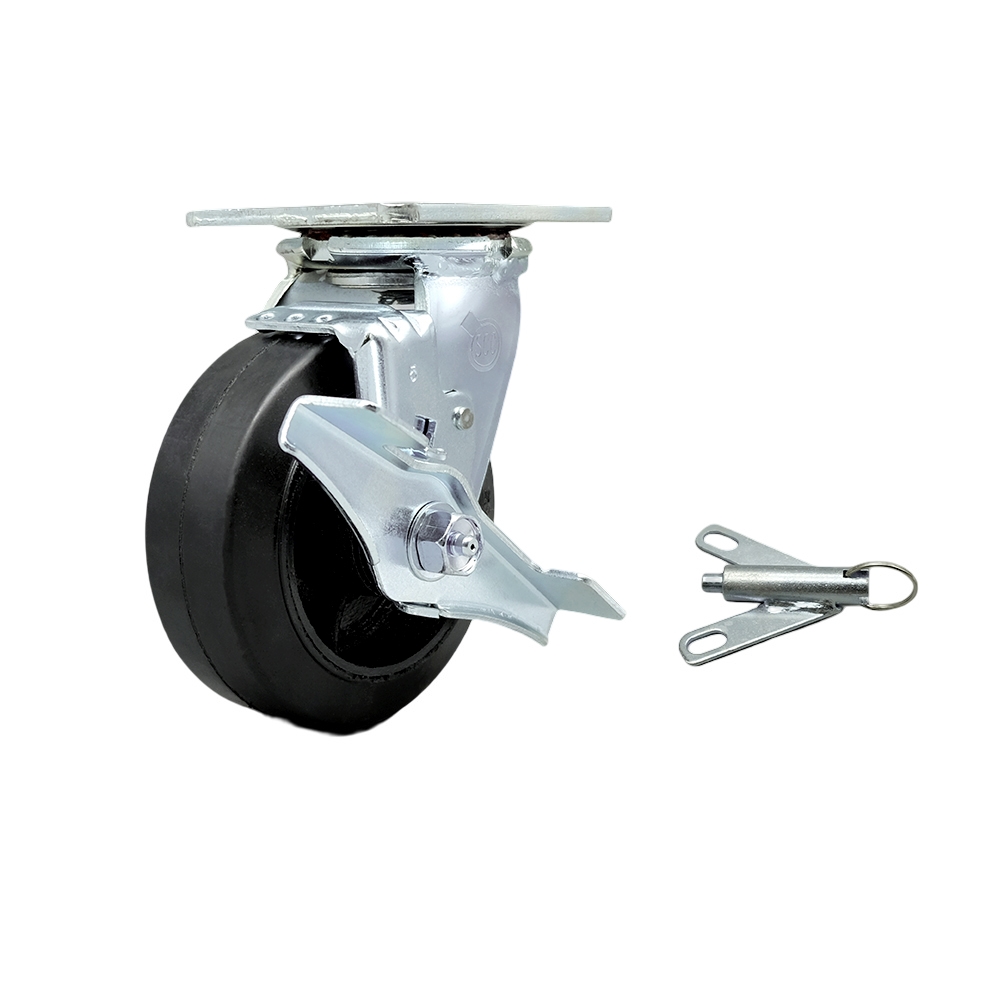

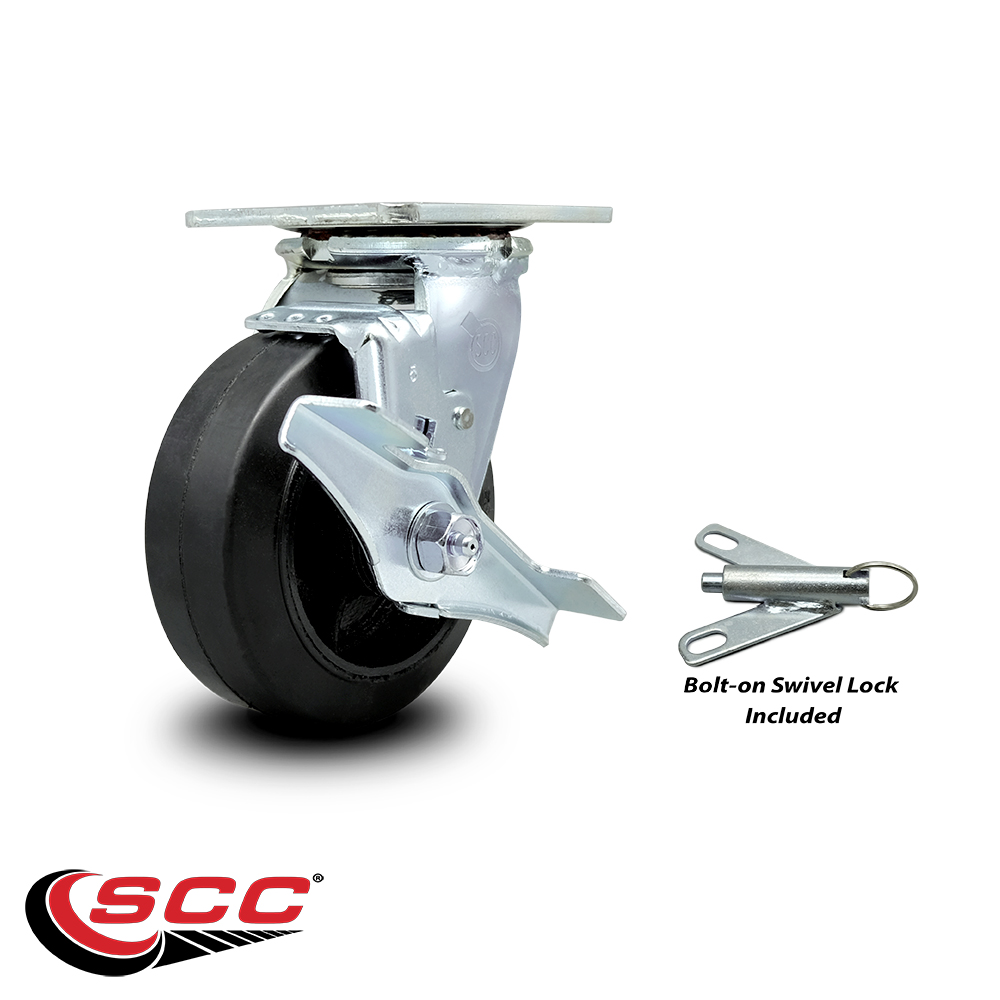

Heavy Duty Swivel Top Plate Caster with Top Lock Brake and Bolt on Swivel Lock and 5 Inch Rubber on Metal Wheel with Ball Bearings - 400 lbs. Capacity/Caster - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #30

SKU

SCC-30CS520-RSB-TLB-BSL

Condition

new

Quantity

1

UPC

011586572607

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

6.9 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

3/8" (hardware not included)

Capacity

400

Color

Swivel - Brake & Bolt on Swivel Lock - Black

Durometer

80A

Heat Capacity

-40 degrees F to 180 degrees F

Item Weight Unit of Measure

pounds

Load Height

6-1/2"

Locking Type

Top Lock Brake & Bolt on Swivel Lock

Lower Temperature

-40

Lower Temperature UofM

F

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

6-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

5" Wheel

Top Plate Size

4" x 4-1/2"

Tread Width

2

Tread Width UofM

inches

Type

Swivel caster w/top lock brake & bolt on swivel lock

Wheel Bearing

Precision Ball Bearing

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Rubber on Cast Iron

Wheel Size

5" x 2"

Wheel Type

Rubber on Cast Iron

Description

Listing is for one (1) Service Caster Series #30 swivel caster with a 5" diameter by 2" wide rubber on cast iron wheel and maintenance free precision ball wheel bearings with a side lock brake & bolt on swivel lock capable of supporting 400 lbs./caster. When searching for a reliable and durable solution for medium and heavy duty projects, consider Service Caster’s Series 30 moldon rubber on cast iron wheel casters. The Service Caster Series #30 is ideal for material handling, carts, equipment, and shop projects. The moldon rubber tread performs especially well on hard surfaces such as concrete, tile, and wood, while the cast iron core wheel stands up to heavier loads with a stable and secure roll. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #30 Rubber on Cast Iron casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height. • Weight Capacity: 4": 400 lbs Capacity/Caster, 5": 400 lbs Capacity/Caster, 6": 450 lbs. Capacity/Caster, and 8": 500 lbs Capacity/Caster • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. • Brake options include a top lock brake (TLB), or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
