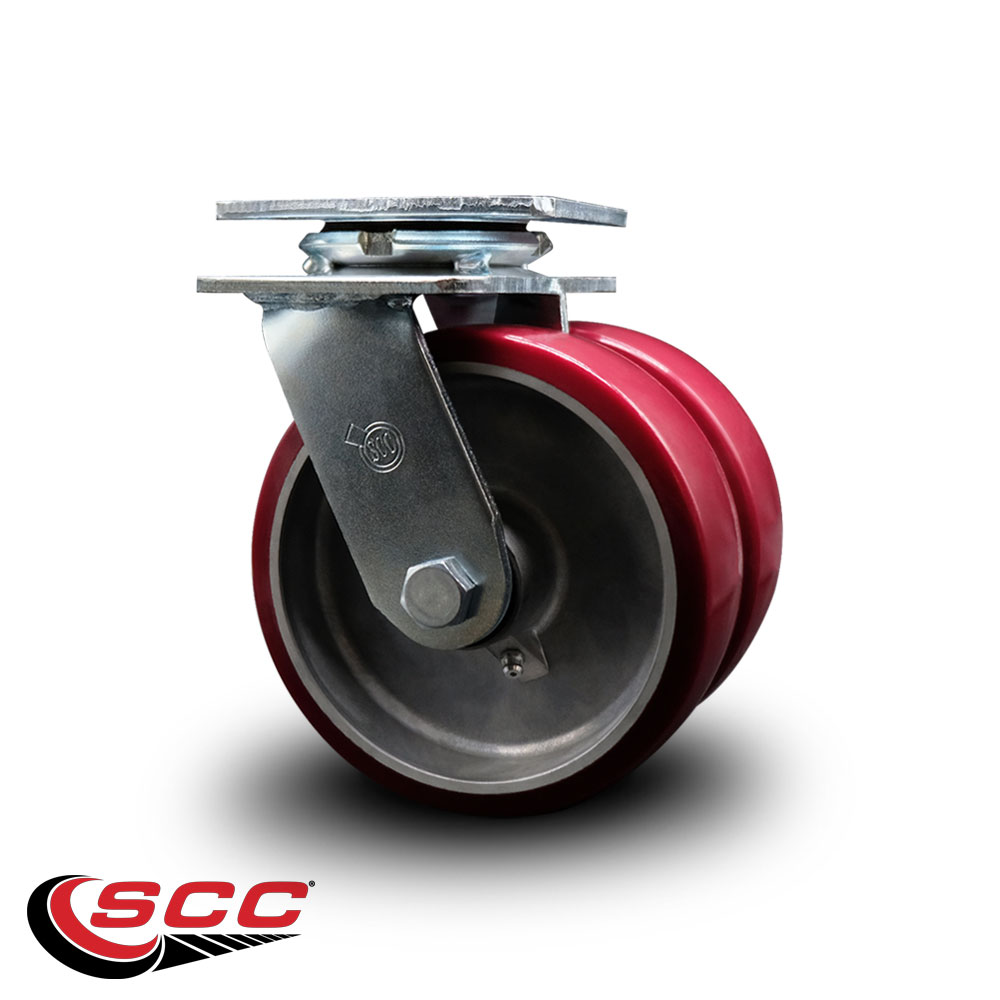

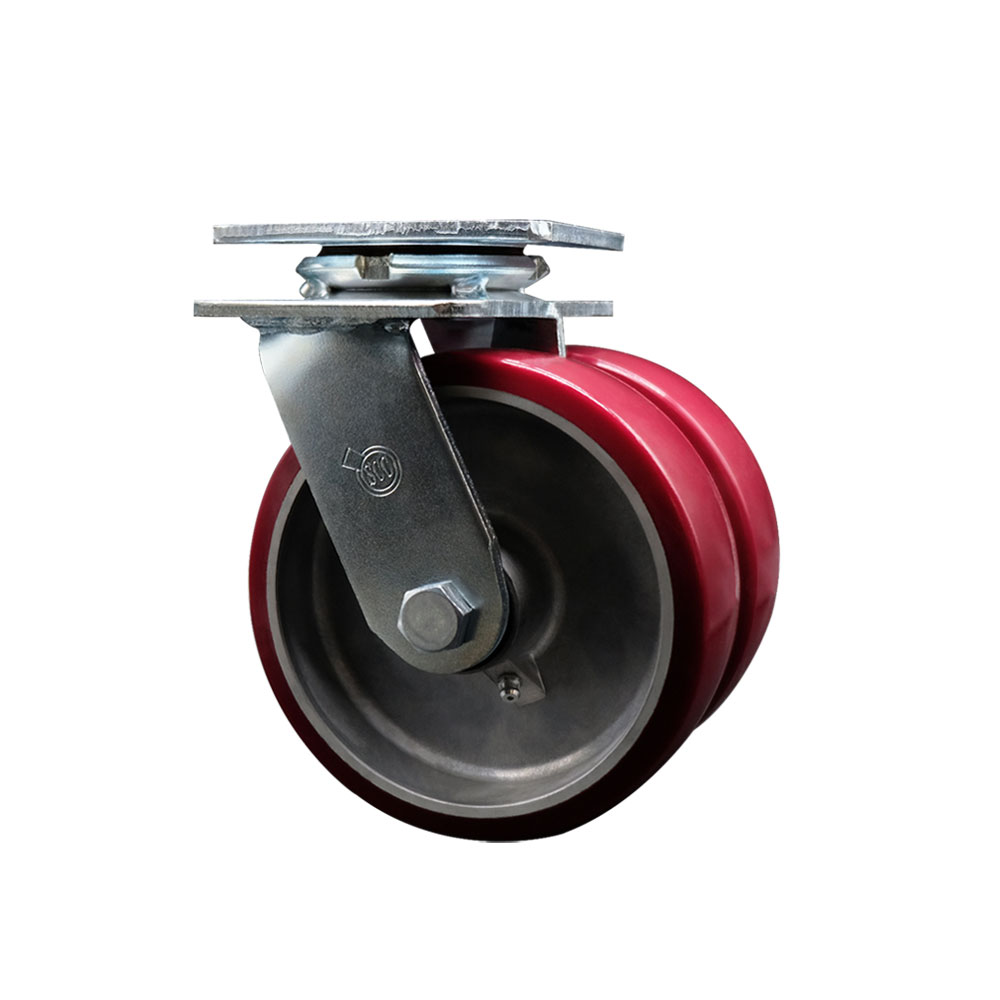

Heavy Duty Swivel Top Plate Caster with Dual 6 Inch Polyurethane on Aluminum Wheels and Ball Bearings - 1,250 lbs. Capacity Per Caster - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #30

SKU

SCC-DW30CS620-PAB

Condition

new

Quantity

1

UPC

734005478761

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

11 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

3/8" (hardware not included)

Capacity

1250

Color

Swivel - No Brake - Ball Bearing

Durometer

95A

Heat Capacity

-45 degrees F to 180 degrees F

Item Weight Unit of Measure

pounds

Load Height

7-1/2"

Lower Temperature

-45

Lower Temperature UofM

F

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

7-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Swivels

Yes

Size

6" Wheel

Top Plate Size

4" x 4-1/2"

Tread Width

2

Tread Width UofM

inches

Type

Swivel caster

Wheel Bearing

Precision Ball Bearing

Wheel Diameter

6

Wheel Diameter UofM

inches

Wheel Material

Polyurethane Tread on Aluminum Core

Wheel Size

6" x 2"

Wheel Type

Polyurethane tread on aluminum core

Description

Listing is for one (1) Service Caster Series #30 swivel caster with a 6" diameter by 2" wide dual polyurethane tread on a silver aluminum core wheels and maintenance free precision ball wheel bearings. Capable of supporting 1,250 lbs. per caster. When searching for a reliable and durable solution to your caster needs, rely on Service Caster Series 30 dual wheel polyurethane aluminum casters. The Series #30 features heavy duty polyurethane wheels that are chemically bonded to an aluminum core, providing a smooth roll over uneven surfaces without marking or marring floors. Finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway, these versatile casters are ideal for a wide range of applications. Use on dollies, platform trucks, warehouse carts and freight terminals, or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #30 Polyurethane on Aluminum casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height. • Weight Capacity: 4": 1,250 lbs Capacity/Caster, 5": 1,250 lbs Capacity/Caster, 6": 1,250 lbs. Capacity/Caster, and 8": 1,250 lbs Capacity/Caster • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
