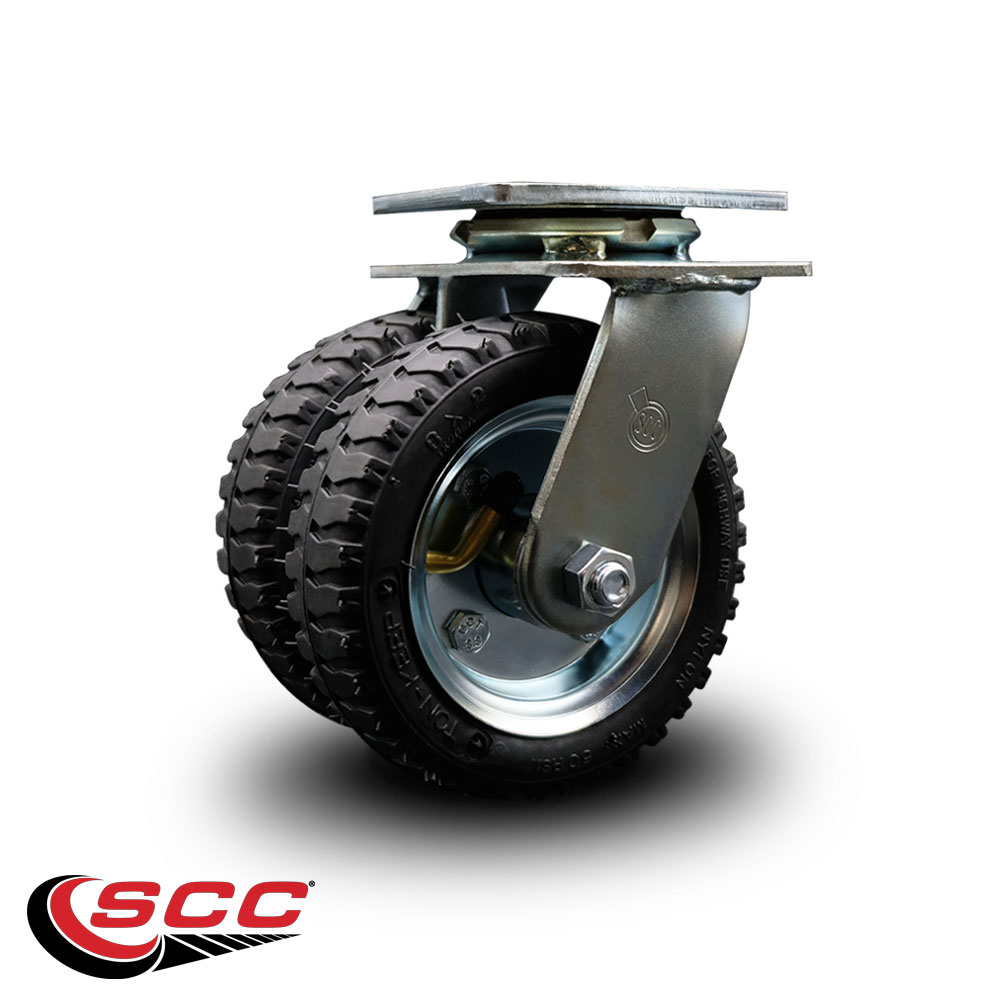

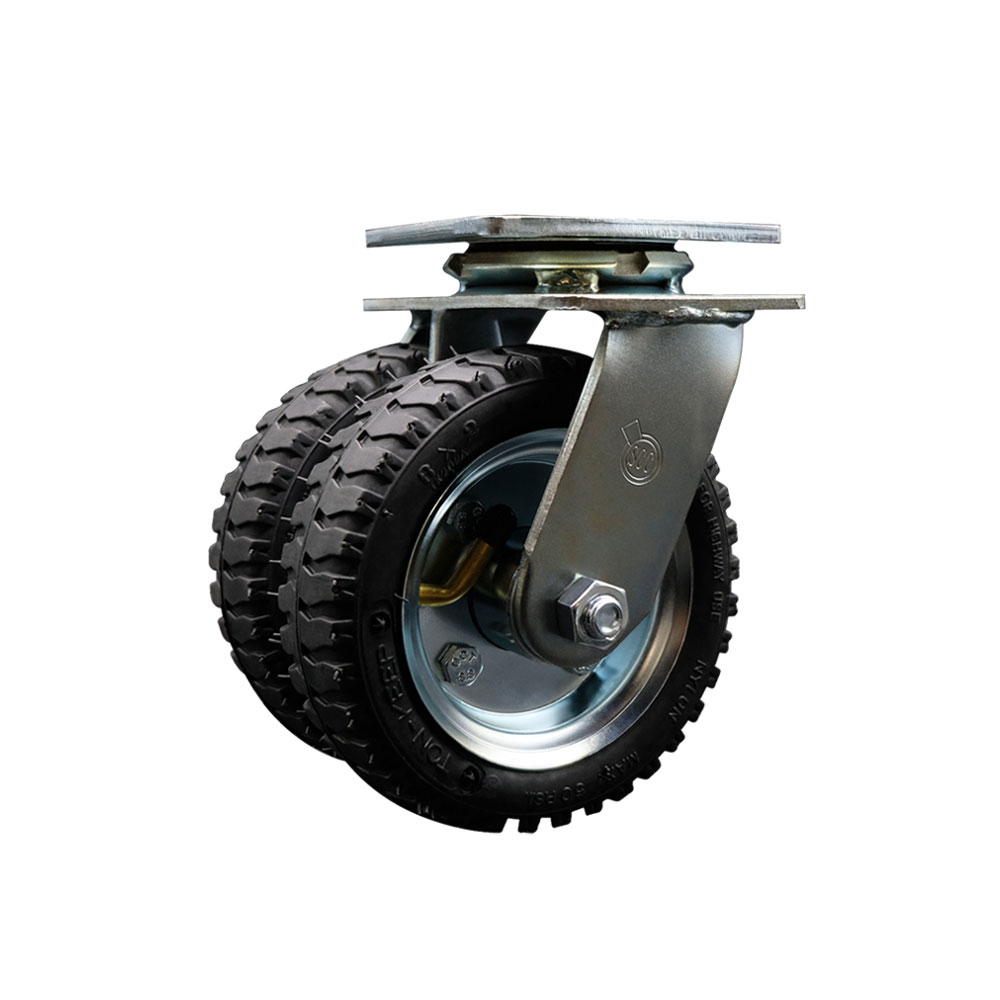

Heavy Duty Swivel Top Plate Caster with Dual 6 Inch Pneumatic Wheels and Ball Bearings - 250 lbs. Capacity Per Caster - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #100

SKU

SCC-DW100S150-PNB

Condition

new

Quantity

1

UPC

734005480917

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

10 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

3/8" (hardware not included)

Capacity

500

Color

Swivel - No Brake - Ball Bearing

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

7-1/2"

Mounting Height

7-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Swivels

Yes

Size

6" Wheel

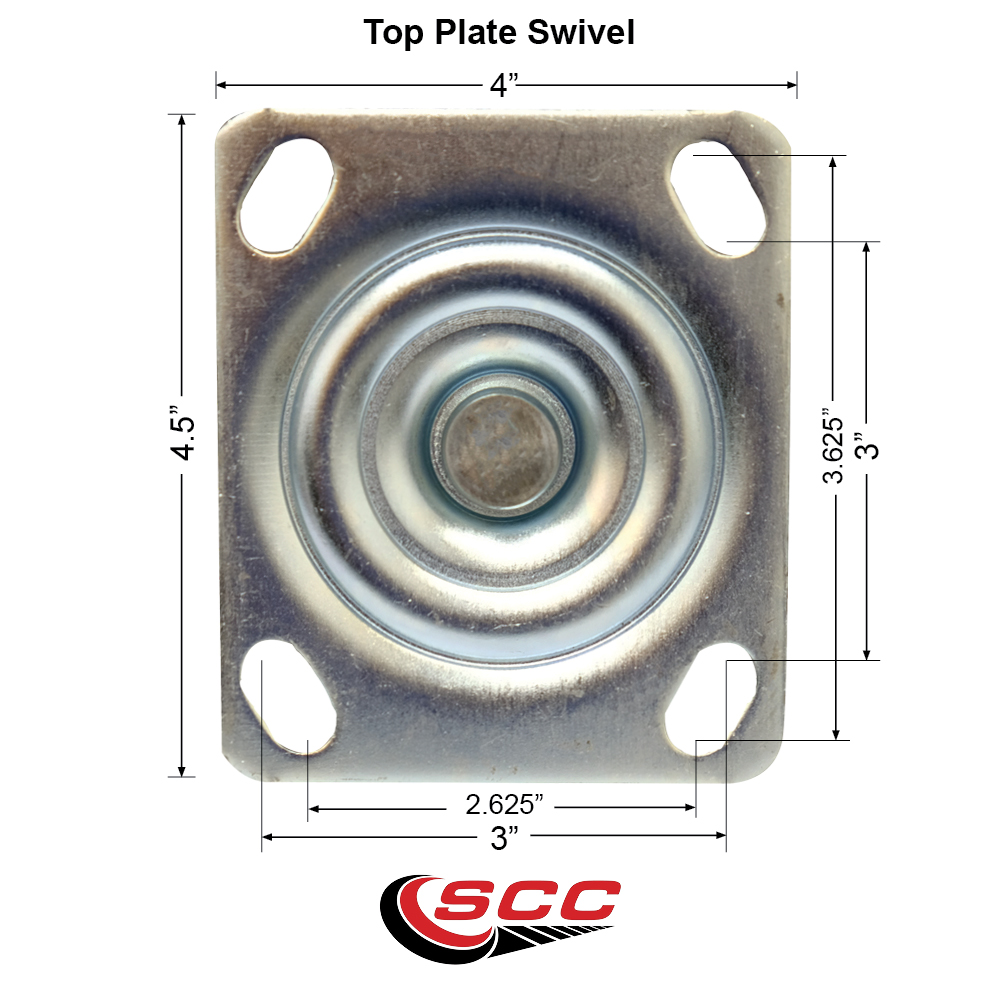

Top Plate Size

4" x 4-1/2"

Tread Width

2

Tread Width UofM

inches

Type

Swivel caster

Wheel Bearing

Precision Ball Bearing

Wheel Diameter

6

Wheel Diameter UofM

inches

Wheel Material

Rubber Tread on Metal Core

Wheel Size

6" x 2"

Wheel Type

Rubber Tread on Metal Core

Description

Listing is for one (1) Service Caster Series #100 swivel caster with a 6" diameter by 2" wide dual pneumatic wheels and maintenance free precision ball wheel bearings. Capable of supporting 500 lbs./caster. When searching for a reliable and durable solution to your caster needs, look no further than the Service Caster Series #100 casters. The universal design provides an excellent OEM and replacement part for luggage carts, food carts, or any application your business requires. With it’s zinc plated finish and pneumatic rubber wheels all rolling on finely crafted ball bearings, the Service Caster Series #100 provides enhanced noise reduction and consistent roll on any surface, for an overall superior ride under any condition. Note: this caster is NOT intended for highway use! Manual speed only. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • The Series 100 pneumatic casters come in 6” (mounting height 7.5”) and are made of pneumatic tread and an inner core filled with pressurized air which remains inflated even with the weight of a vehicle resting on it. • Weight Capacity: 6": 250 lbs. Capacity/Caster • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
