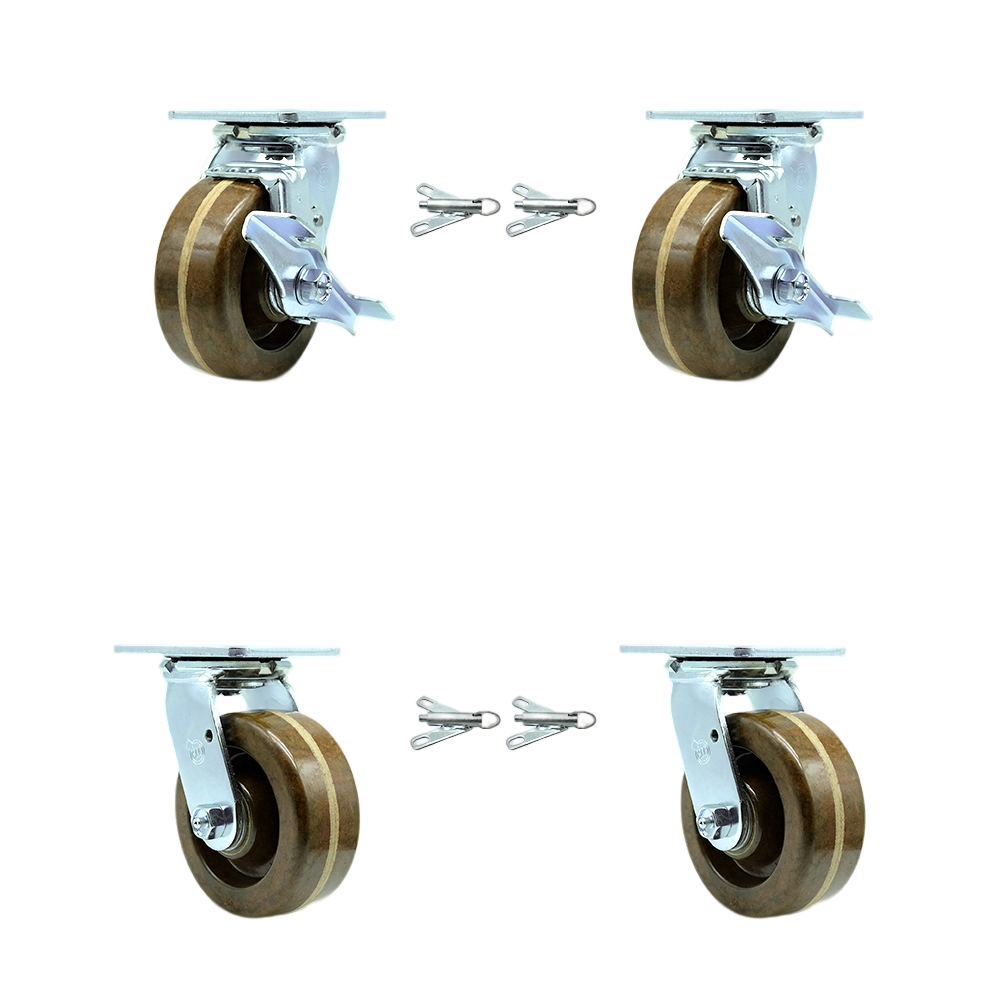

Heavy Duty Swivel Caster Set with 5 Inch High Temp Glass Filled Nylon Wheels and Bronze Bearing-Include 2 Swivel with Brake& Bolt on Swivel Lock and 2 Swivel w/Bolt on Swivel Lock-Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #30

SKU

SCC-30CS520-GFNBZHT-TLB-BSL-2-BSL-2

Condition

new

Quantity

4

UPC

734005522051

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

26 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

3/8" (hardware not included)

Capacity

4000

Color

4 Swivel w/2 Brakes & 4 Swivel Locks

Durometer

85D

Heat Capacity

-45 degrees F to 550 degrees F

Item Weight Unit of Measure

pounds

Load Height

6-1/2"

Locking Type

4 Bolt on Swivel Locks & 2 Top Lock Brakes

Lower Temperature

-45

Lower Temperature UofM

F

Maximum Temperature

550

Maximum Temperature UofM

F

Mounting Height

6-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

5" Wheel

Top Plate Size

4" x 4-1/2"

Tread Width

2

Tread Width UofM

inches

Type

(2) Swivel caster w/top lock brake & bolt on swivel lock & (2) swivel casters w/bolt on swivel locks

Wheel Bearing

Bronze Bearing

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

High Temperature Glass Filled Nylon

Wheel Size

5" x 2"

Wheel Type

High Temperature Glass Filled Nylon

Description

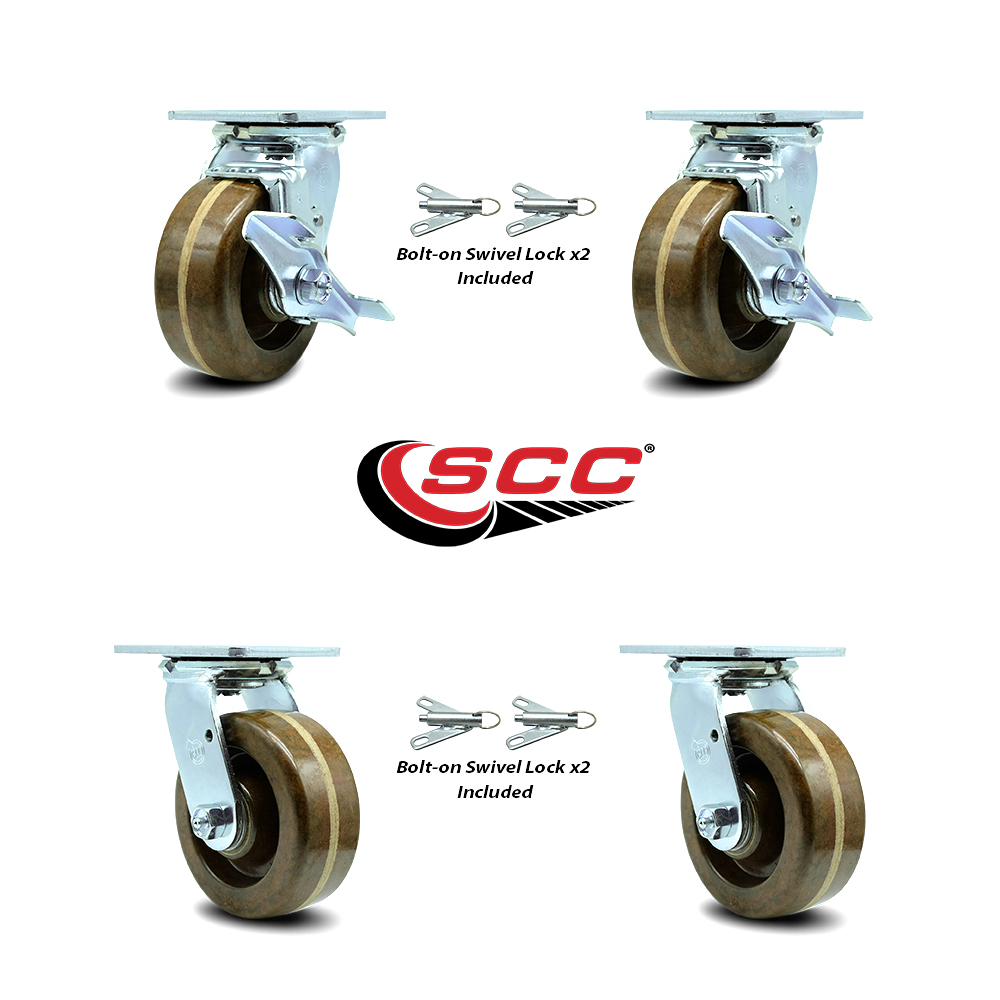

Listing is for a set of four (4) Service Caster Series #30 casters, two (2) swivel casters with top lock brakes & bolt on swivel locks and two (2) swivel casters with a bolt on swivel locks, with 5" diameter by 2" wide brown high temperature glass filled nylon wheel and bronze wheel bearings capable of supporting a total weight of 4,000 lbs. (1,000 lbs./caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster Series 30 top plate high temperature glass filled nylon wheel casters. The Service Caster Series #30 is ideal for autoclaves, bakery ovens and powder coating facilities. The zinc plated finish provides durability under any condition, and the high temp glass filled nylon wheels provide very low rolling resistance, show a high resistance to many aggressive substances, will not flat spot, and under normal operating conditions are maintenance free. Resistant to most chemical and oils, these glass filled nylon wheels will keep you safely moving forward. This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 475°F continuous usage to 525°F intermittent usage. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #30 High Temperature Glass Filled Nylon casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height. • Weight Capacity: 4": 600 lbs Capacity/Caster, 5": 1000 lbs Capacity/Caster, 6": 1100 lbs. Capacity/Caster, and 8": 1200 lbs Capacity/Caster • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. • Brake options include a top lock brake (TLB) and abolt-on swivel lock (BSL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The bolt-on swivel lock (BSL) is field installable and converts a swivel caster to rigid for straight-line tracking at any 90 degree angle via a spring-loaded bolt inserted into one of 4 notches found on the swivel raceway.
