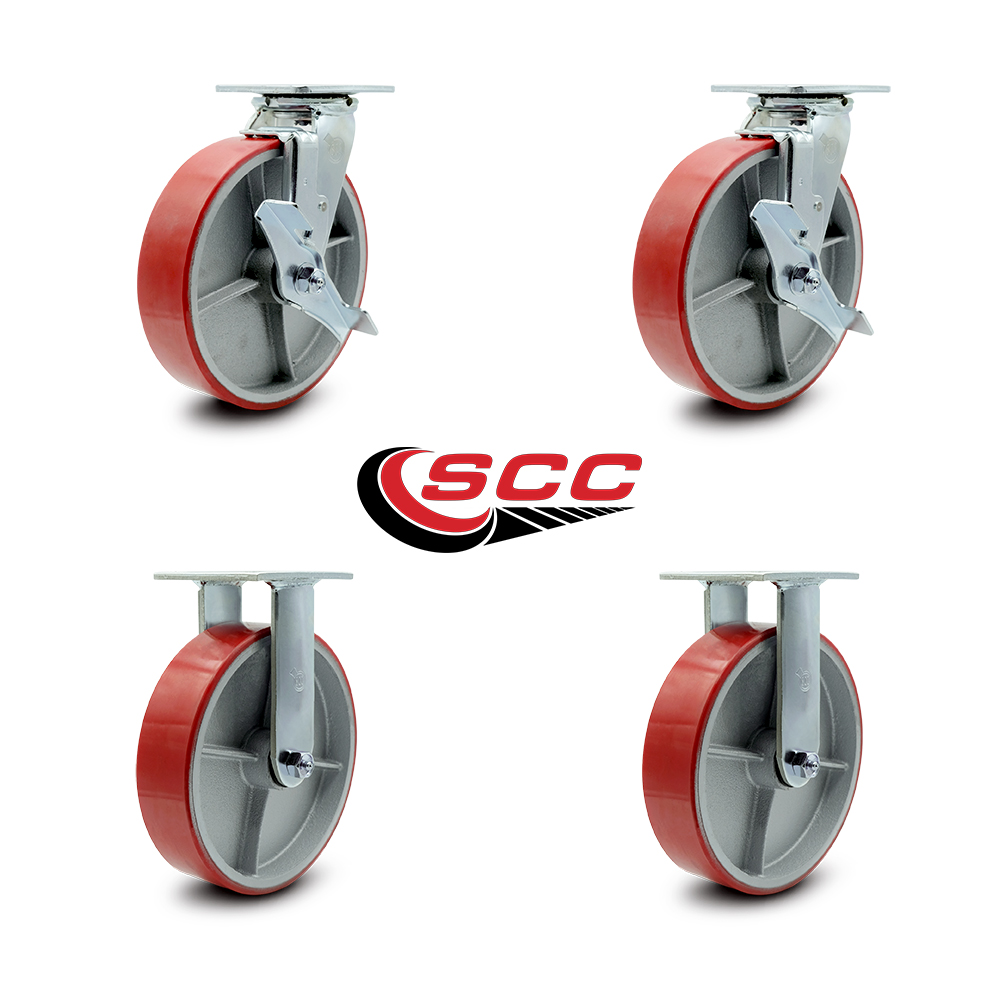

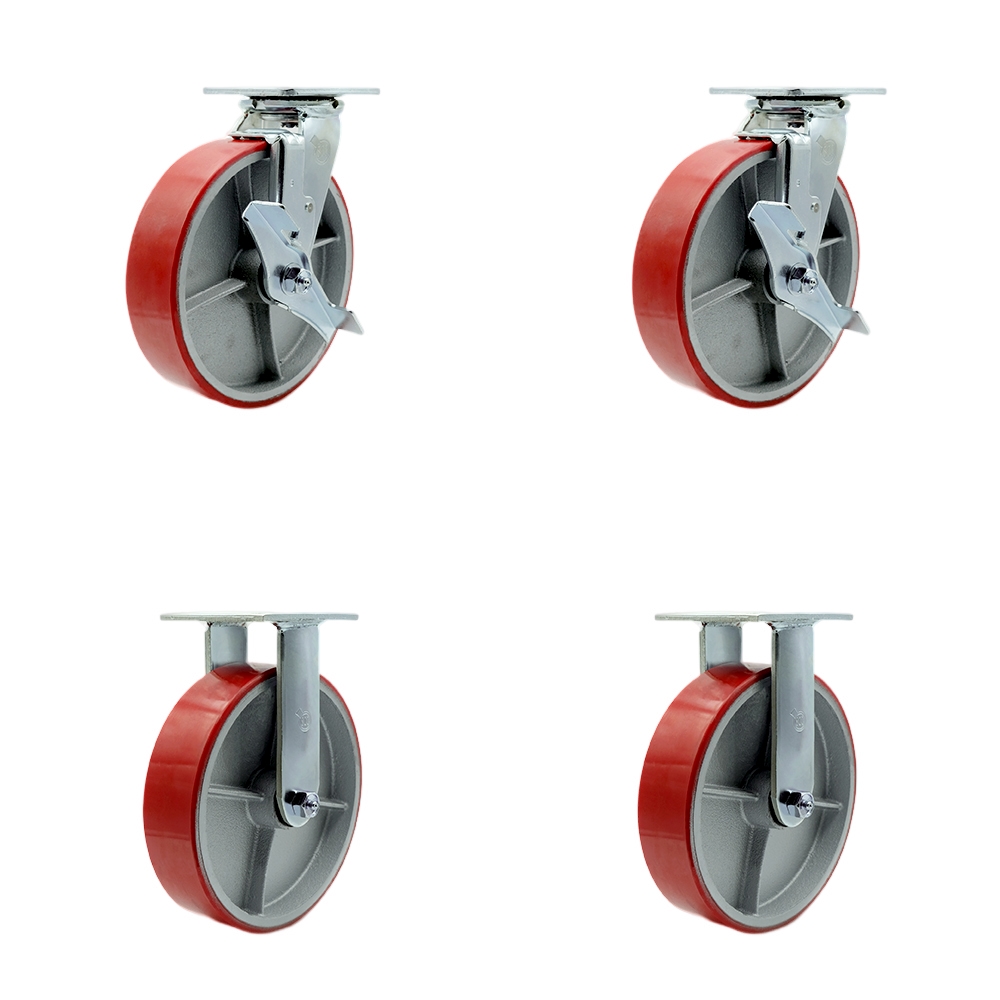

Heavy Duty Swivel Caster Set of 4 with 8 Inch Red Polyurethane on Cast Iron Wheels and Ball Bearings - Includes 2 Swivel with Brakes and 2 Rigid - 5,000 lbs. Total Capacity - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #30

SKU

SCC-30CS820-PUB-RS-TLB-2-R820-2

Condition

new

Quantity

4

UPC

011586571396

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

42 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

3/8" (hardware not included)

Capacity

1250

Color

2 Swivel w/2 Top Lock Brakes - 2 Rigid

Durometer

95A

Feature

2 casters with top lock brakes

Heat Capacity

-40 degrees F to 180 degrees F

Item Weight Unit of Measure

pounds

Load Height

9-1/2"

Locking Type

(2) Top lock brakes

Lower Temperature

-40

Lower Temperature UofM

F

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

9-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

8" Wheel

Top Plate Size

4" x 4-1/2"

Tread Width

2

Tread Width UofM

inches

Type

(2) swivel casters w/top lock brakes & (2) rigid casters

Wheel Bearing

Precision Ball Bearing

Wheel Diameter

8

Wheel Diameter UofM

inches

Wheel Material

Polyurethane Tread on Semi Steel Cast Iron Core

Wheel Size

8" x 2"

Wheel Type

Polyurethane Tread on Cast Iron Core

Description

Listing is for a set of four (4) Service Caster Series #30 casters with a 8" diameter, 2" wide red polyurethane tread set on metal core wheel and maintenance free precision ball wheel bearings. Set includes two (2) rigid casters and two (2) swivel casters fitted with top locking brakes . Supports 5000 total pounds (lbs) at 1250 pounds (lbs) per caster. Non Marking/Non Marring. When searching for a reliable and durable solution for medium and heavy duty projects, consider Service Caster’s Series 30 top plate polyurethane casters. The Service Caster Series #30 is ideal for material handling, carts, equipment, and shop projects. The non-marking, non-marring polyurethane tread performs especially well on hard surfaces such as concrete, tile, and wood, while the metal core wheel stands up to heavier loads with a stable and secure roll. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Service Caster’s Red Polyurethane on Silver Cast Iron core wheels come in four sizes – 6" x 3", 8” x 3", 10” x 3", and 12” x 3". • Weight capacity ranges from 2000 lbs. on the 6" wheel, 2500 lbs. on the 8”, 3000 lbs. on the 10”, and 3500 lbs. on the 12”. • All wheel sizes have a 3/4" axle bore and a 3-1/2" hub length. When the spanner bushing is removed, all wheel sizes can be used on a 1" axle. Please keep in mind, the hub length is the widest point of the wheel, so it is important to ensure you can accommodate this width before purchasing. • Brake options include a top lock brake (TLB), a total lock brake (TTL), or a side lock brake (SLB). The TLB places a positive locking force against the wheel tread, locking the wheel only. The SLB places a positive locking force against the wheel hub, locking the wheel only. The TTL also places a positive locking force against the wheel tread, but the TTL simultaneously locks the wheel and the swivel for a complete stationary position.
