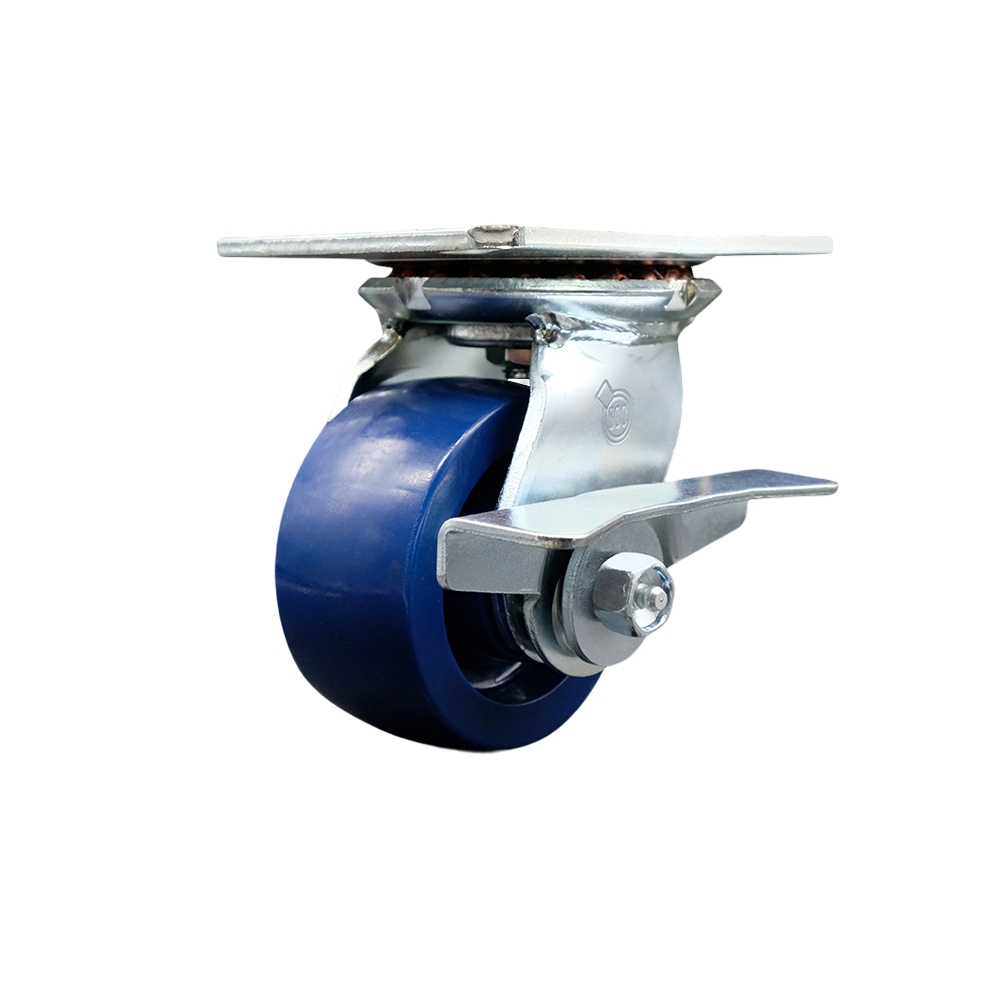

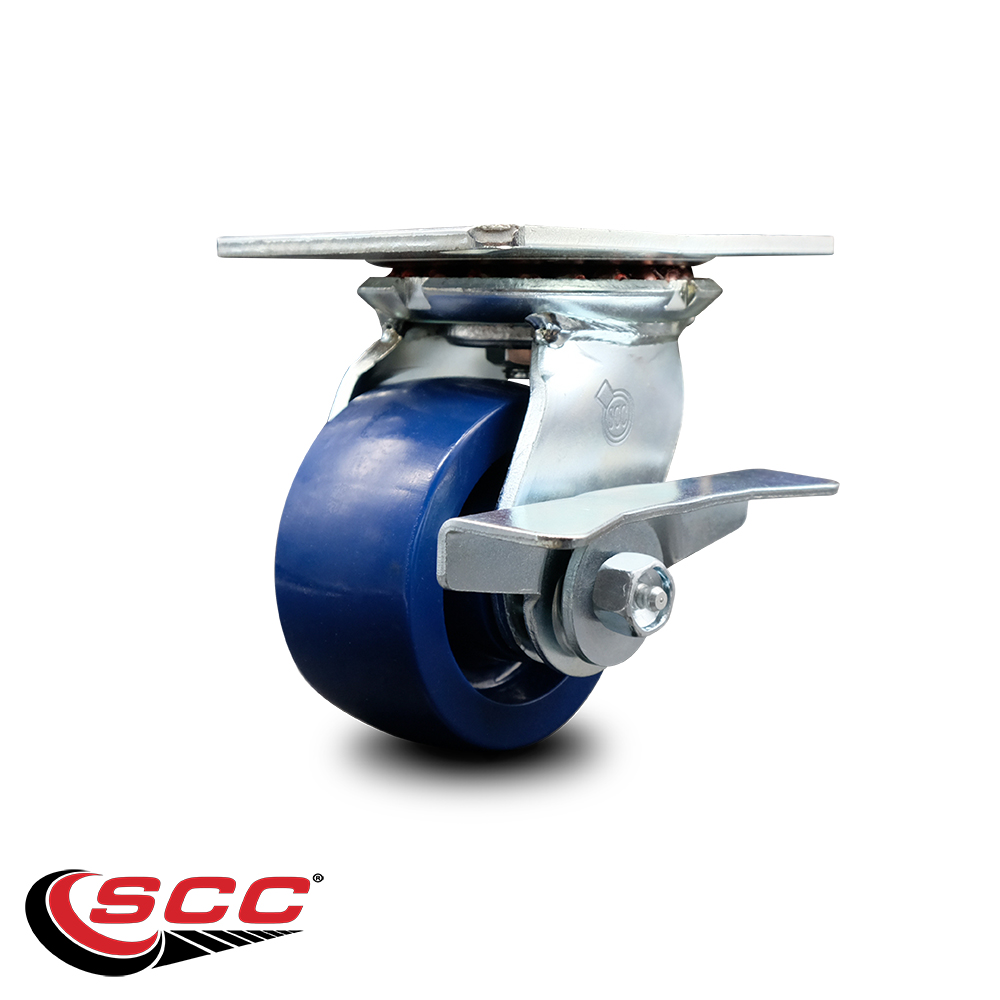

Heavy Duty Large Top Plate Solid Polyurethane Swivel Caster w/4" x 2" Blue Wheel & Side Lck Brake - 700 lbs Capacity/Caster - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series#35

SKU

SCC-35S420-SPUR-SLB

Condition

new

Quantity

1

UPC

011586587175

Harmonized code

8302.20.0000

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

8 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

1/2" (hardware not included)

Capacity

700

Color

Swivel - Side Lock Brake - Blue

Durometer

60D

Heat Capacity

-50 degrees F to 180 degrees F

Item Weight Unit of Measure

pounds

Load Height

5-5/8"

Locking Type

Top Lock Brake

Lower Temperature

-50

Lower Temperature UofM

F

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

5-5/8"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

4" Wheel

Top Plate Size

4-1/2" x 6-1/4"

Tread Width

2

Tread Width UofM

inches

Type

Swivel caster w/side lock brake

Wheel Bearing

Roller Bearing

Wheel Diameter

4

Wheel Diameter UofM

inches

Wheel Material

Solid Polyurethane

Wheel Size

4" x 2"

Wheel Type

Solid Polyurethane

Description

Listing is for one (1) Service Caster Series #35 swivel caster with a 4" diameter by 2" wide solid polyurethane wheel and a side lock brake capable of supporting 700 lbs./caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 35 solid polyurethane wheel casters. The Service Caster Series #35 features a non-marking, non-marring polyurethane wheel. Molded as one solid piece, this wheel is free from debonding, and will not flatspot, as can occur with comparable polyurethane wheels, ensuring a smooth and solid roll over long periods of time. These versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 35, keeping you moving forward. • These Service Caster Series #35 Solid Polyurethane casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height. • Weight capacity ranges from 700 lbs on the 4” caster, 1000 lbs on the 5”, 1200 lbs on the 6” and 1200 lbs. on the 8”. • Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on. • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
