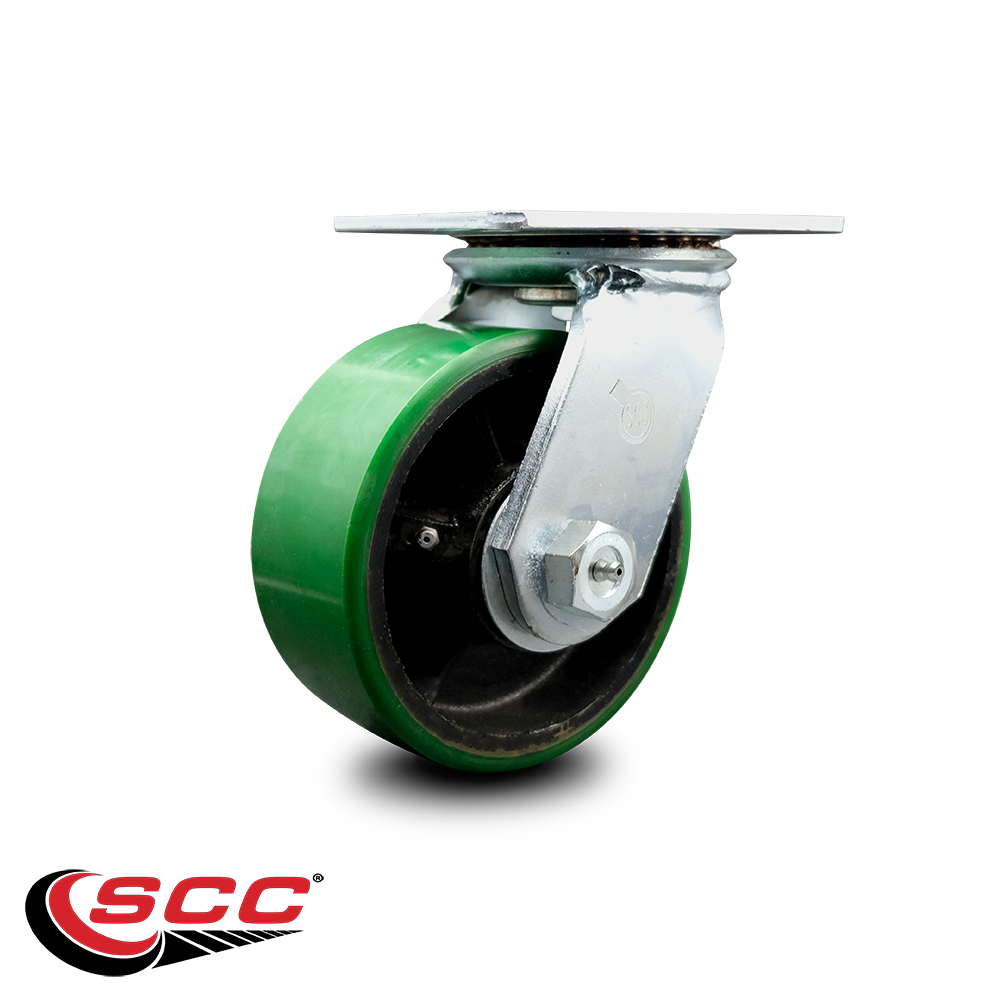

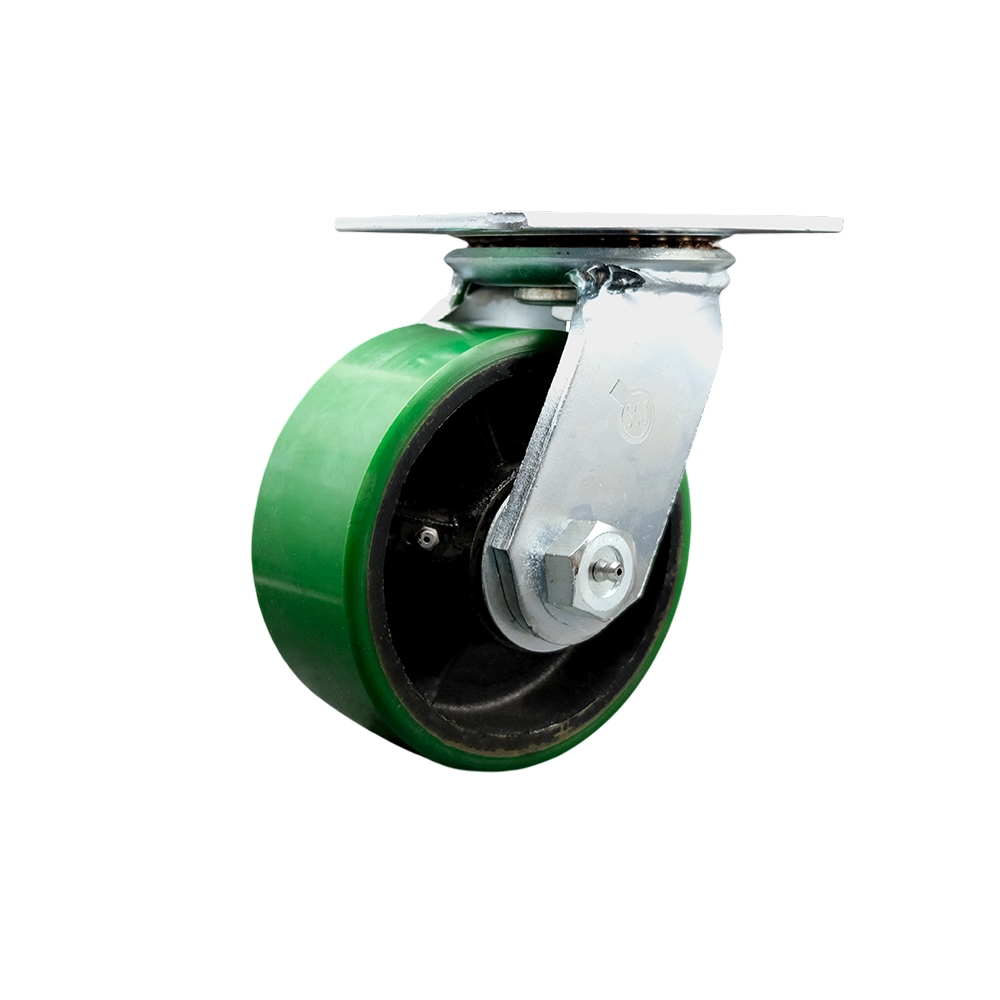

Heavy Duty Large Top Plate Polyurethane on Cast Iron Swivel Caster w/6" x 2.5" Green Wheel – 1,600 lbs Capacity/Caster – Series 55 - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series#55

SKU

SCC-55S625-PUR-GB

Condition

new

Quantity

1

UPC

011586608818

Harmonized code

8302.20.0000

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

13 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

1/2" (hardware not included)

Capacity

1600

Color

Swivel - No Brake - Green

Durometer

95A

Heat Capacity

-40 degrees F to 180 degrees F

Item Weight Unit of Measure

pounds

Load Height

7-1/2"

Lower Temperature

-40

Lower Temperature UofM

F

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

7-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Swivels

Yes

Size

6" Wheel

Top Plate Size

4-1/2" x 6-1/4"

Tread Width

2.5

Tread Width UofM

inches

Type

Swivel caster

Wheel Bearing

Roller Bearing

Wheel Diameter

6

Wheel Diameter UofM

inches

Wheel Material

Polyurethane Tread on Semi Steel Cast Iron Core

Wheel Size

6" x 2.5"

Wheel Type

Polyurethane on Cast Iron

Description

Listing is for one (1) Service Caster Series #55 swivel caster with a 6" diameter by 2.5" wide polyurethane on cast iron wheel capable of supporting 1,600 lbs./caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster Series 55 cold forged casters. The Service Caster Series #55 is ideal for heavy duty platform trucks, welding fixture tables, steel handling carts, tow line carts and power drawn equipment. The cold forged top plate and yoke base is bright zinc plated and treated for long wear and added strength. Wheels come in either phenolic- which are highly resistant to impact damage, providing protection for floors in commercial and industrial settings- or non-marking, non-marring polyurethane tread, which performs especially well on hard surfaces such as concrete, tile, and wood. • These Service Caster Series #55 Polyurethane on Cast Iron caster offer one wheel size and mounting height: 6” Wheel: 7-1/2”. • Weight capacity ranges from 1,600 lbs on the 6” caster & 1,800 lbs on the 8”. • Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on. • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely.
