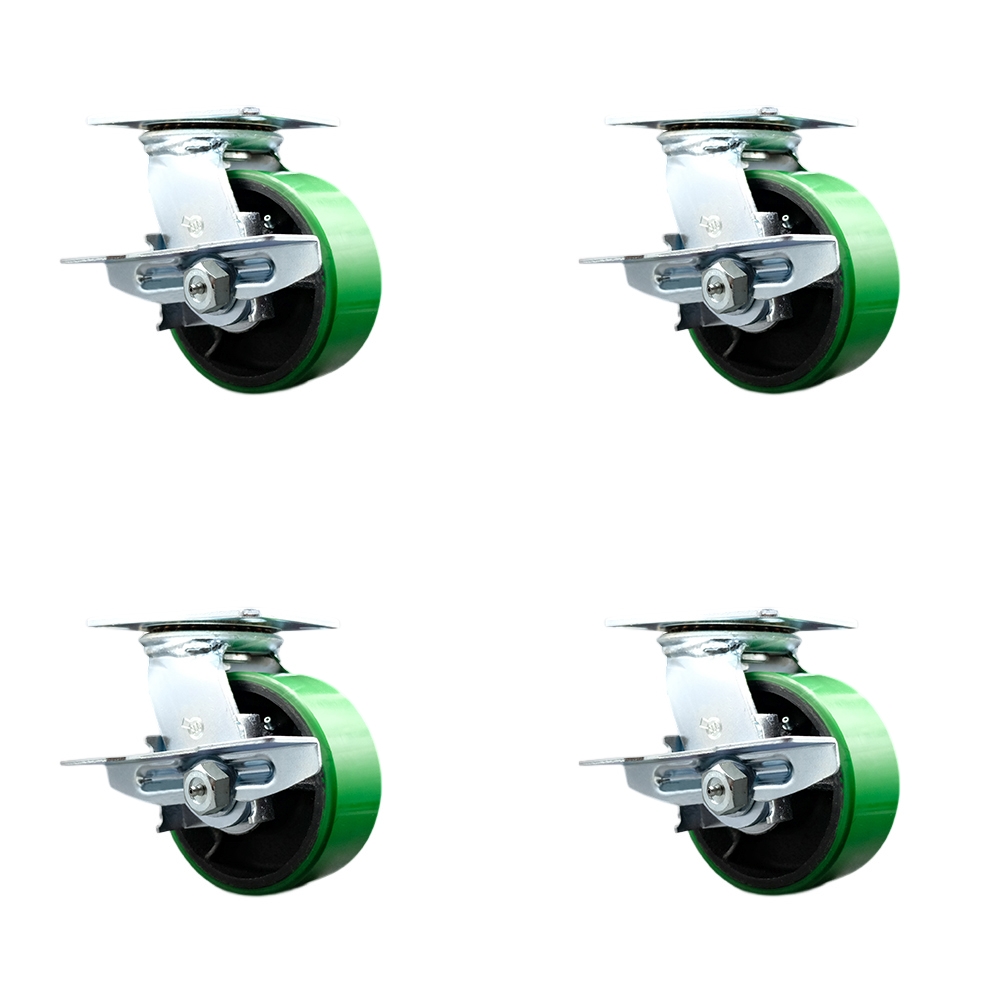

Heavy Duty Large Top Plate Polyurethane on Cast Iron Swivel Caster Set of 4 w/6" x 2.5" Green Wheels - Includes 4 Swivel w/Side Lock Brakes – 6,400lbs Total Capacity – Series 55 - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series#55

SKU

SCC-55S625-PUR-GB-SLB-4

Condition

new

Quantity

4

UPC

011586608849

Harmonized code

8302.20.0000

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

49 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

1/2" (hardware not included)

Capacity

6400

Color

4 Swivel - Side Lock Brakes - Green

Durometer

95A

Heat Capacity

-40 degrees F to 180 degrees F

Item Weight Unit of Measure

pounds

Load Height

7-1/2"

Locking Type

4 Side Lock Brakes

Lower Temperature

-40

Lower Temperature UofM

F

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

7-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

6" Wheel

Top Plate Size

4-1/2" x 6-1/4"

Tread Width

2.5

Tread Width UofM

inches

Type

(4) Swivel caster w/side lock brake

Wheel Bearing

Roller Bearing

Wheel Diameter

6

Wheel Diameter UofM

inches

Wheel Material

Polyurethane Tread on Semi Steel Cast Iron Core

Wheel Size

6" x 2.5"

Wheel Type

Polyurethane on Cast Iron

Description

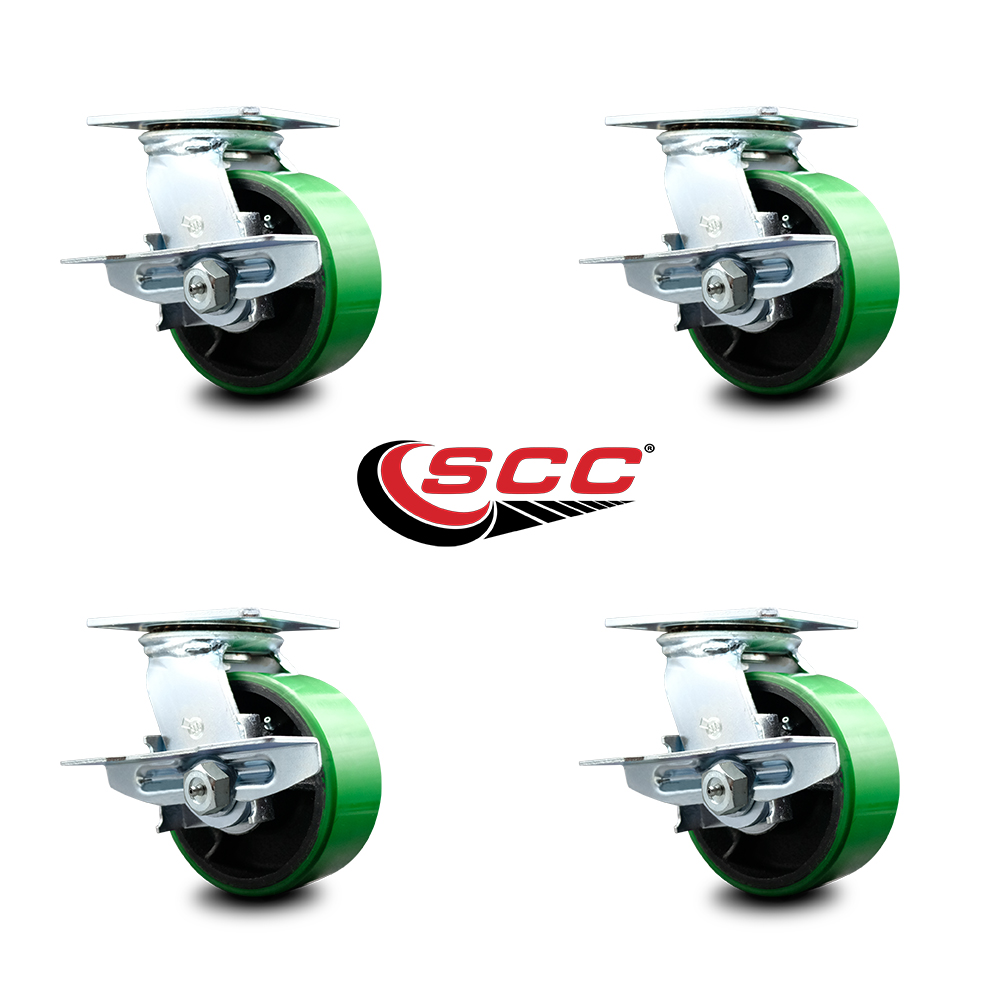

Listing is for a set of four (4) Service Caster Series #55 swivel casters with 6" diameter by 2.5" wide polyurethane on cast iron wheels with side lock brakes capable of supporting a total weight of 6,400 lbs. (1,600 lbs. per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster Series 55 cold forged casters. The Service Caster Series #55 is ideal for heavy duty platform trucks, welding fixture tables, steel handling carts, tow line carts and power drawn equipment. The cold forged top plate and yoke base is bright zinc plated and treated for long wear and added strength. Wheels come in either phenolic- which are highly resistant to impact damage, providing protection for floors in commercial and industrial settings- or non-marking, non-marring polyurethane tread, which performs especially well on hard surfaces such as concrete, tile, and wood. • These Service Caster Series #55 Polyurethane on Cast Iron caster offer one wheel size and mounting height: 6” Wheel: 7-1/2”. • Weight capacity ranges from 1,600 lbs on the 6” caster & 1,800 lbs on the 8”. • Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on. • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely.
