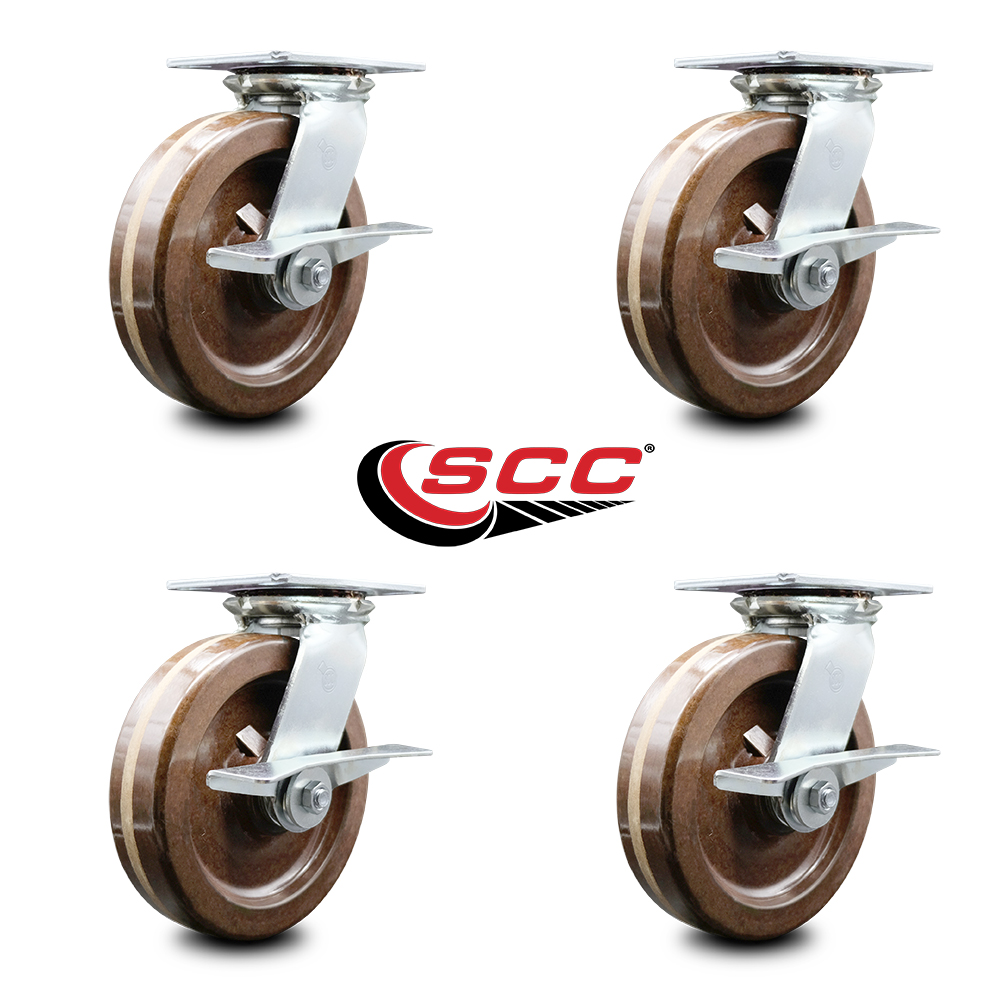

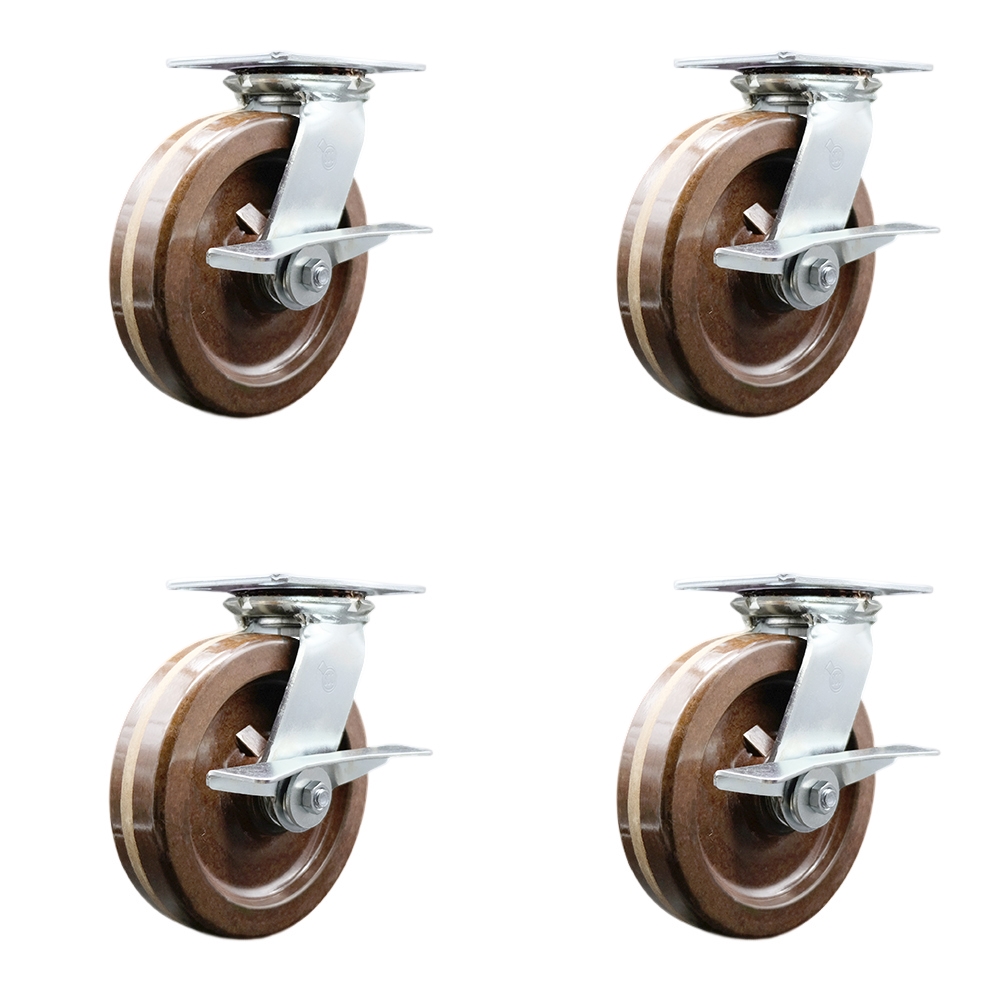

Heavy Duty Large Top Plate High Temperature Phenolic Swivel Caster Set of 4 w/8" x 2" Brown Wheels - Includes 4 Swivel w/Side Lck Brakes - 5000 lbs Total Capacity - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series#35

SKU

SCC-35S820-PHRHT-SLB-4

Condition

new

Quantity

4

UPC

011586582286

Harmonized code

8302.20.0000

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

51 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

1/2" (hardware not included)

Capacity

5000

Color

4 Swivel - Side Lock Brakes - Brown

Durometer

90D

Heat Capacity

475 degrees F continuous usage and 525 degrees F intermittent usage

Item Weight Unit of Measure

pounds

Load Height

9-1/2"

Locking Type

4 Top Lock Brakes

Lower Temperature

-45

Lower Temperature UofM

F

Maximum Temperature

525

Maximum Temperature UofM

F

Mounting Height

9-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

8" Wheel

Top Plate Size

4-1/2" x 6-1/4"

Tread Width

2

Tread Width UofM

inches

Type

(4) Swivel caster w/side lock brake

Wheel Bearing

Roller Bearing

Wheel Diameter

8

Wheel Diameter UofM

inches

Wheel Material

High Temperature Phenolic

Wheel Size

8" x 2"

Wheel Type

High Temperature Phenolic

Description

Listing is for a set of four (4) Service Caster Series #35 swivel casters with 8" diameter by 2" wide high temperature phenolic wheels with side lock brakes capable of supporting a total weight of 5,000 lbs. (1,250 lbs. per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster Series 35 high temperature phenolic wheel casters. The Service Caster Series #35 is ideal for autoclaves, bakery ovens and powder coating facilities. The zinc plated finish provides durability under any condition, and the high temp phenolic wheels- quieter than comparable steel wheels- have a high resistance to impact damage, providing protection for floors in commercial and industrial settings. This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 475°F continuous usage to 525°F intermittent usage. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. • These Service Caster Series #35 High Temperature Phenolic casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height. • Weight capacity ranges from 800 lbs on the 4” caster, 1000 lbs on the 5”, 1200 lbs on the 6” and 1250 lbs. on the 8”. • Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on. • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
