Heavy Duty Large Top Plate Glass Filled Nylon Swivel Caster w/Main. Free Bearings Set of 4 w/4" x 2" Black Wheels - Includes 2 Swivel with Brakes & 2 Swivel - 4800lbs Total Cpty - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series#35

SKU

SCC-35S420-GFNB-2-SLB-2

Condition

new

Quantity

4

UPC

011586590649

Harmonized code

8302.20.0000

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

32 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

1/2" (hardware not included)

Capacity

4800

Color

4 Swivel w/2 Side Lock Brakes

Durometer

85D

Heat Capacity

-45 degrees F to 190 degrees F

Item Weight Unit of Measure

pounds

Load Height

5-5/8"

Locking Type

2 Top Lock Brakes

Lower Temperature

-45

Lower Temperature UofM

F

Maximum Temperature

190

Maximum Temperature UofM

F

Mounting Height

5-5/8"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

4" Wheel

Top Plate Size

4-1/2" x 6-1/4"

Tread Width

2

Tread Width UofM

inches

Type

(2) swivel casters & (2) swivel casters w/side lock brakes

Wheel Bearing

Precision Ball Bearing

Wheel Diameter

4

Wheel Diameter UofM

inches

Wheel Material

Glass Filled Nylon

Wheel Size

4" x 2"

Wheel Type

Glass Filled Nylon

Description

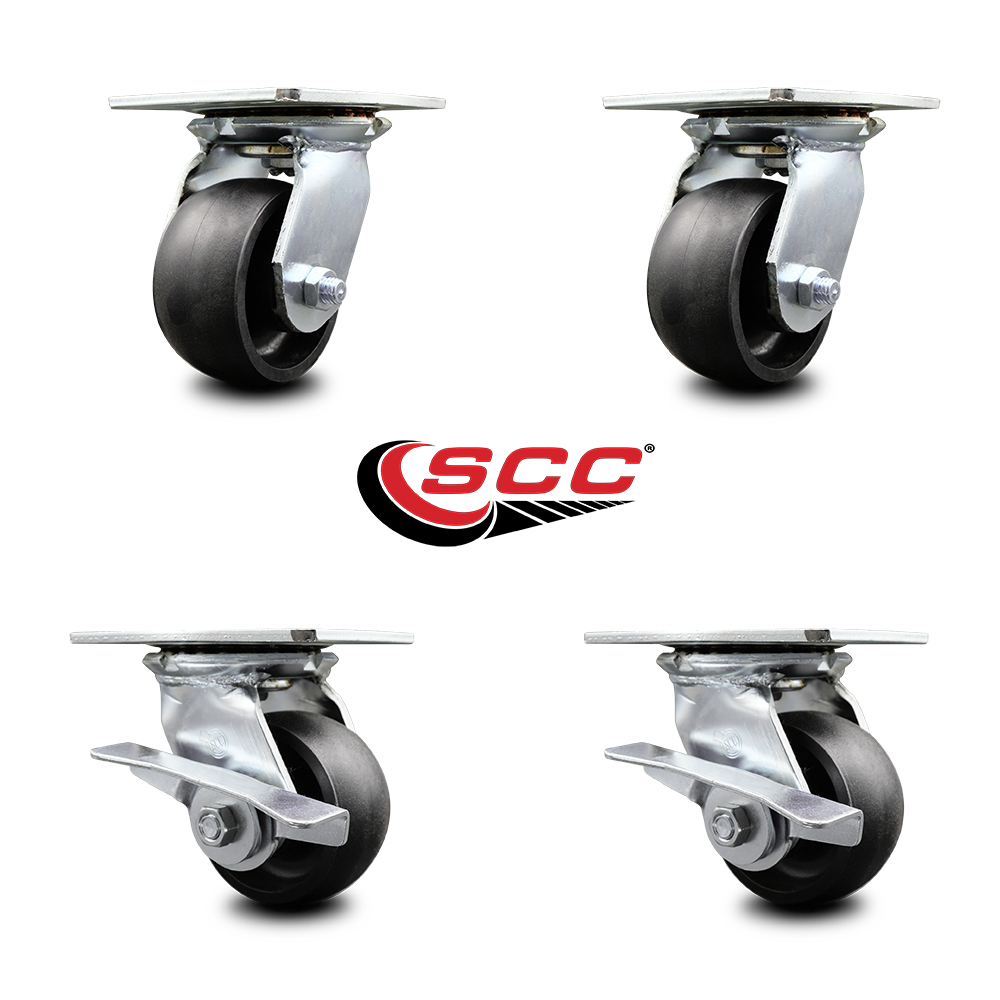

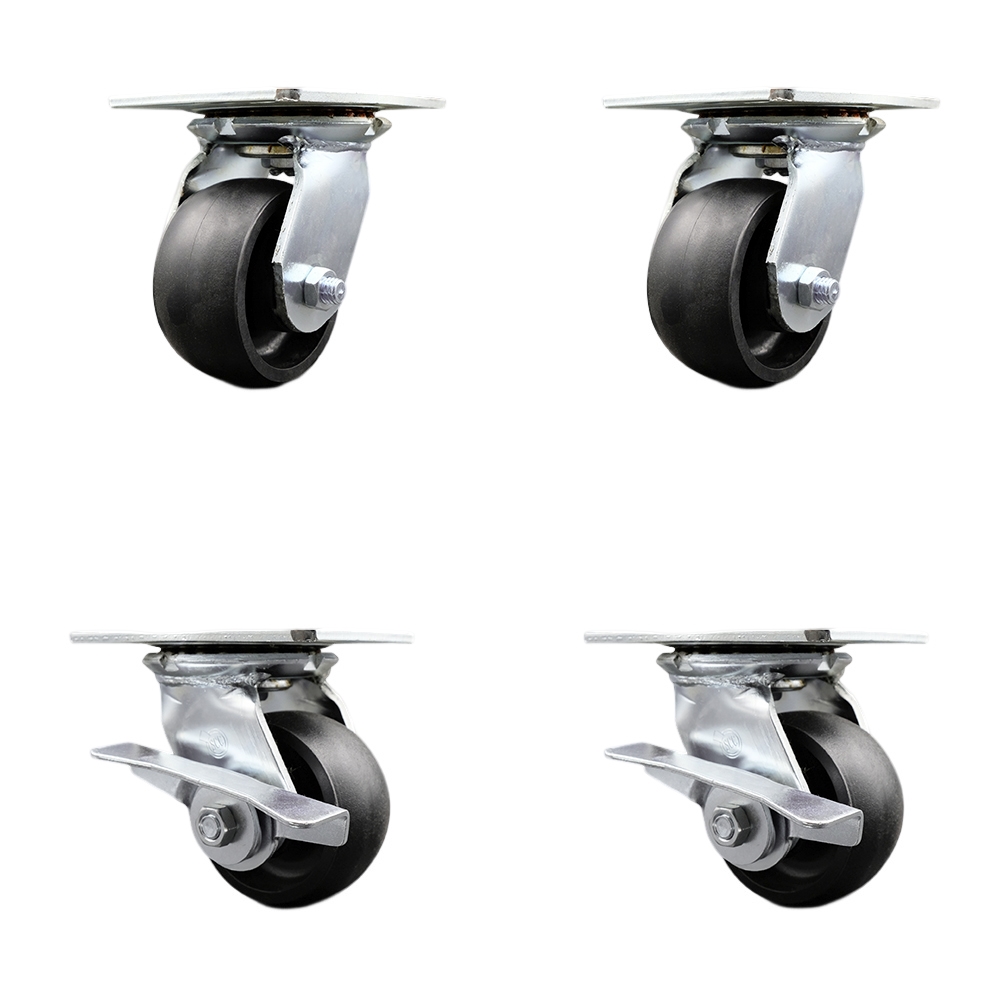

Listing is for a set of four (4) Service Caster Series #35 swivel casters, two (2) with side locking brakes, with 4" diameter by 2" wide glass filled nylon wheels and maintenance free precision ball wheel bearings. Capable of supporting a total weight of 3,200 lbs. (1,200 lbs./caster). When searching for a reliable and durable heavy duty solution to your caster needs, consider Service Caster’s Series 35 glass filled nylon casters. The Service Caster Series #35 is ideal for medium and heavy duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition and the glass filled nylon wheels provide very low rolling resistance, show a high resistance to many aggressive substances, will not flat spot, and under normal operating conditions are maintenance free. Resistant to most chemical and oils, these glass filled nylon wheels will keep you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #35 Glass Filled Nylon casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height. • Weight capacity ranges from 1200 lbs on the 4” caster, 1000 lbs on the 5”, 1200 lbs on the 6” and 1250 lbs. on the 8”. • Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on. • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
