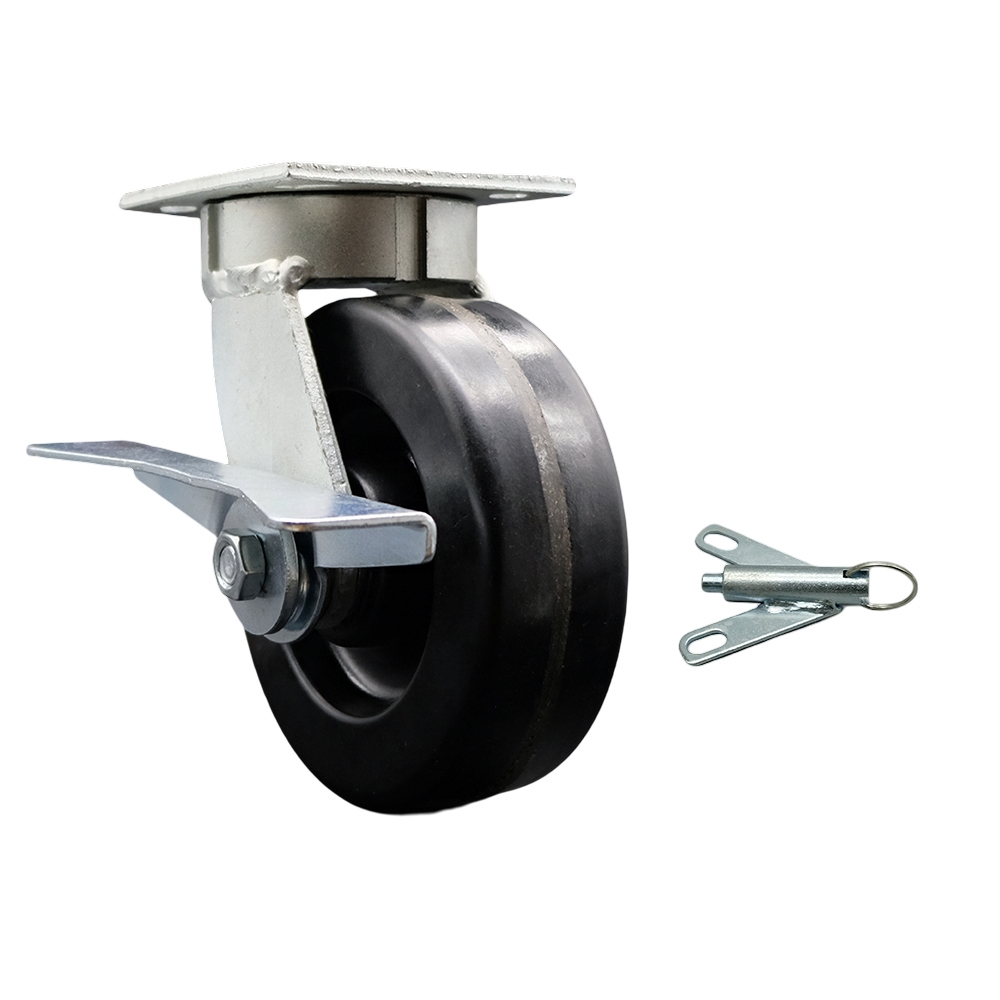

Heavy Duty Kingpinless Swivel Top Plate Caster with Side Lock Brake and Bolt on Swivel Lock and 6 Inch Phenolic Wheel with Ball Bearings - 1,200 lbs. Capacity/Caster - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series#KP30

SKU

SCC-KP30S620-PHB-SLB-BSL

Condition

new

Quantity

1

UPC

734005535013

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

10 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

3/8" (hardware not included)

Capacity

1200

Color

Swivel - Brake & Bolt on Swivel Lock - Black

Durometer

90D

Heat Capacity

-50 degrees F to 250 degrees F

Item Weight Unit of Measure

pounds

Load Height

7-1/2"

Locking Type

Side Lock Brake & Bolt on Swivel Lock

Lower Temperature

-50

Lower Temperature UofM

F

Maximum Temperature

250

Maximum Temperature UofM

F

Mounting Height

7-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

6" Wheel

Top Plate Size

4" x 4-1/2"

Tread Width

2

Tread Width UofM

inches

Type

Swivel caster w/side lock brake & bolt on swivel lock

Wheel Bearing

Ball Bearing

Wheel Diameter

6

Wheel Diameter UofM

inches

Wheel Material

Phenolic

Wheel Size

6" x 2"

Wheel Type

Phenolic

Description

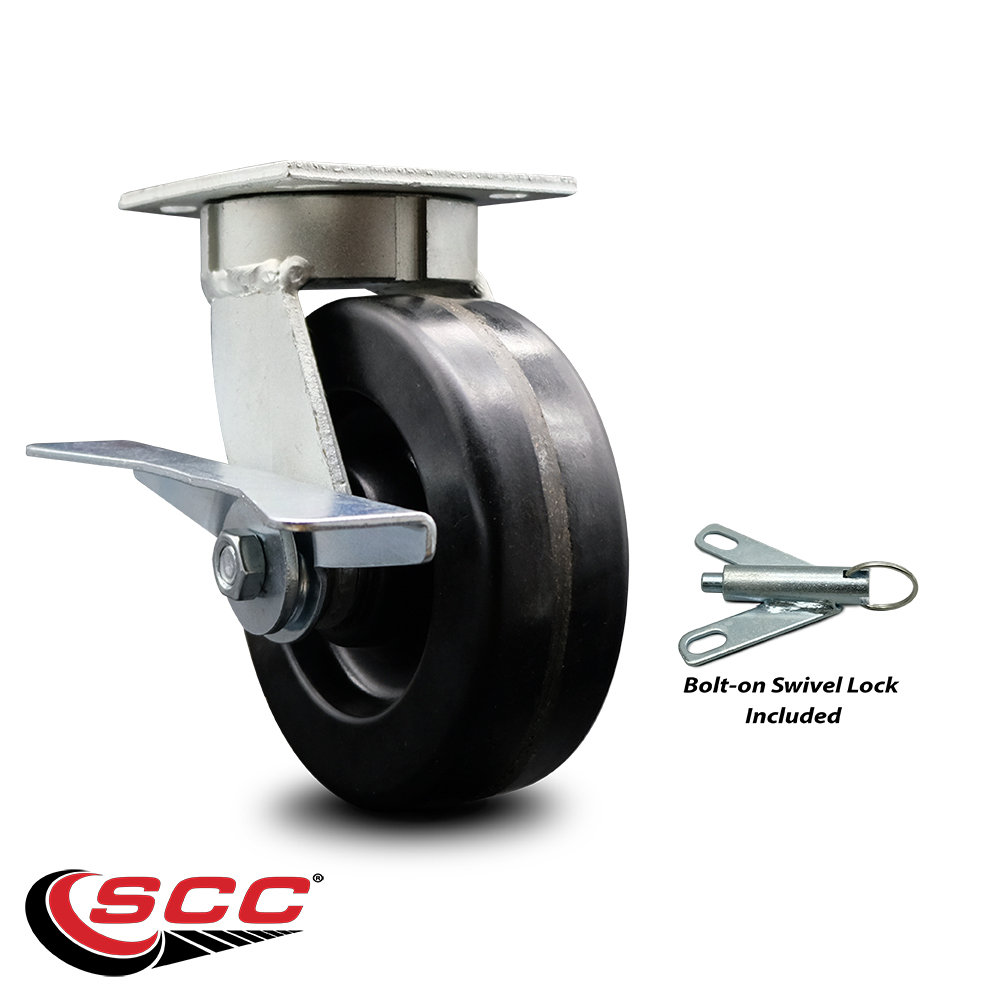

Listing is for one (1) Service Caster Series #KP30 swivel caster with a 6" diameter by 2" wide black phenolic wheel and maintenance free precision ball wheel bearings with a side lock brake & bolt on swivel lock capable of supporting 1,200 lbs./caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster Series KP30 phenolic wheel casters. The Service Caster Series KP30 is ideal for material handling, carts, shop projects and industrial equipment. The phenolic resin wheels are highly resistant to impact damage, providing protection for floors in commercial and industrial settings. Not only are they resistant to water, oil, and grease, but because they are non-metallic, are also spark proof. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward. • These Service Caster Series #KP30 Phenolic casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height. • Weight capacity ranges from 800 lbs on the 4” caster, 1000 lbs on the 5”, 1200 lbs on the 6” and 1250 lbs. on the 8”. • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
