Heavy Duty Kingpinless Swivel Caster Set of 4 with 6 Inch MudderTuffer Thermoplastic Rubber Wheels and Ball Bearings - Includes 2 Swivel with Brakes and Swivel Locks and 2 Rigid - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #KP30

SKU

KP30S620TPRB62022RS12BLKSLB-BSL-2-R-2

Condition

new

Quantity

4

UPC

734005555301

Dimensions (L x W x H)

12 x 12 x 12 in

Shipping weight

23 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

3/8" (hardware not included)

Capacity

2400

Caster Type

Plate

Color

2 Swivel w/2 Brakes & 2 Swivel Locks - 2 Rigid

Durometer

80A

Heat Capacity

-20 degrees F to 160 degrees F

Included Components Amazon

Caster

Item Weight Unit of Measure

pounds

Load Height

7-1/2"

Locking Type

Side Lock Brake & Bolt on Swivel Lock

Lower Temperature

-20

Lower Temperature UofM

F

Maximum Temperature

160

Maximum Temperature UofM

F

Mounting Height

7-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

6" Wheel

Top Plate Size

4" x 4-1/2"

Tread Width

2

Tread Width UofM

inches

Type

(2) Swivel caster w/side lock brake & bolt on swivel lock & (2) rigid casters

Wheel Bearing

Precision Ball Bearing

Wheel Diameter

6

Wheel Diameter UofM

inches

Wheel Material

Thermoplastic Rubber

Wheel Size

6" x 2"

Wheel Type

Thermoplastic Rubber

Description

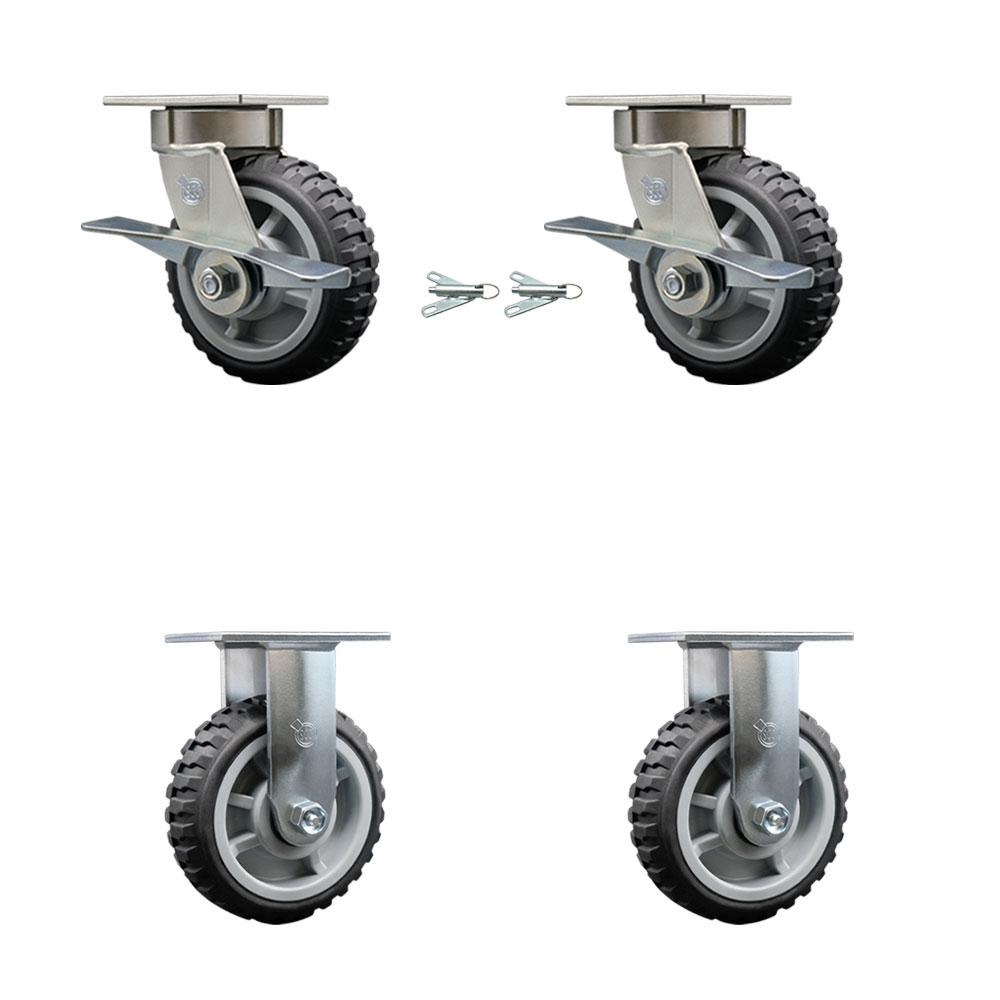

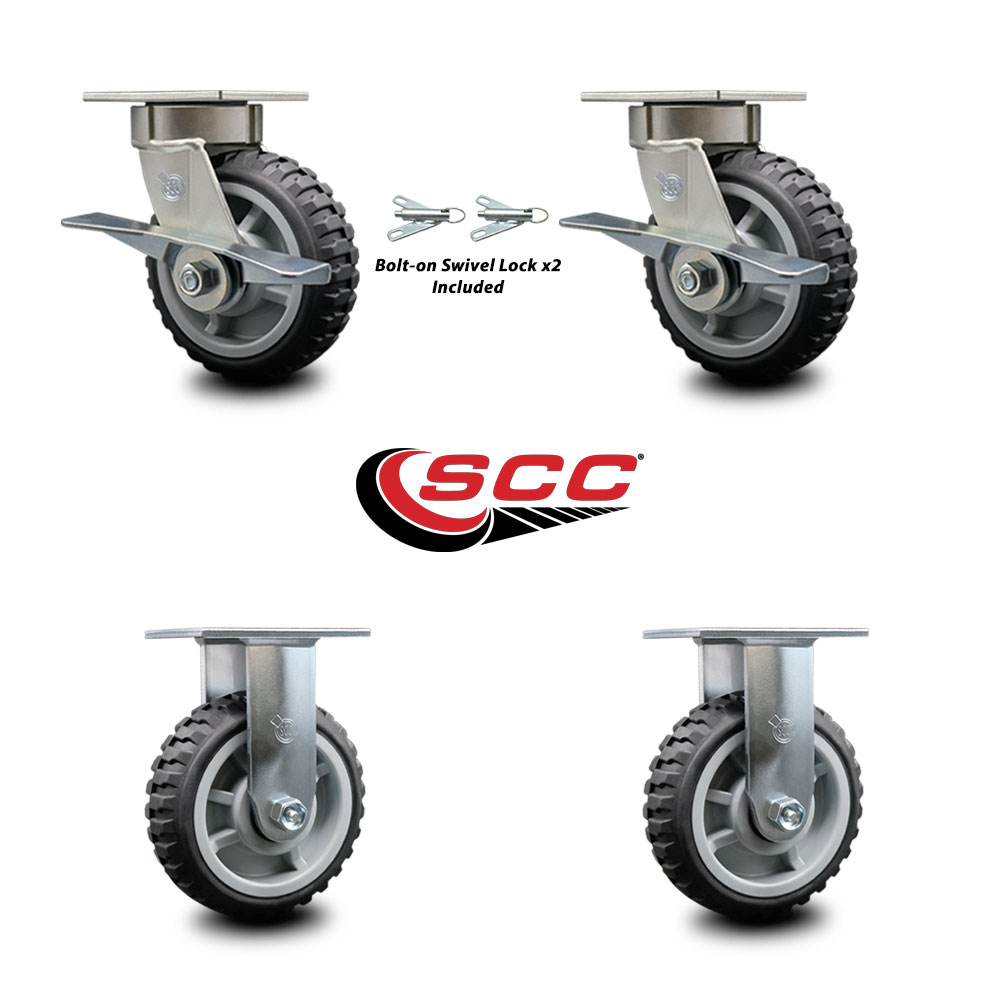

Listing is for a set of four (4) Service Caster Series #KP30 casters, two (2) swivel casters with side lock brakes & bolt on swivel locks and two (2) rigid casters, with 6" diameter by 2" wide MudderTuffer thermoplastic rubber wheel and maintenance free precision ball wheel bearings capable of supporting a total weight of 2,400 lbs. (600 lbs./caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series KP30 MudderTuffer thermoplastic rubber on polyolefin core casters. The rugged tread is made of thermoplastic rubber that is resistant to water, oils, and weather providing smooth, non-marking and non-marring performance with dual sealed precision ball bearings. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 casters are finely crafted with grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward. • These Service Caster Series #KP30 MudderTuffer casters offer a 6” wheel diameter and a 7-1/2” overall mounting height. • Weight Capacity: 600 lbs. Capacity Per Caster • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
