Heavy Duty Kingpinless Swivel Caster Set of 4 with 5 Inch V-Groove Semi Steel Cast Iron Wheels and Bronze Bearings-Includes 2 Swivel with Brake & 2 Swivel-4,400lbs. Total Capacity-Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series#KP30

SKU

SCC-KP30S520-VGBZ-2-SLB-2

Condition

new

Quantity

4

UPC

734005543872

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

38 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

3/8" (hardware not included)

Capacity

4400

Color

4 Swivel w/2 Side Lock Brakes

Heat Capacity

-45 degrees F to 600 degrees F

Item Weight Unit of Measure

pounds

Load Height

6-1/2"

Locking Type

2 Side lock brakes

Lower Temperature

-45

Lower Temperature UofM

F

Maximum Temperature

600

Maximum Temperature UofM

F

Mounting Height

6-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

5" Wheel

Top Plate Size

4" x 4-1/2"

Tread Width

2

Tread Width UofM

inches

Type

(2) swivel casters & (2) swivel casters w/side lock brakes

Wheel Bearing

Bronze Bearing

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Semi Steel Cast Iron V-Groove

Wheel Size

5" x 2"

Wheel Type

Semi Steel Cast Iron V-Groove

Description

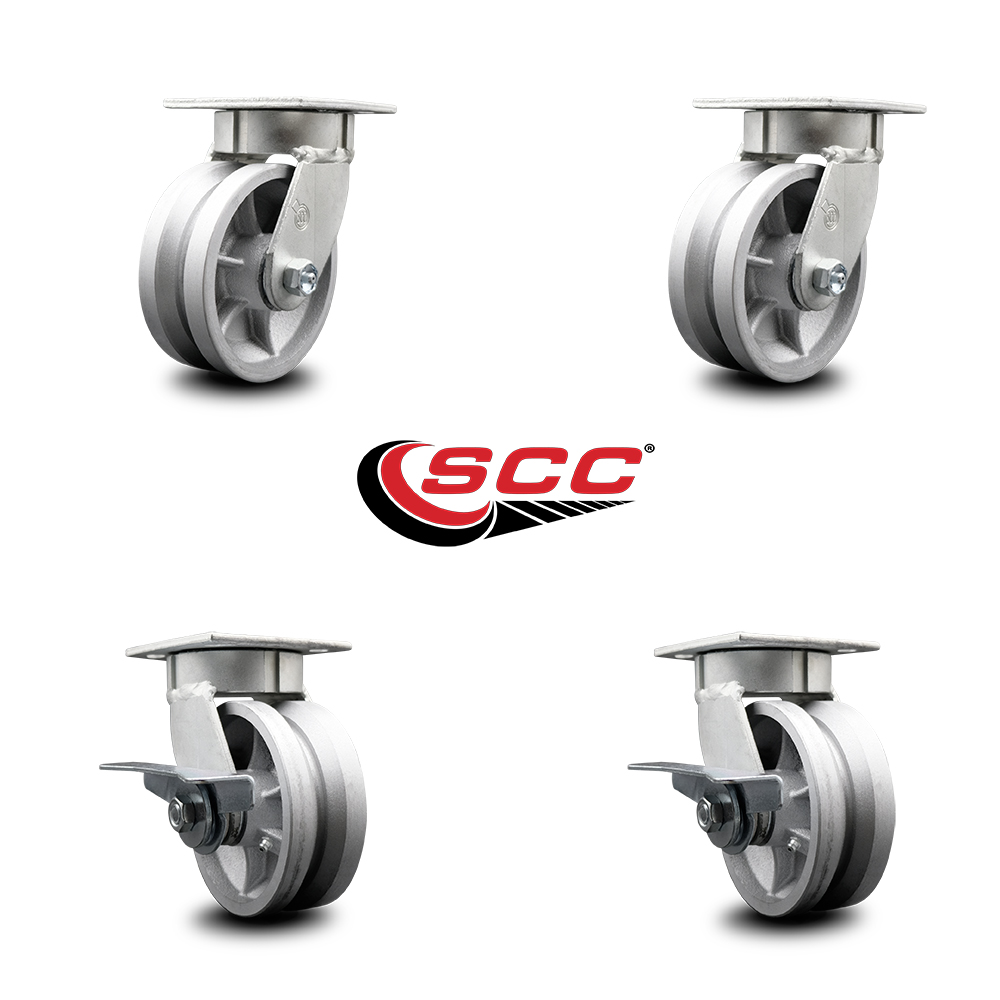

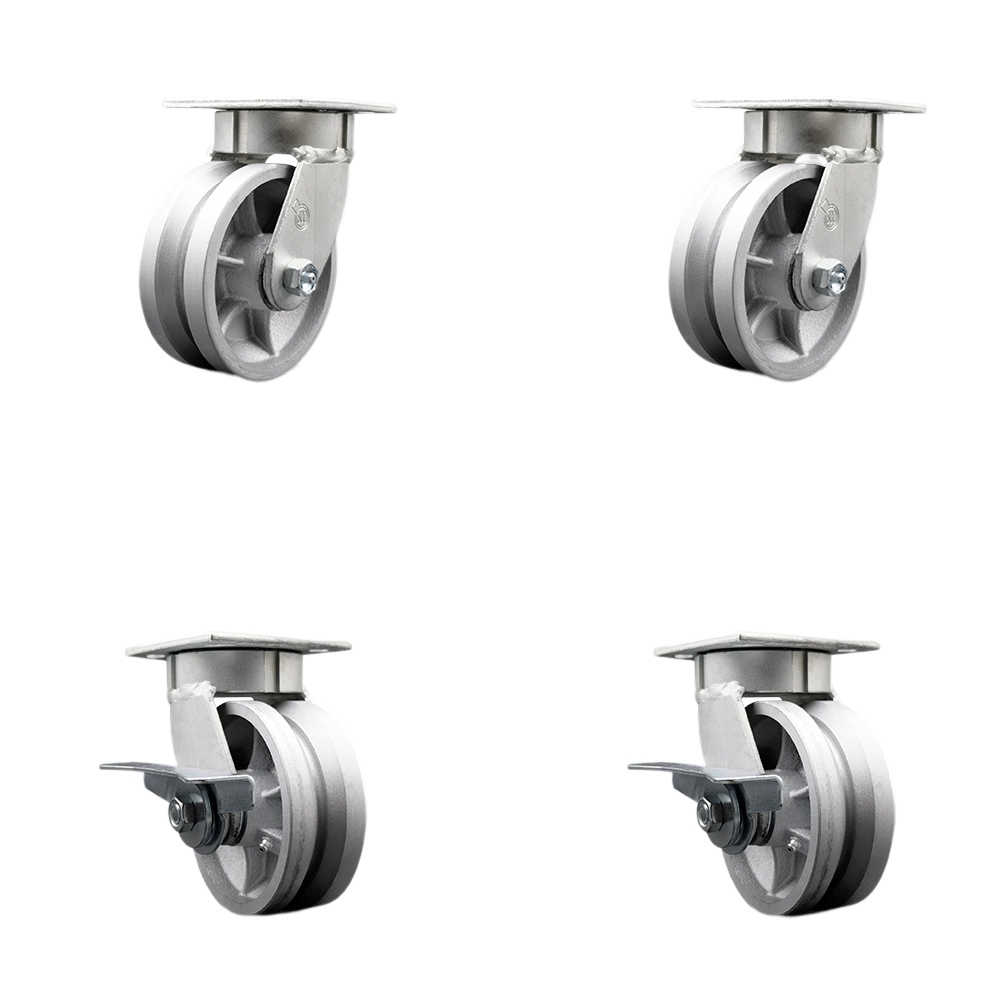

Listing is for a set of four (4) Service Caster Series #KP30 swivel casters, two (2) with side locking brakes, with 5" diameter by 2" wide silver v-groove semi steel cast iron wheel and bronze wheel bearings capable of supporting a total weight of 4,400 lbs. (1,100 lbs./caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series KP30 semi steel cast iron v-groove wheel casters. The Service Caster Series KP30 v-groove wheel is designed to roll on 45 degree angled track, and also has a flat face suitable for non-tracked use. The semi-steel cast iron wheel is built to withstand high capacity, heavy loads up to 1250lbs and in temperatures up to 600°F. An economic choice over steel, semi-steel wheels are abrasion resistant and rugged. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 casters are finely crafted with grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward. • These Service Caster Series #KP30 V Groove Semi Steel casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height. • Weight Capacity: 4": 800 lbs Capacity/Caster, 5": 1,100 lbs Capacity/Caster, 6": 1,200 lbs. Capacity/Caster, and 8": 1,250 lbs Capacity/Caster • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
