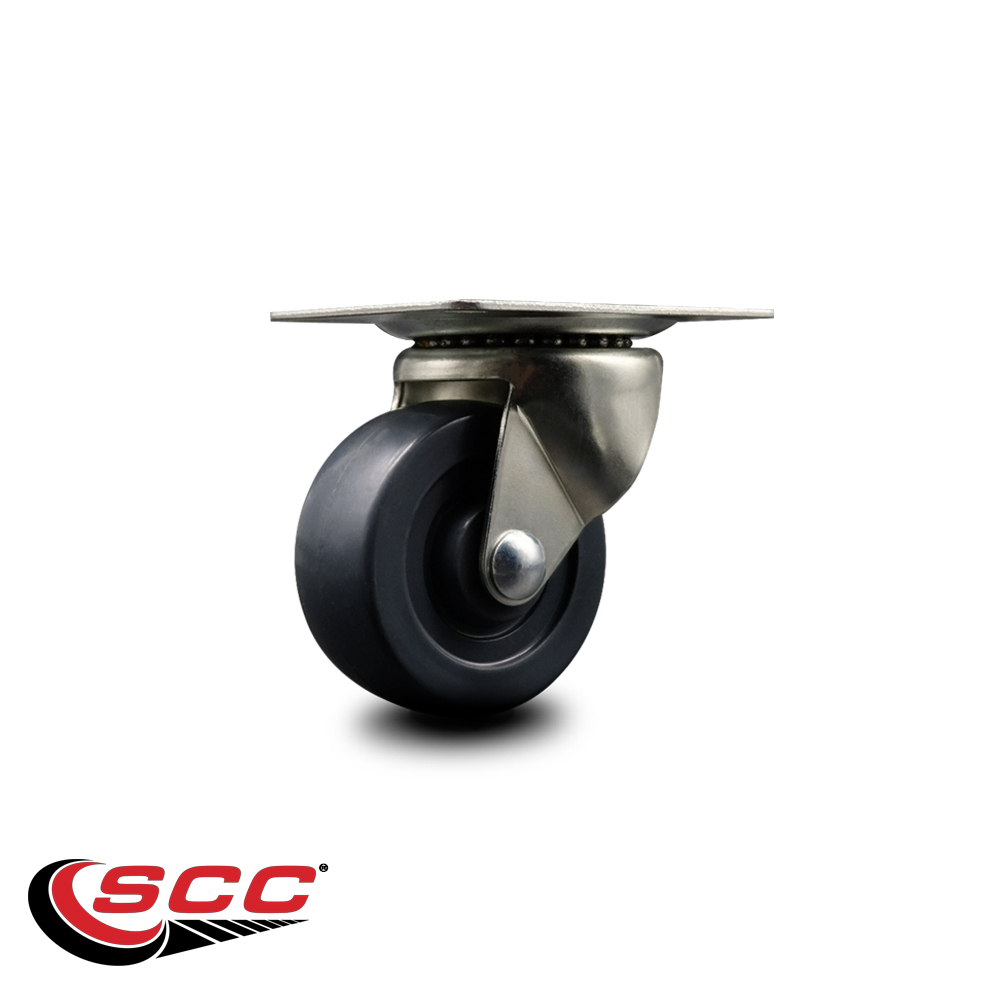

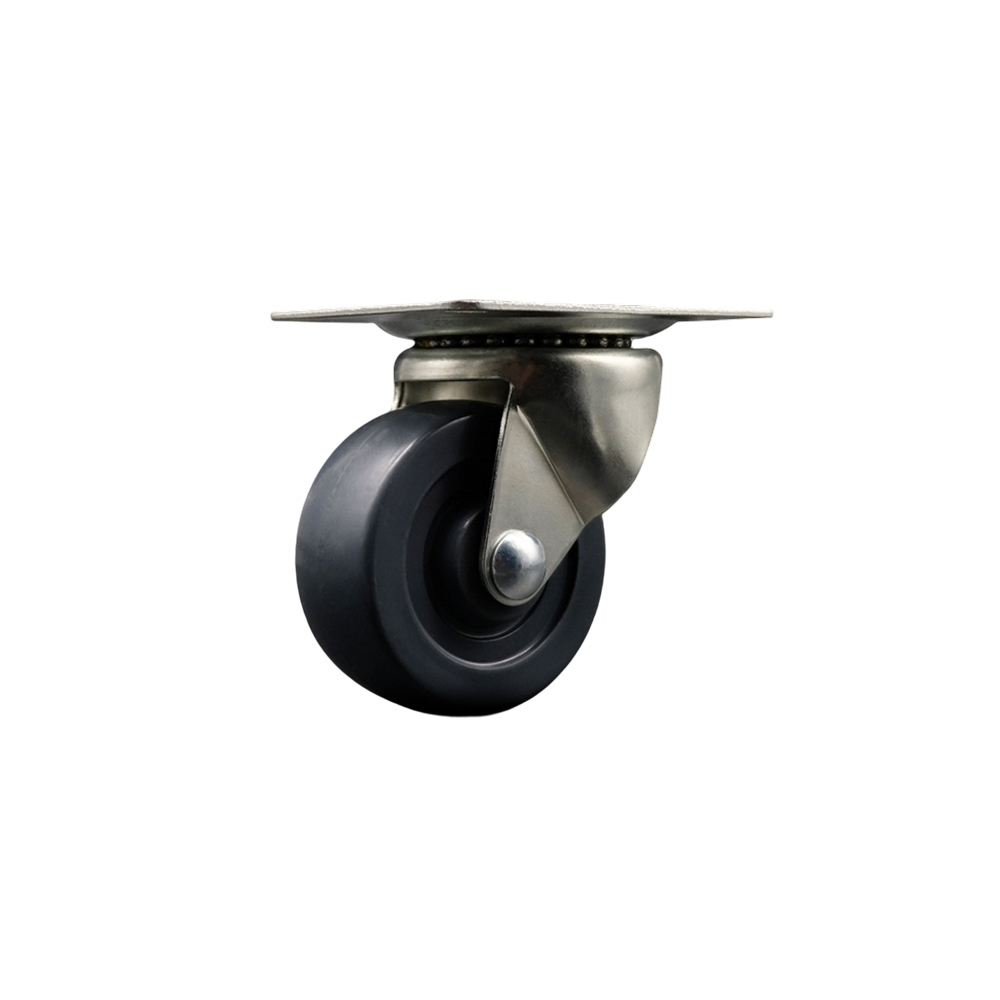

General Duty Dolly Swivel Top Plate Caster - 3 Inch by 1-1/4 Inch Hard Rubber Wheel - 225 lbs. Capacity Per Caster - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #10

SKU

SCC-10S314-HRS-GRY

Condition

new

Quantity

1

UPC

734005083439

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

3 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

5/16" (hardware not included)

Capacity

225

Color

Swivel - No Brake - 1 PC

Durometer

55D

Heat Capacity

-40 degrees F to 160 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

3-13/16"

Lower Temperature

-40

Lower Temperature UofM

F

Material Type

Hard Rubber

Maximum Temperature

160

Maximum Temperature UofM

F

Mounting Height

3-13/16"

Mounting Type

Top Plate

Plating/Coating

Zinc Plated Finish

Casters Mounting Method

Plate

Swivels

Yes

Size

3" Wheel

Top Plate Size

3-1/8" x 4-1/8"

Tread Width

1.25

Tread Width UofM

inches

Type

Swivel caster

Wheel Bearing

Plain Bore

Wheel Diameter

3

Wheel Diameter UofM

inches

Wheel Material

Hard Rubber

Wheel Size

3" x 1-1/4"

Wheel Type

Hard Rubber

Description

Listing is for one (1) Service Caster Series #10 swivel caster with a 3" diameter by 1-1/4" wide hard rubber wheel capable of supporting 225lbs./caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 10 casters. The Service Caster 10 series is ideal for dollies, store fixtures, furniture, material handling equipment, institutional equipment, and industrial equipment. This economical mobility solution features a zinc finish on all metal parts, is RoHS compliant, and has a nickel plated kingpin to allow for smooth swiveling. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #10 Hard Rubber casters offer various wheel sizes and mounting heights: 2” Wheel: 2-1/2” mounting height; 3” wheel: 3-13/16” mounting height; 4” wheel: 5” mounting height. • Weight Capacity: 2" Wheel: 125 lbs. Capacity/Caster; 3" Wheel: 225 lbs. Capacity/Caster; 4" Wheel: 300 lbs. Capacity/Caster • Top plate measures at 3-1/8" x 4-1/8" and can either be bolted or welded on. • Bolt Hole Pattern: 2-3/8" x 3-3/8" to 3-7/16"
