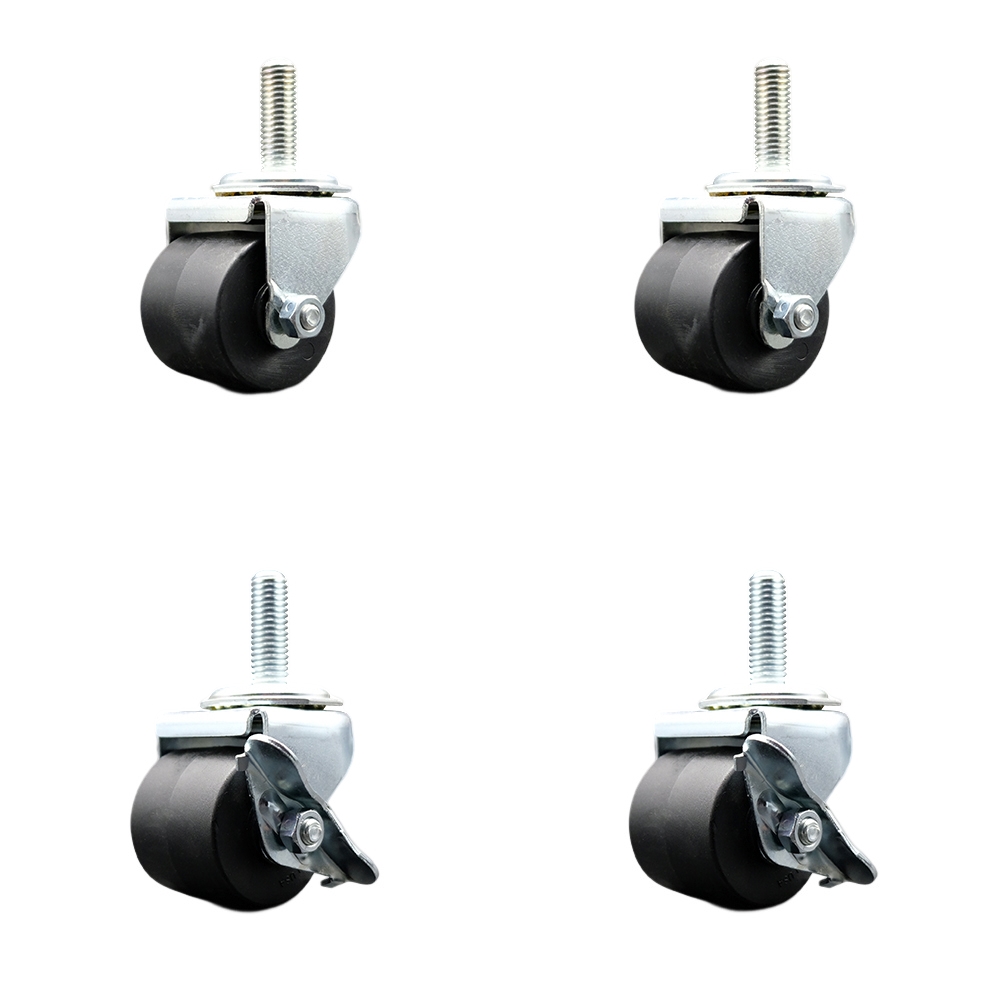

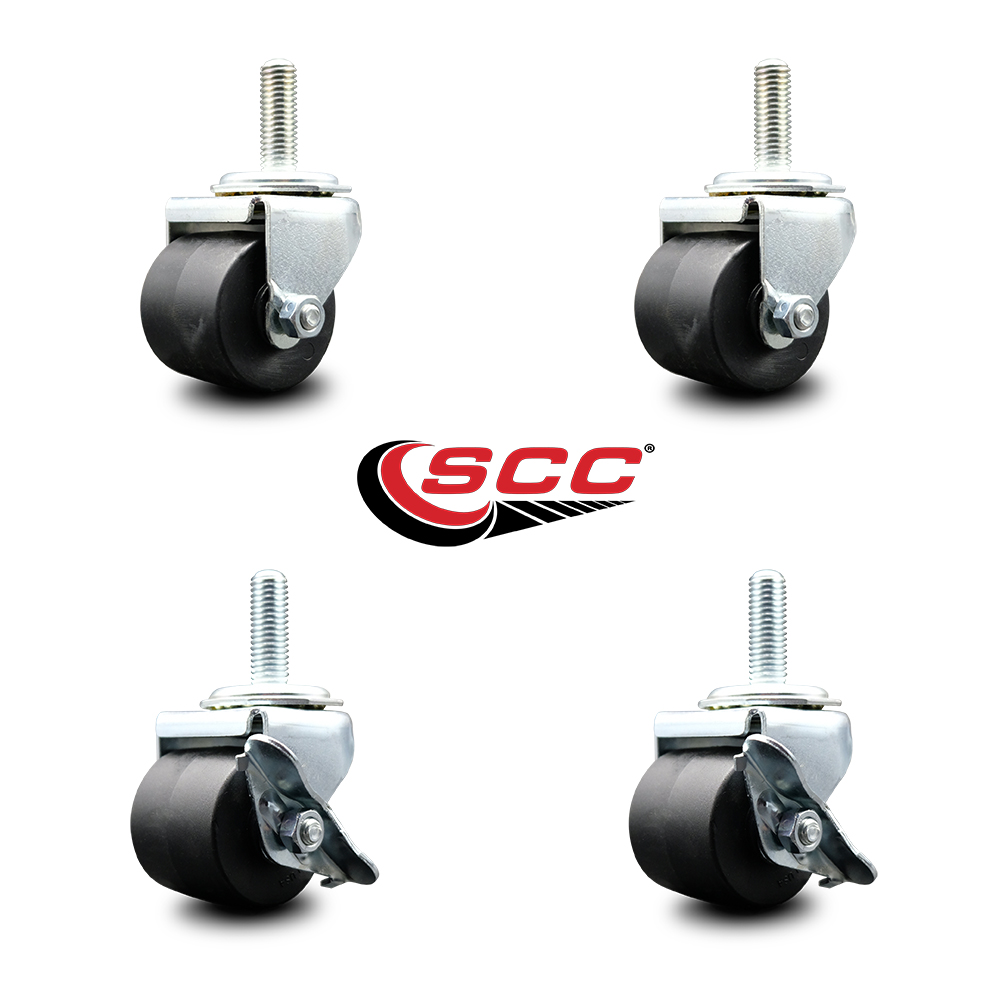

Franke 19002529 - FRGSF-30G2 18002763 - Replacement Caster Set - Includes 2 Swivel Casters with Brakes and 2 Swivel Casters - Set of 4 - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #04

SKU

FRA-SCC-TS04S211316-POS-SLB-121315-2-S-2

Condition

new

Quantity

4

UPC

734005056150

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

5 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bore Diameter UofM

inches

Capacity

1200

Color

4 Swivel w/2 Top Lock Brakes - 4 PCS

Feature

2 casters with side lock brakes

Heat Capacity

-20 degrees F to 180 degrees F

Item Weight Unit of Measure

pounds

Load Height

2-3/4"

Locking Type

(2) Side lock brakes

Lower Temperature

-20

Lower Temperature UofM

F

Maximum Temperature

250

Maximum Temperature UofM

F

Mounting Height

2-3/4"

Mounting Type

Threaded Stem

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Stem

Locking Castersor Wheels

Yes

Swivels

Yes

Size

2" wheel

Stem

1/2" diameter - 13 TPI x 1-1/2" length threaded stem

Stem Diameter

1/2"

Stem Length

1.5

Stem Length UofM

inches

Stem Type

Threaded Stem

Thread Length

1.5

Tread Width

1.82

Tread Width UofM

inches

Type

(2) swivel casters & (2) swivel casters w/side lock brakes

Wheel Bearing

Plain Bore

Wheel Diameter

2

Wheel Diameter UofM

inches

Wheel Material

Polyolefin

Wheel Size

2" x 1-13/16"

Wheel Type

Polyolefin

Description

High quality casters for Franke FRGSF-30G2 18002763 Grill Side Freezer. Listing is for a set of four (4) Service Caster Series #04 swivel casters with brakes and 2 inch diameter by 1-13/16 inch wide polyolefin wheels. Set includes two (2) swivel casters and two (2) swivel casters with brakes. These Franke replacement casters have 1/2 inch diameter 13 TPI by 1-1/2 inch long threaded stems. Supports 1,200 total pounds (lbs.) at 300 pounds (lbs.) per caster. When searching for a reliable and durable solution to your Franke FRGSF-30G2 18002763 Grill Side Freezer replacement caster needs, consider Service Caster Series 04 threaded stem polyolefin wheel casters. The Service Caster Series #04 features polyolefin wheels that have a high resistance to shock and impact damage while also being non-marking protecting floors. Finely crafted with a bright zinc plated finish, these low profile Service Caster high performance Franke replacement casters offer polyolefin wheels that are best used on smooth, flat, and clear industrial or commercial settings where materials may be stationary for long periods. These versatile casters are ideal for a wide range of applications, but are commonly used on Franke FRGSF-30G2 18002763 Grill Side Freezers. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Fits Franke FRGSF-30G2 18002763 Grill Side Freezer • High resistance to shock and impact damage • Weight Capacity: 1200 • Threaded Stem Dimensions: 1/2" - 13 x 1-1/2"
