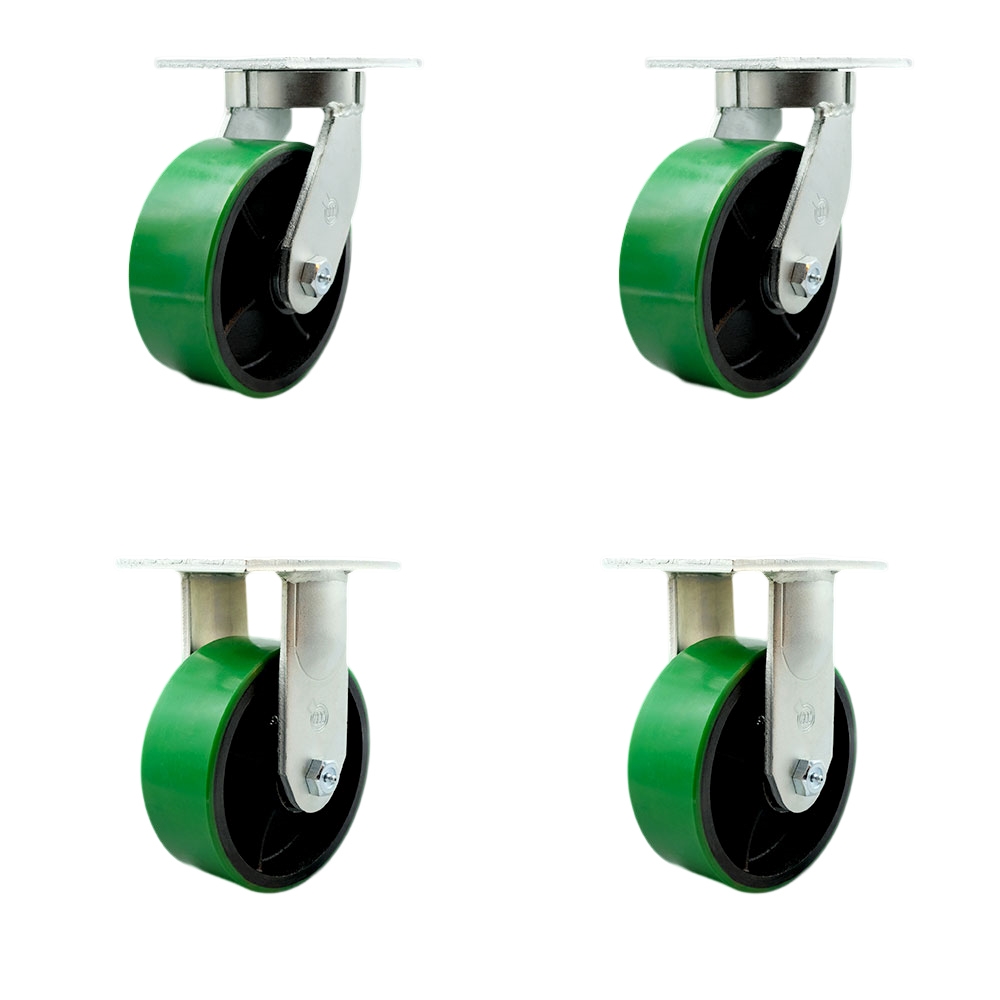

Extra Heavy Duty Kingpinless 8”x3” Green Poly on Cast Iron Swivel Caster Set for Cranes, Gantries, Hoists, and Winches-2 Swivel and 2 Rigid Casters-2,500lbs Per Caster-Set of 4-Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #92

SKU

CRAN-SCC-KP92S830-PUR-GB-2-R-2

Condition

new

Quantity

4

UPC

734005228434

Harmonized code

8302.20.0000

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

98 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

1/2" (hardware not included)

Capacity

2500

Color

2 Swivel - 2 Rigid

Durometer

95A

Heat Capacity

-40 degrees F to 180 degrees F

Item Weight Unit of Measure

pounds

Load Height

10-1/2"

Lower Temperature

-40

Lower Temperature UofM

F

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

10-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Swivels

Yes

Size

8" Green Poly on Cast Iron Wheel

Top Plate Size

5-1/4" x 7-1/4"

Tread Width

3

Tread Width UofM

inches

Type

(2) swivel casters & (2) rigid casters

Wheel Bearing

Roller Bearing

Wheel Diameter

8

Wheel Diameter UofM

inches

Wheel Material

Polyurethane Tread on Metal Core

Wheel Size

8" x 3"

Wheel Type

Polyurethane Tread on Metal Core

Description

Listing is for a set of four (4) Service Caster Series #92 casters with 8" diameter, 3" wide green polyurethane tread on metal core wheels. Set includes two (2) swivel casters and two (2) rigid casters. Supports 10000 total pounds (lbs) at 2500 pounds (lbs) per caster. When searching for a reliable and durable solution for extra heavy duty projects, consider Service Caster’s Series 92 top plate polyurethane on metal wheel casters. The Service Caster Series #92 is ideal for cranes, gantry, hoists, winches, material handling, carts and industrial equipment. The non-marking, non-marring polyurethane tread performs especially well on hard surfaces such as concrete, tile, and wood, while the metal core wheel stands up to heavier loads with a stable and secure roll. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series 92 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features ½” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series #92 top plate casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 92, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • The Kingpinless Series 92 polyurethane casters offer various wheel sizes and mounting heights- 6” wheel (8” mounting height), 8” wheel (10-1/2” mounting height), 10” wheel (12-1/2” mounting height) and 12” wheel (15-1/2” mounting height) and are made of a non-marking, non-marring green polyurethane tread on a black metal core which performs especially well on hard surfaces such as concrete, tile, and wood and stands up to heavier loads with a stable and secure roll. • Weight capacity ranges from 2000 lbs on the 6” caster, 2500 lbs on the 8”, 3000 lbs on the 10” and 3500 lbs. on the 12”. • Top plate measures at 5-1/4" x 7-1/4" with a bolt hole pattern of 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8" and can either be bolted or welded on. • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
