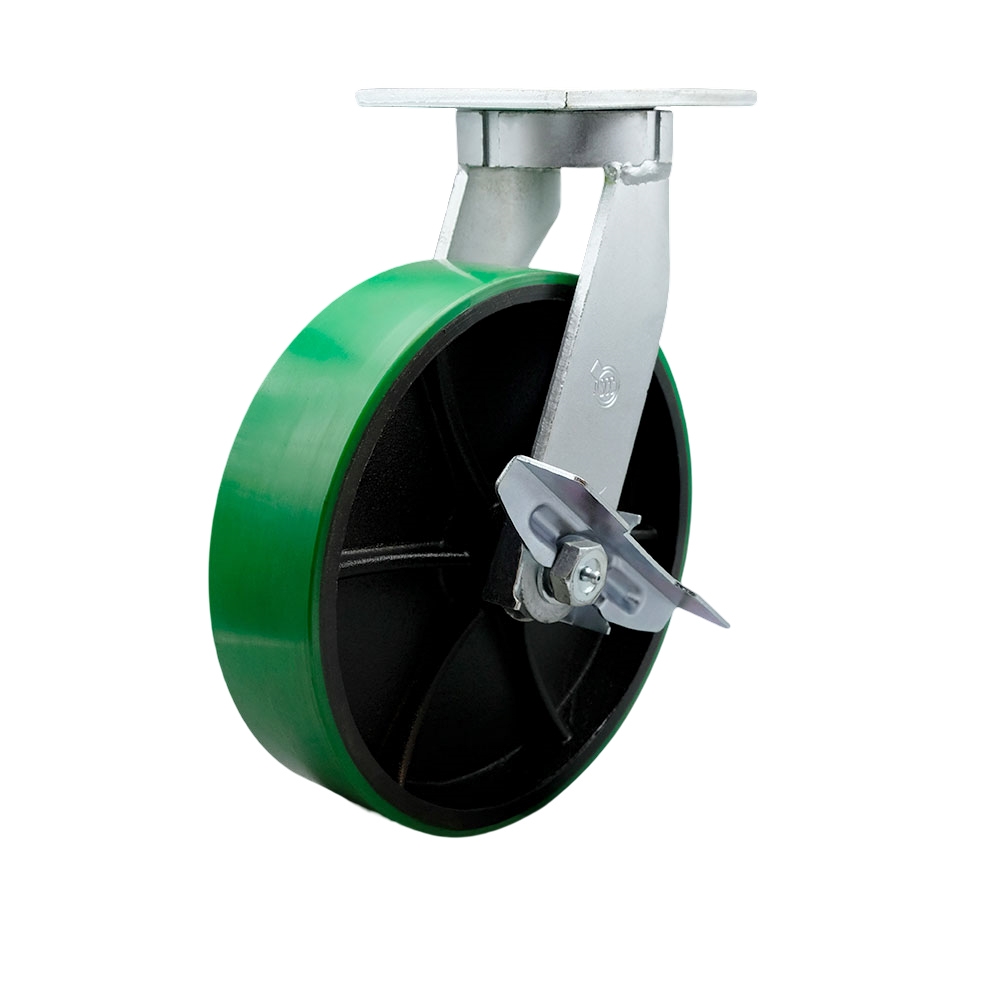

Extra Heavy Duty Kingpinless 10” x 3” Green Poly on Cast Iron Swivel Caster with Bolt on Swivel Lock and Brake for Cranes, Gantries, Hoists, and Winches – 3,000 lbs Per Caster - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #92

SKU

CRAN-SCC-KP92S1030-PUR-GB-SLB-BSL

Condition

new

Quantity

1

UPC

734005225990

Harmonized code

8302.20.0000

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

36 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

1/2" (hardware not included)

Capacity

3000

Color

Swivel - Side Lock Brake and Bolt On Swivel

Durometer

95A

Feature

Side lock brake & Bolt on swivel lock

Heat Capacity

-40 degrees F to 180 degrees F

Item Weight Unit of Measure

pounds

Load Height

12-1/2"

Locking Type

Side lock brake & Bolt on swivel lock

Lower Temperature

-40

Lower Temperature UofM

F

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

12-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

10" Green Poly on Cast Iron Wheel

Top Plate Size

5-1/4" x 7-1/4"

Tread Width

3

Tread Width UofM

inches

Type

Swivel caster w/side lock brake & bolt on swivel lock

Wheel Bearing

Roller Bearing

Wheel Diameter

10

Wheel Diameter UofM

inches

Wheel Material

Polyurethane Tread on Metal Core

Wheel Size

10" x 3"

Wheel Type

Polyurethane Tread on Metal Core

Description

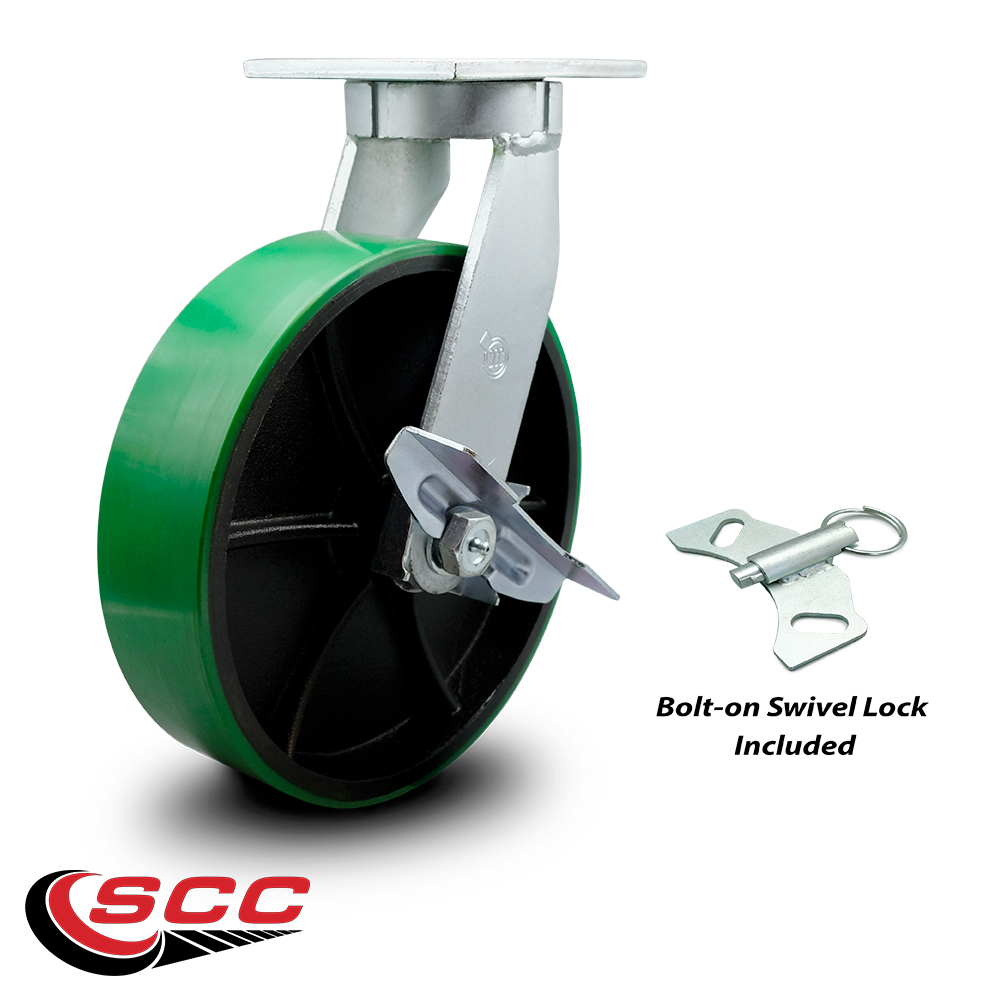

Listing is for one (1) Service Caster Series #92 swivel caster with a side lock brake, a bolt on swivel lock, and a 10" diameter, 3" wide green polyurethane tread on metal core wheel. Supports 3000 pounds (lbs) per caster. When searching for a reliable and durable solution for extra heavy duty projects, consider Service Caster’s Series 92 top plate polyurethane on metal wheel casters. The Service Caster Series #92 is ideal for cranes, gantry, hoists, winches, material handling, carts and industrial equipment. The non-marking, non-marring polyurethane tread performs especially well on hard surfaces such as concrete, tile, and wood, while the metal core wheel stands up to heavier loads with a stable and secure roll. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series 92 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features ½” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series #92 top plate casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 92, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • The Kingpinless Series 92 polyurethane casters offer various wheel sizes and mounting heights- 6” wheel (8” mounting height), 8” wheel (10-1/2” mounting height), 10” wheel (12-1/2” mounting height) and 12” wheel (15-1/2” mounting height) and are made of a non-marking, non-marring green polyurethane tread on a black metal core which performs especially well on hard surfaces such as concrete, tile, and wood and stands up to heavier loads with a stable and secure roll. • Weight capacity ranges from 2000 lbs on the 6” caster, 2500 lbs on the 8”, 3000 lbs on the 10” and 3500 lbs. on the 12”. • Top plate measures at 5-1/4" x 7-1/4" with a bolt hole pattern of 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8" and can either be bolted or welded on. • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
