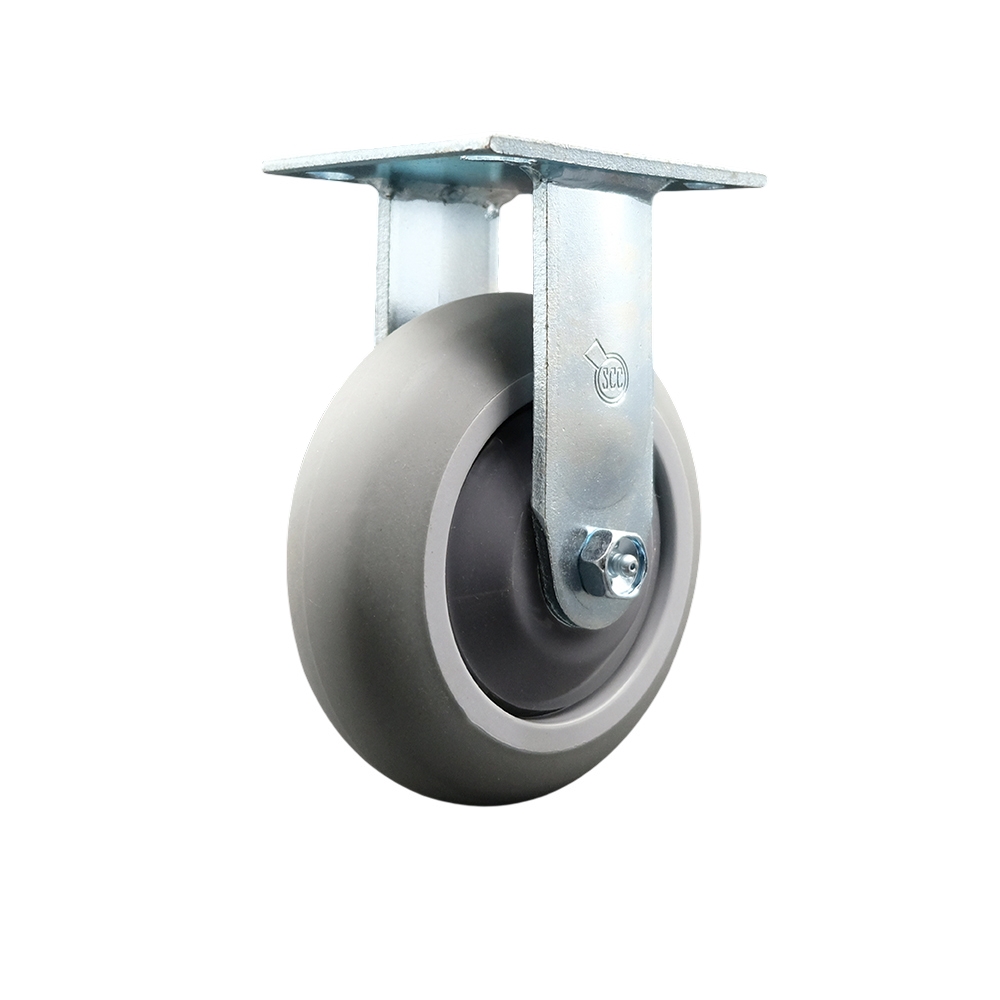

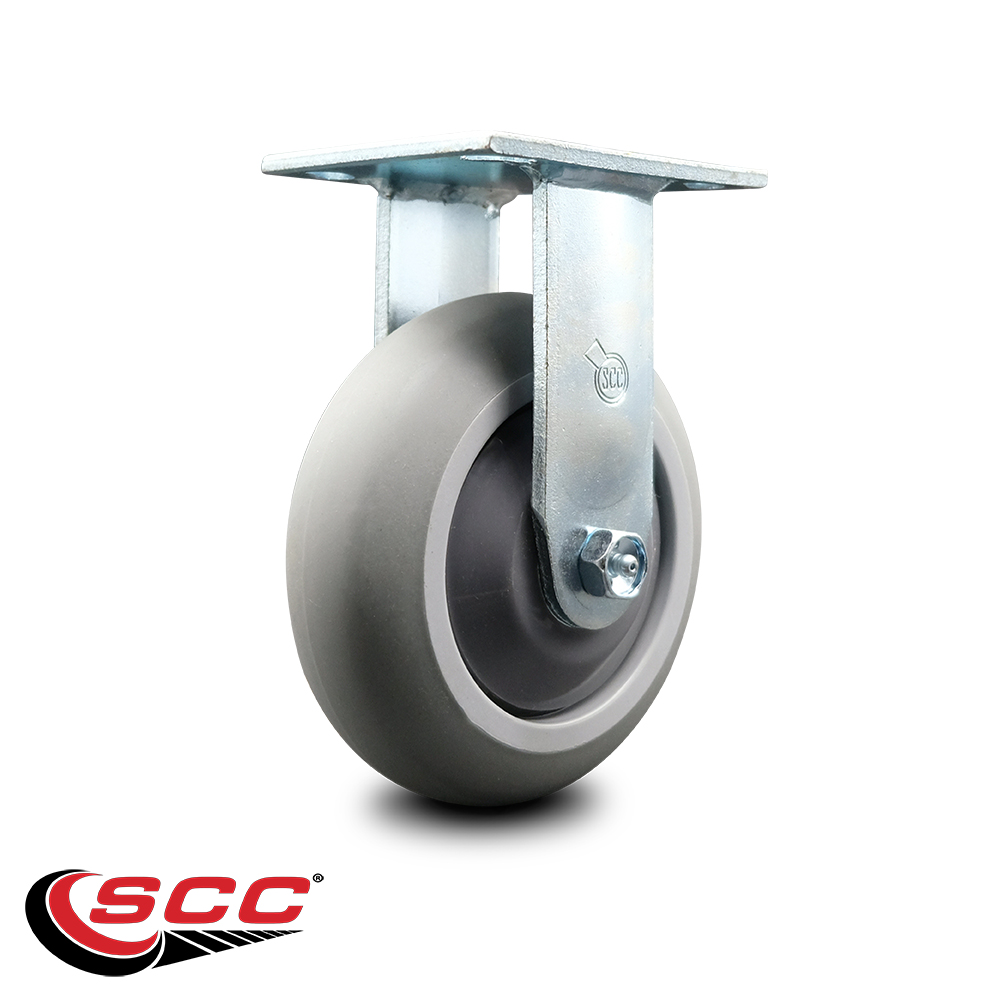

Chemtainer CSJ6RRRR Replacement Rigid Caster – 6 Inch Gray Thermoplastic Rubber Donut Tread Wheel with Plastic Thread Guards – 500 lbs. Capacity Per Caster - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #30

SKU

CHE-SCC-30R620-TPRRD-TGP

Condition

new

Quantity

1

UPC

734005059731

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

6 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Pattern

2-5/8" x 3-5/8" to 3" x 3"

Bolt Size

3/8" (hardware not included)

Capacity

500

Color

Rigid - No Brake - Donut Tread - 1 PC

Durometer

75A

Heat Capacity

-20 degrees F to 180 degrees F

Item Weight Unit of Measure

pounds

Load Height

7-1/2"

Lower Temperature

-20

Lower Temperature UofM

F

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

7-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Size

6" Wheel

Top Plate Size

4" x 4-1/2"

Tread Width

2

Tread Width UofM

inches

Type

Rigid caster

Wheel Bearing

Roller Bearing

Wheel Diameter

6

Wheel Diameter UofM

inches

Wheel Material

Thermoplastic Rubber Tread on Polyolefin Core

Wheel Size

6" x 2"

Wheel Type

Thermoplastic Rubber Donut Tread

Description

High quality replacement rigid caster for a Chemtainer CSJ6RRRR. Listing is for one (1) Service Caster Series #30 rigid caster and a 6 inch diameter by 2 inch wide thermoplastic rubber donut tread wheel with plastic thread guards. Supports 500 pounds (lbs.) per caster. When searching for a reliable and durable solution to your Lavex Lodging Housekeeping Cart needs, consider Service Caster’s Series 30 top plate thermoplastic rubber donut tread on polyolefin core casters. The rounded face "donut" style soft tread is made of thermoplastic rubber that is non-marking, non-marring and provides easier mobility over standard flat tread wheels, resulting in a long lasting, high capacity wheel capable of easy rolling under heavy loads. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, but are commonly used on Lavex Lodging Housekeeping Carts. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Mounting Height: 7-1/2" • Floor Safe Wheels - Non-marking & Non-marring • Weight Capacity: 500 lbs. • Overall Top Plate Dimensions: 4" x 4-1/2"; Mounting Hole Dimensions: 2-5/8" x 3-5/8" to 3" x 3"
