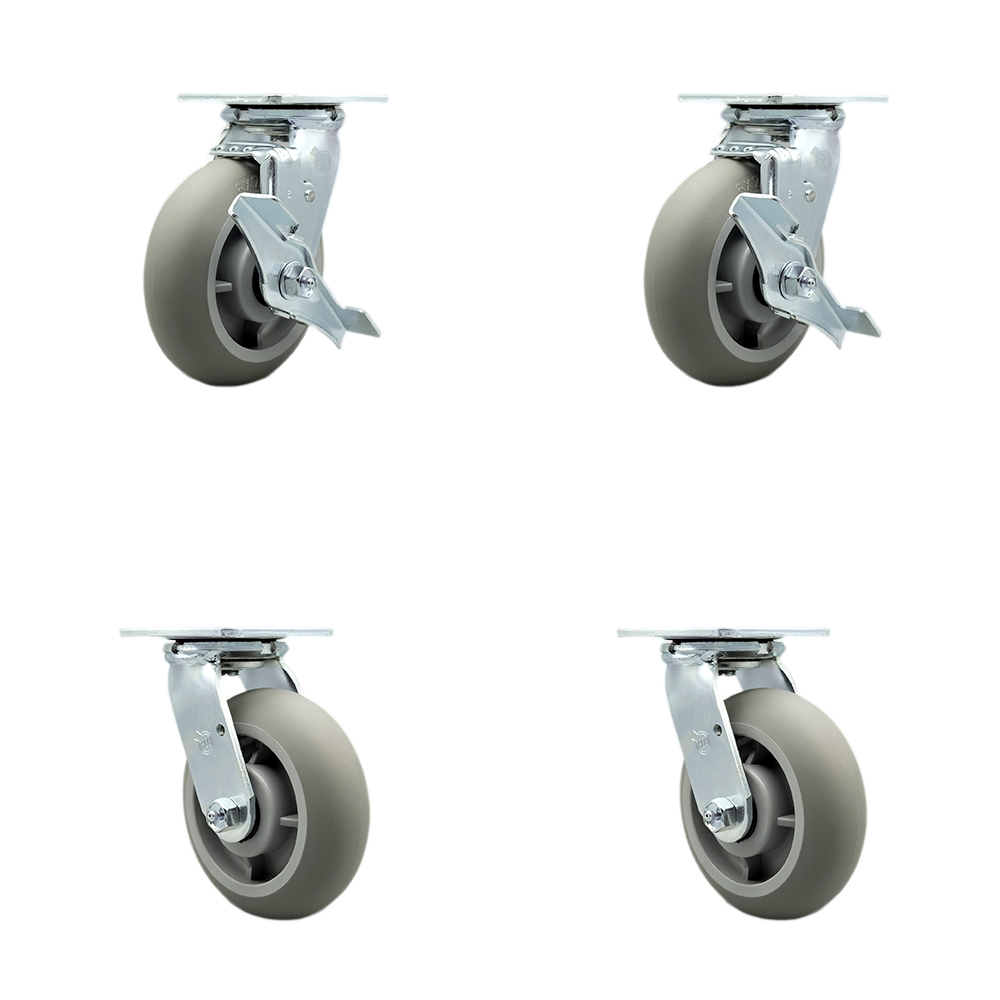

Cambro Meal Delivery Cart Caster Set - Replacement - Includes 2 Swivel with Bolt-On Swivel Locks and Wheel Brakes and 2 Swivel with Bolt-On Swivel Locks - Set of 4 - Service Caster

Details

Manufacturer

Service Caster

Model

Series #30

SKU

CAM-SCC-SS30S620-TPRRD-TLB-BSL-2-BSL-2

Condition

new

Quantity

4

UPC

734005058970

Harmonized code

8302.20.0018

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

23.7 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Pattern

2-5/8" x 3-5/8" to 3" x 3"

Bolt Size

3/8" (hardware not included)

Capacity

500

Color

4 Swivel w/2 Brakes & 4 Swivel Locks

Durometer

75A

Feature

4 casters with bolt on swivel locks & 2 casters with top lock brakes

Heat Capacity

-20 degrees F to 180 degrees F

Item Weight Unit of Measure

pounds

Load Height

7-1/2"

Locking Type

4 Bolt on Swivel Locks & 2 Top Lock Brakes

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Thermoplastic Rubber

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

7-1/2"

Mounting Type

Top Plate

Plating/Coating

Polished Stainless Steel

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

6" Gray Wheel

Stain Resistant

Yes

Top Plate Size

4" x 4-1/2"

Tread Width

2

Tread Width UofM

inches

Type

(2) Swivel caster w/top lock brake & bolt on swivel lock & (2) swivel casters w/bolt on swivel locks

Wheel Bearing

Roller Bearing

Wheel Diameter

6

Wheel Diameter UofM

inches

Wheel Material

Thermoplastic Rubber Tread on Polyolefin Core

Wheel Size

6" x 2"

Wheel Type

Thermoplastic Rubber on Polyolefin Core

Description

High quality replacement casters for a Cambro MDC1418S20, MDC1520S20, MDC1520S10, MDC1520S10HD, MDC1418T30, and MDC1520T30 meal delivery carts. Listing is for a set of four (4) Service Caster Series #30 stainless steel casters, two (2) swivel casters with side lock brakes & bolt on swivel locks and two (2) swivel casters with a bolt on swivel locks, with 6" diameter by 2" wide thermoplastic rubber donut tread on polyolefin core wheels capable of supporting a total weight of 2,000 lbs. (500 lbs./caster). When searching for a reliable and durable solution to your Cambro Meal Delivery Cart needs, consider Service Caster’s Series 30 top plate thermoplastic rubber donut tread on polyolefin core casters. The rounded face "donut" style soft tread is made of thermoplastic rubber that is non-marking, non-marring and provides easier mobility over standard flat tread wheels, resulting in a long lasting, high capacity wheel capable of easy rolling under heavy loads. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, but are commonly used on Cambro Meal Delivery Carts. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Fits Cambro Meal Delivery Carts • Floor Safe Wheels - Non-marking & Non-marring • Weight Capacity: 2,000 lbs. • Overall Top Plate Dimensions: 4" x 4-1/2"; Mounting Hole Dimensions: 2-5/8" x 3-5/8" to 3" x 3"
