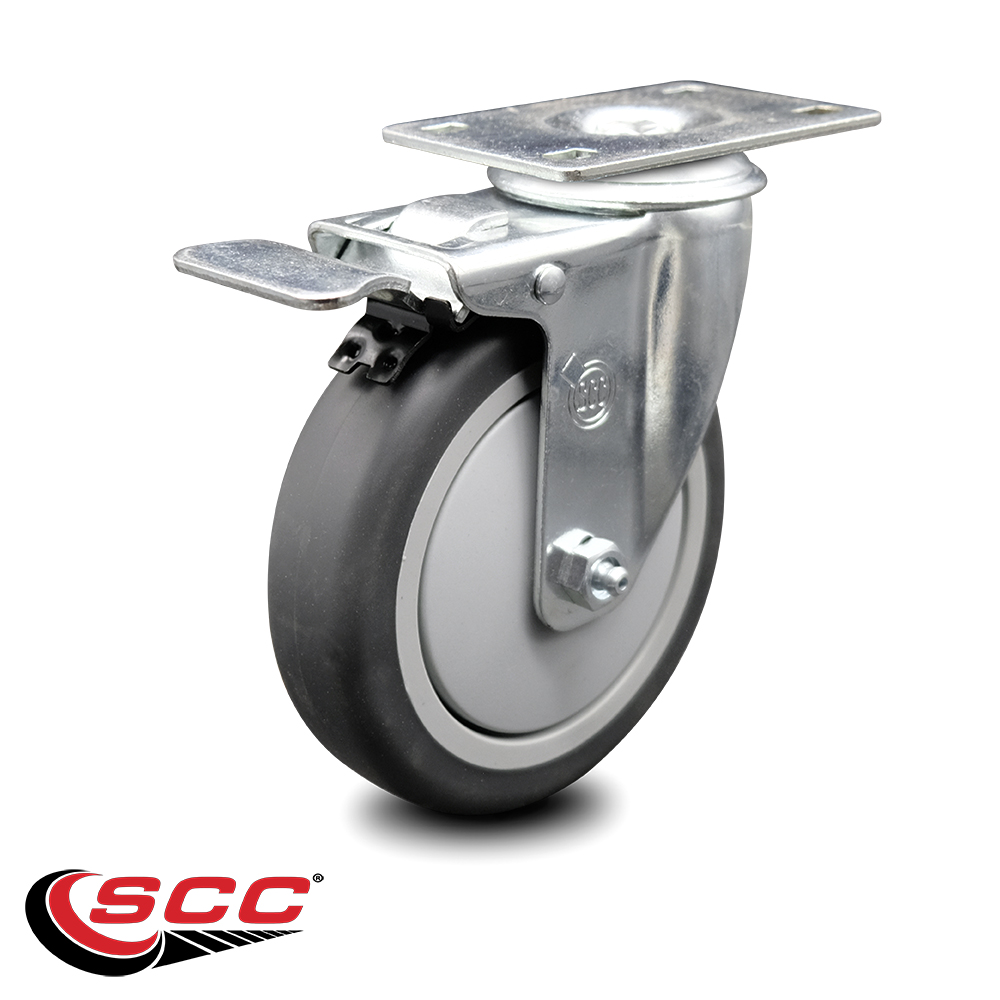

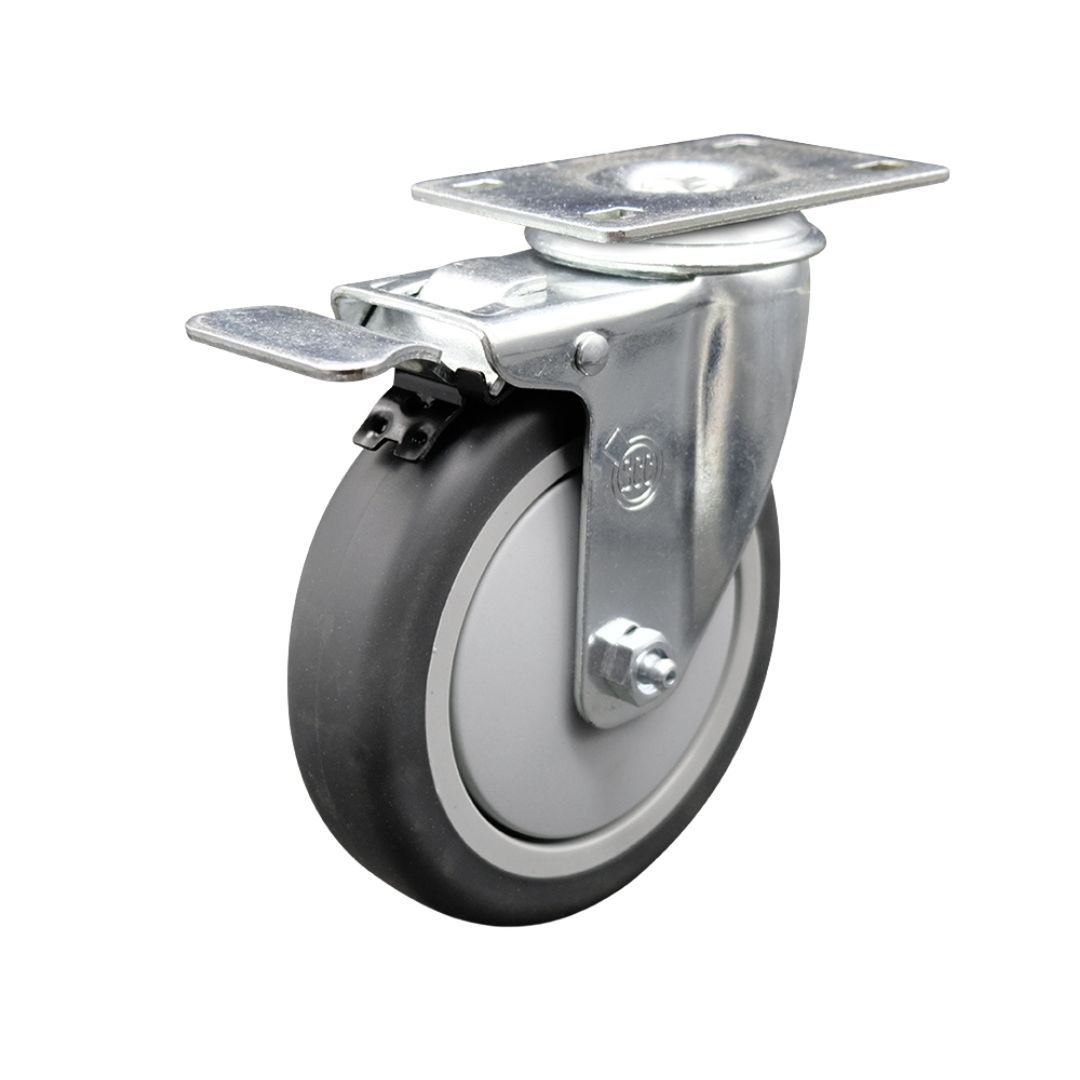

Cambro Dish Caddies Replacement Caster - 5 Inch Swivel Caster with Total Lock Brake - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

CAM-SCC-TTL20S514-TPRB

Condition

new

Quantity

1

UPC

734005058055

Harmonized code

8302.20.0000

Dimensions (L x W x H)

5 x 5 x 5 in

Shipping weight

2.15 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Pattern

1-3/4" x 2-7/8" to 3"

Bolt Size

5/16" (hardware not included)

Capacity

300

Color

Swivel - Total Lock Brake - Gray

Durometer

75A

Feature

Total lock brake

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

6-1/8"

Locking Type

Total lock brake

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Thermoplastic Rubber

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

6-1/8"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

5" Wheel

Top Plate Size

2-1/2" x 3-5/8"

Tread Width

1.25

Tread Width UofM

inches

Type

swivel caster w/ total lock brake

Wheel Bearing

Precision Ball Bearing

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Thermoplastic Rubber Tread on Polyolefin Core

Wheel Size

5" x 1-1/4"

Wheel Type

Thermoplastic Rubber on Polyolefin Core

Description

High quality replacement swivel caster with total lock brakes for Cambro Dish Caddies. Listing is for one (1) Service Caster Series #20 swivel caster with a 5" diameter by 1-1/4" wide thermoplastic rubber wheel and a total lock brake capable of supporting 300lbs./caster. When searching for a reliable and durable solution to your Cambro equipment replacement caster needs, consider Service Caster Series 20 top plate thermoplastic rubber tread on polyolefin core wheel casters. The Service Caster Series #20 features thermoplastic rubber tread on polyolefin core wheels that offer a softer tread for smoother travel while also resisting damage from debris. Finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway, these Service Caster high performance Cambro equipment replacement casters balance high pay loads with smooth and quiet operation. These versatile casters are ideal for a wide range of applications, but are commonly used on Cambro equipment. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Fits Cambro Dish Caddies • Floor Safe Wheels - Non-marking & Non-marring • Weight Capacity: 300 lbs. • Overall Top Plate Dimensions: 2-3/8" x 3-5/8"; Mounting Hole Dimensions: 1-3/4" x 2-7/8" to 3"
