Browse / Parts & Components / Cambro Dish Caddies and Utility Truck Replacement Caster Set – Includes 4 Swivel Casters with Total Lock Brakes – Set of 4 - Service Caster Brand

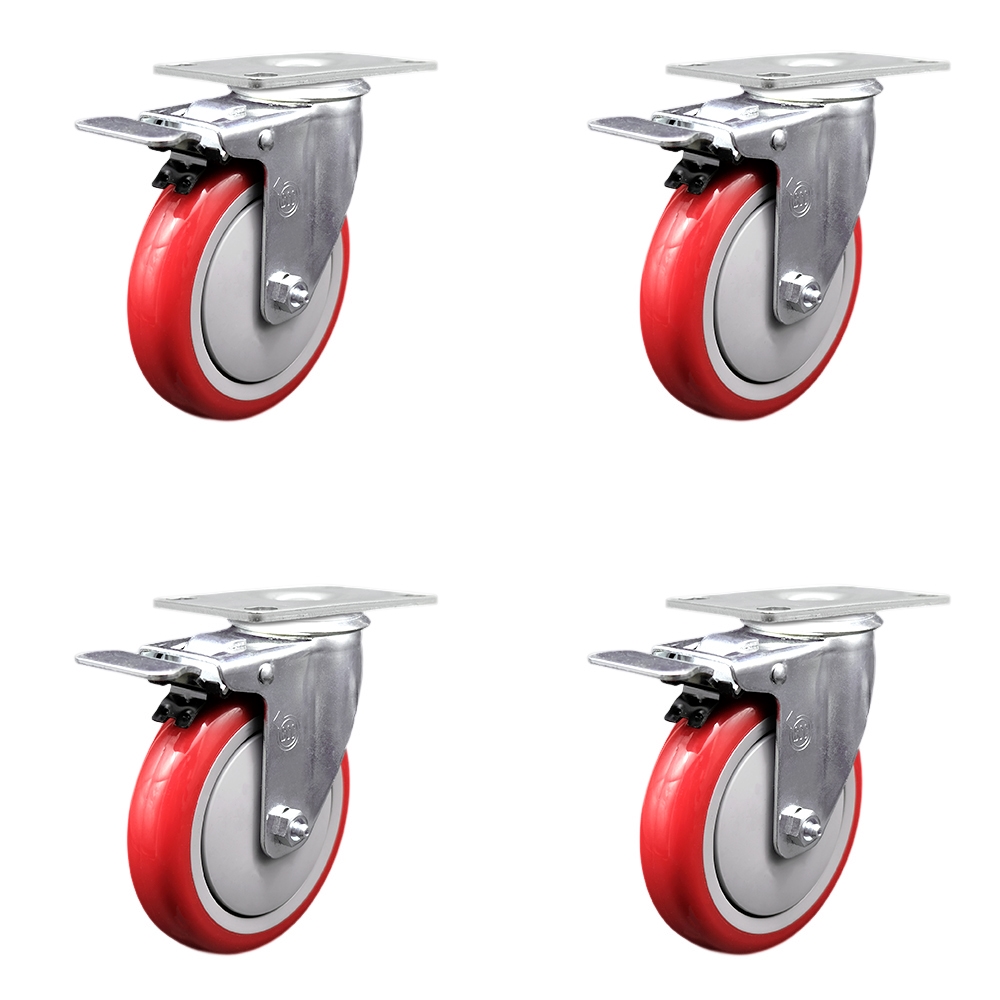

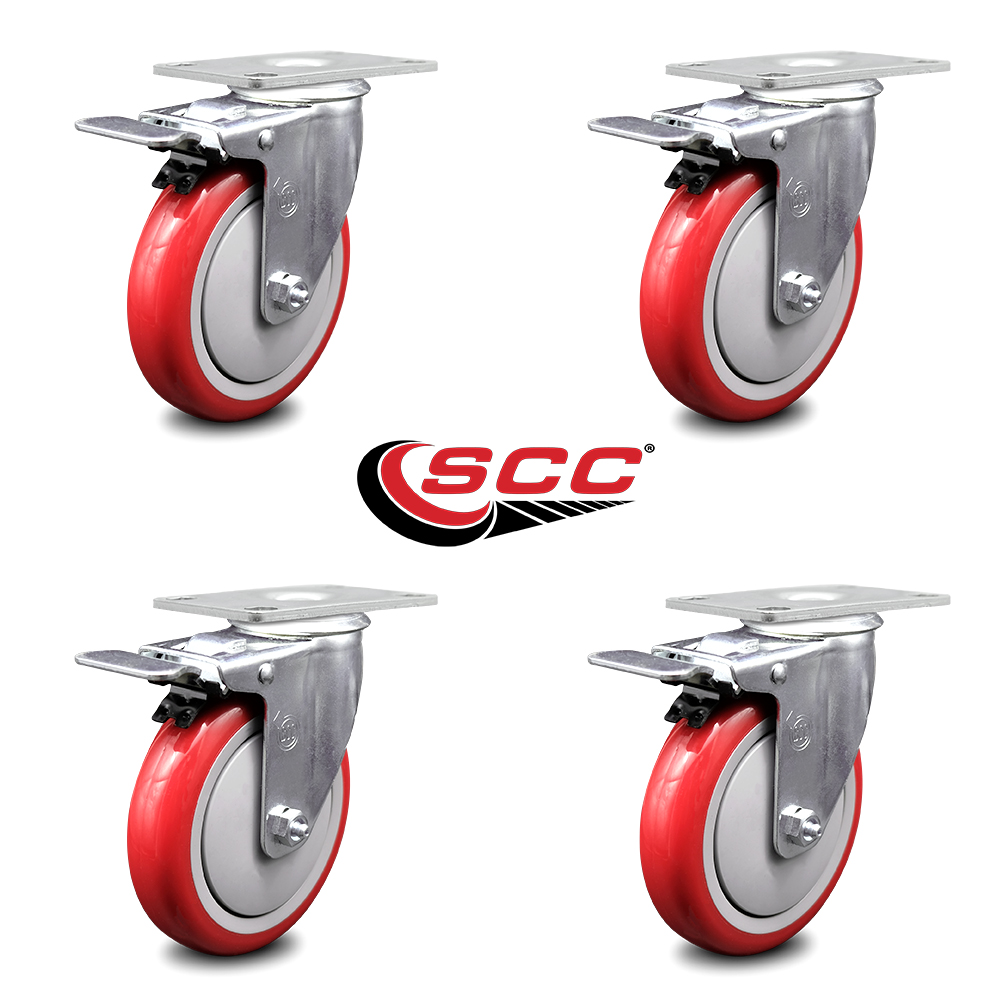

Cambro Dish Caddies and Utility Truck Replacement Caster Set – Includes 4 Swivel Casters with Total Lock Brakes – Set of 4 - Service Caster Brand
Seller
Sign in to see direct contact details and connect off-platform, or message through CynchUp.
View seller's listingsDetails
- Manufacturer
- Service Caster
- Model
- Series #20
- SKU
- CAM-SCC-TTL20S514-PPUB-RED-4
- Condition
- new
- Quantity
- 4
- UPC
- 734005058765
- Harmonized code
- 8302.20.0000
- Dimensions (L x W x H)
- 8 x 8 x 8 in
- Shipping weight
- 11 lb
- Posted
- Sep 17, 2026, 7:00 PM CDT
Specifications
- Bolt Pattern
- 1-3/4" x 2-7/8" to 3"
- Bolt Size
- 5/16" (hardware not included)
- Capacity
- 350
- Color
- 4 Swivel - Total Lock Brakes - Red
- Durometer
- 60D
- Feature
- Total lock brake
- Heat Capacity
- -20 degrees F to 180 degrees F
- Item Dimension Unit of Measure
- inches
- Item Weight Unit of Measure
- pounds
- Load Height
- 6-1/8"
- Locking Type
- Total lock brake
- Lower Temperature
- -20
- Lower Temperature UofM
- F
- Material Type
- Polyurethane Tread on Polyolefin Core
- Maximum Temperature
- 180
- Maximum Temperature UofM
- F
- Mounting Height
- 6-1/8"
- Mounting Type
- Top Plate
- Plating/Coating
- Bright Zinc Plated Finish
- Casters Mounting Method
- Plate
- Locking Castersor Wheels
- Yes
- Swivels
- Yes
- Size
- 5" Red Wheel
- Top Plate Size
- 2-1/2" x 3-5/8"
- Tread Width
- 1.25
- Tread Width UofM
- inches
- Type
- (4) swivel casters w/ total lock brakes
- Wheel Bearing
- Precision Ball Bearing
- Wheel Diameter
- 5
- Wheel Diameter UofM
- inches
- Wheel Material
- Polyurethane Tread on Polyolefin Core
- Wheel Size
- 5" x 1-1/4"
- Wheel Type
- Polyurethane Tread on Polyolefin Core
Description

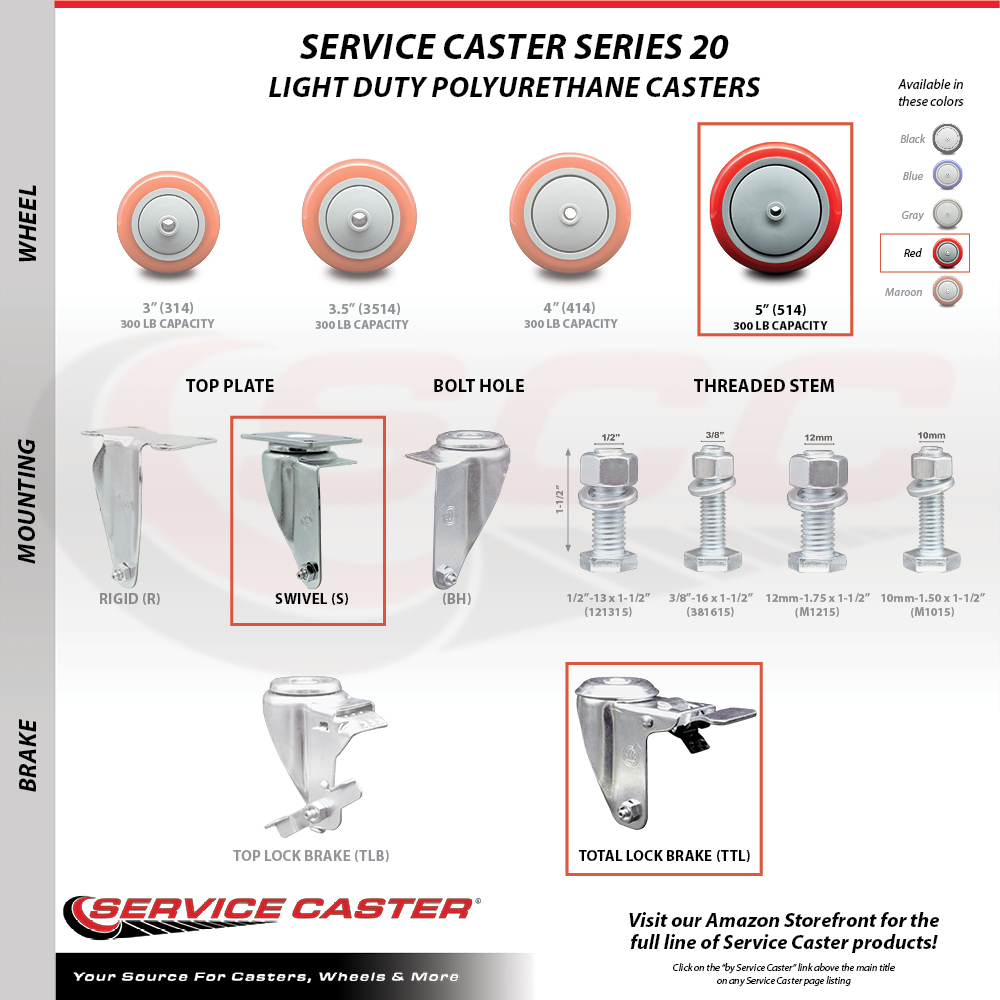

High quality replacement casters for a variety of Cambro equipment from Dish Caddies to Utility Trucks. Listing is for a set of four (4) Service Caster Series #20 swivel casters, four (4) swivel casters with total lock brakes, 5” diameter by 1-1/4” wide red polyurethane wheels. Supports a total weight of 1,400lbs (350lbs/per caster). When searching for a reliable and durable solution to your Cambro equipment replacement caster needs, consider Service Caster Series 20 top plate polyurethane tread on polyolefin core wheel casters. The Service Caster Series #20 features polyurethane tread on polyolefin core wheels that offer a softer tread for smoother travel while also resisting damage from debris. Finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway, these Service Caster high performance Cambro equipment replacement casters balance high pay loads with smooth and quiet operation. These versatile casters are ideal for a wide range of applications, but are commonly used on Cambro equipment. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Fits Cambro Dish Dollies/Caddies • Floor Safe Wheels - Non-marking & Non-marring • Weight Capacity: 1,400 lbs. • Overall Top Plate Dimensions: 2-3/8" x 3-5/8"; Mounting Hole Dimensions: 1-3/4" x 2-7/8" to 3"
