Bil-Jax 0026-762 Scaffold Swivel Caster Replacement – 8 Inch Black Rubber on Cast Iron Wheel - 600 lbs. Capacity Per Caster - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #30

SKU

BIL-SCC-SF30S820-RSR-138

Condition

new

Quantity

1

UPC

734005059946

Harmonized code

8302.20.0000

Dimensions (L x W x H)

12 x 12 x 12 in

Shipping weight

14 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Capacity

600

Color

Swivel - Total Lock Brake - Black - 1 PC

Durometer

80A

Feature

1 caster with total lock brake

Heat Capacity

-40 degrees F to 180 degrees F

Item Weight Unit of Measure

pounds

Load Height

9-1/2"

Locking Type

(1) Total lock brake

Lower Temperature

-40

Lower Temperature UofM

F

Maximum Temperature

160

Maximum Temperature UofM

F

Mounting Height

9-1/2"

Mounting Type

Round Stem

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Stem

Locking Castersor Wheels

Yes

Swivels

Yes

Size

8" Wheel

Stem

1-3/8" diameter x 4" length round stem

Stem Diameter

1-3/8"

Stem Length

4"

Stem Length UofM

inches

Stem Type

Round Stem

Tread Width

2

Tread Width UofM

inches

Type

Swivel caster w/total lock brake

Wheel Bearing

Roller Bearing

Wheel Diameter

8

Wheel Diameter UofM

inches

Wheel Material

Rubber on Cast Iron

Wheel Size

8" x 2"

Wheel Type

Rubber on Cast Iron

Description

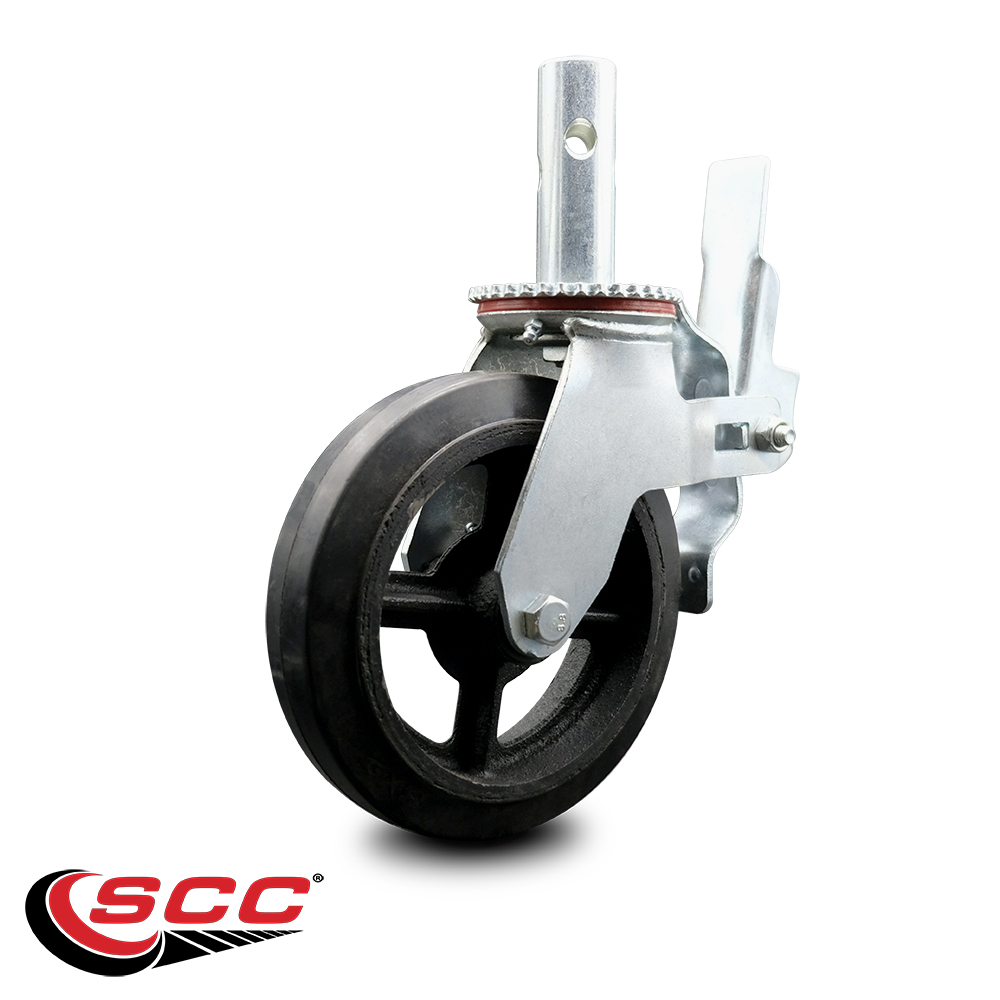

High quality replacement swivel caster for a Bil-Jax 0026-762. Listing is for one (1) Service Caster Series #30 swivel caster with a 8 inch diameter by 2 inch wide hard rubber wheel with 1-3/8” stem. Supports 600 pounds (lbs.) per caster. When searching for a reliable and durable solution for medium and heavy duty projects, consider Service Caster’s Series 30 top plate rubber on metal casters. The Service Caster Series #30 is ideal for material handling, carts, equipment, and shop projects. The rubber tread performs especially well on hard surfaces such as concrete, tile, and wood, while the metal core wheel stands up to heavier loads with a stable and secure roll. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Heavy Duty Scaffold Caster with Double Total Locking Brake Mechanism • Our Rubber tread on semi-steel cast iron core wheels have high shock absorption and a cushion rubber tread featuring a quiet, easy rolling operation. In addition, the wheels feature a rubber tread that is permanently interlocked by mechanical bonding. Service Caster’s Rubber tread on cast iron core wheels will keep Moving You Forward. • Weight Capacity: 600 lbs. • Overall Round Stem Dimensions: 1-3/8" diameter x 4" length
