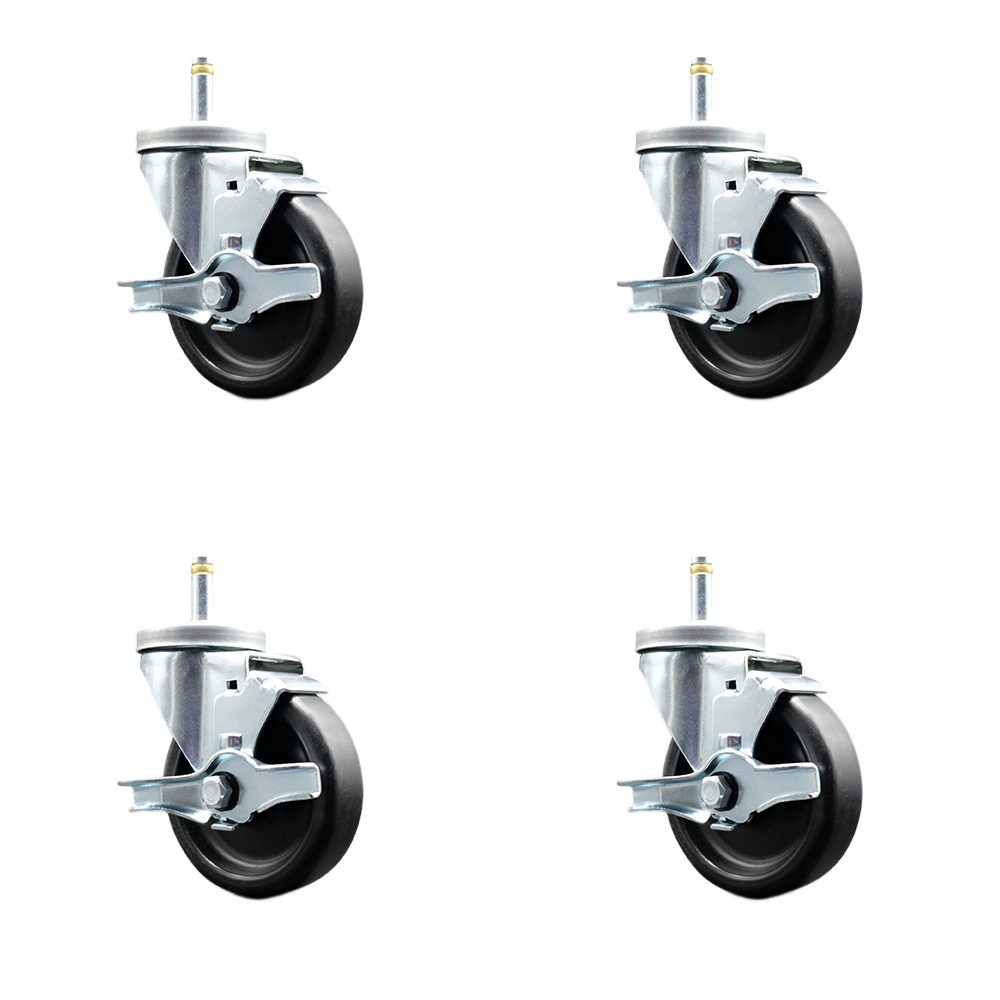

Belshaw HG18-0031B-4 - HG18EZ and HG18C Donut Glazers - Replacement Caster Set - Includes 4 Swivel Casters with Brakes - Set of 4 - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

BEL-SCC-DCGR20S414-POS-TLB-716138-4

Condition

new

Quantity

4

UPC

734005056129

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

8 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bore Diameter UofM

inches

Capacity

1200

Color

4 Swivel - Brakes - 4 PCS

Feature

4 casters with top lock brakes

Heat Capacity

-20 degrees F to 180 degrees F

Item Weight Unit of Measure

pounds

Load Height

5-1/8"

Locking Type

(4) Top lock brakes

Lower Temperature

-20

Lower Temperature UofM

F

Maximum Temperature

250

Maximum Temperature UofM

F

Mounting Height

5-1/8"

Mounting Type

Grip Ring Stem

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Stem

Locking Castersor Wheels

Yes

Swivels

Yes

Size

4" Wheel

Stem

7/16" diameter x 1-3/8" length grip ring stem

Stem Diameter

7/16"

Stem Length

1.38

Stem Length UofM

inches

Stem Type

Grip Ring Stem

Tread Width

1.25

Tread Width UofM

inches

Type

(4) swivel casters w/top lock brakes

Wheel Bearing

Plain Bore

Wheel Diameter

4

Wheel Diameter UofM

inches

Wheel Material

Polyolefin

Wheel Size

4" x 1.25"

Wheel Type

Polyolefin

Description

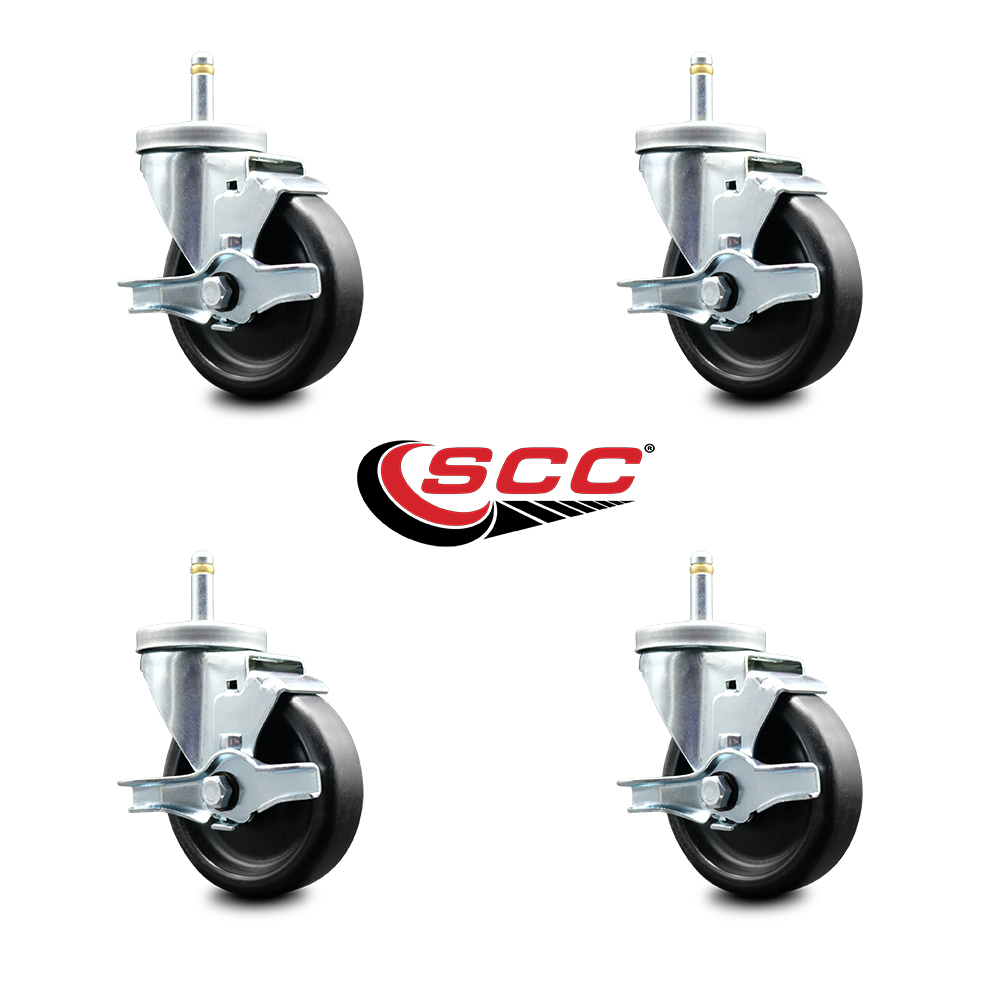

High quality casters for Belshaw HG18EZ and HG18C Donut Glazers. Listing is for a set of four (4) Service Caster Series #20 casters with 4 inch diameter by 1-1/4 inch wide polyolefin wheels. Set includes four (4) swivel casters with brakes. These Belshaw replacement casters have 7/16 inch by 1-3/8 inch grip ring stems and feature dust caps. Supports 1,200 total pounds (lbs.) at 300 pounds (lbs.) per caster. When searching for a reliable and durable solution to your Belshaw HG18EZ and HG18C Donut Glazers replacement caster needs, consider Service Caster Series 20 grip ring stem polyolefin wheel casters. The Service Caster Series #20 features polyolefin wheels that have a high resistance to shock and impact damage while also being non-marking protecting floors. Finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway, these Service Caster high performance Belshaw replacement casters offer polyolefin wheels that are best used on smooth, flat, and clear industrial or commercial settings where materials may be stationary for long periods. These versatile casters are ideal for a wide range of applications, but are commonly used on Belshaw HG18EZ and HG18C Donut Glazers. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Fits Belshaw HG18EZ and HG18C Donut Glazers • High resistance to shock and impact damage • Weight Capacity: 1200 • Grip Ring Stem Dimensions: 7/16" x 1-3/8"
