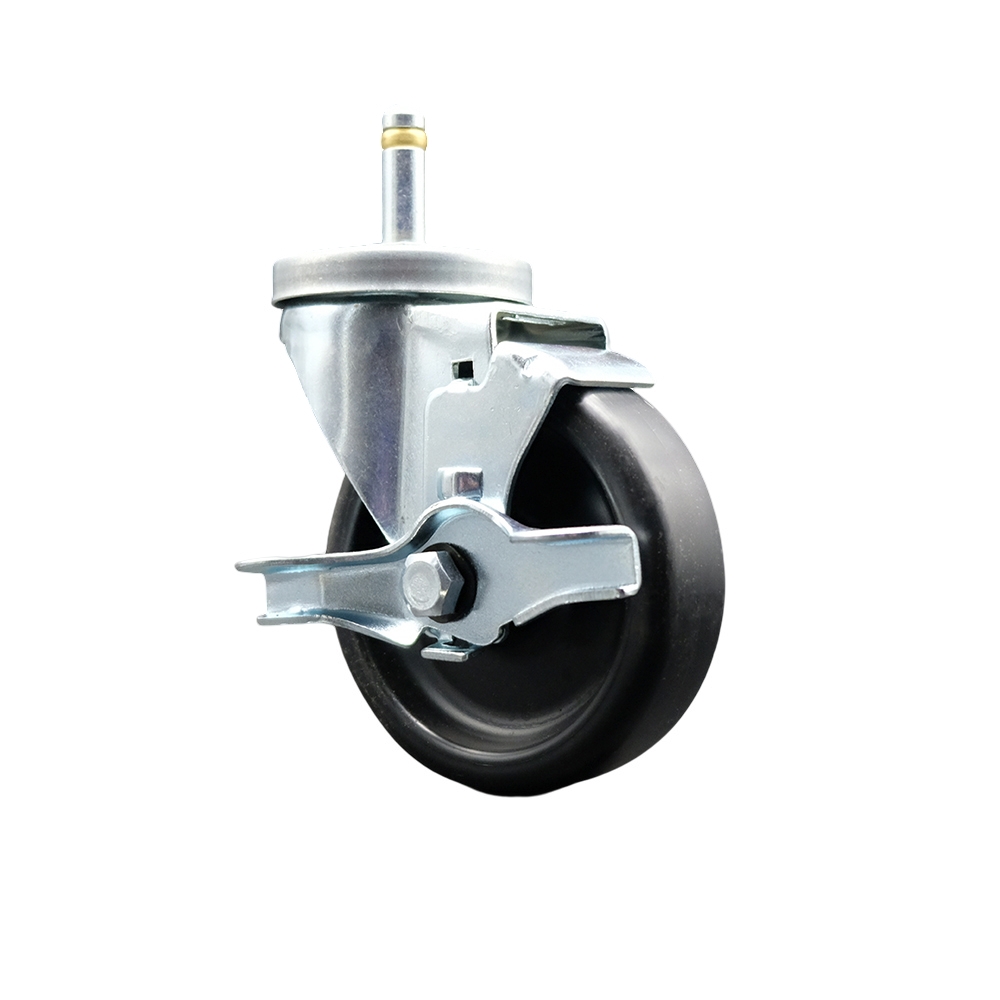

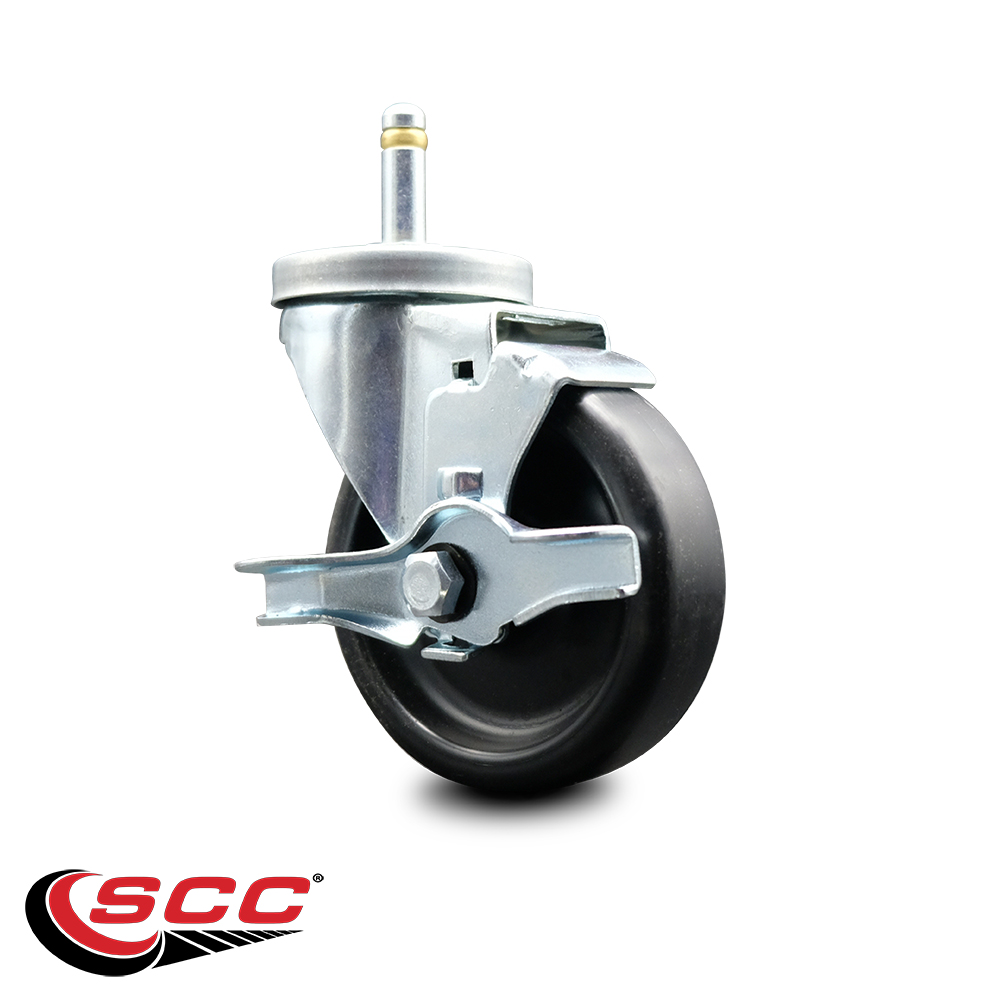

Belshaw HG18-0031B-4 - 4 Inch Swivel Caster with Top Lock Brake - HG18EZ and HG18C Donut Glazers - Replacement Caster - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

BEL-SCC-DCGR20S414-POS-TLB-716138

Condition

new

Quantity

1

UPC

734005056099

Harmonized code

8302.20.0000

Dimensions (L x W x H)

5 x 5 x 5 in

Shipping weight

4 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bore Diameter UofM

inches

Capacity

300

Color

Swivel - Brake - 1 PC

Feature

Top lock brake

Heat Capacity

-20 degrees F to 180 degrees F

Item Weight Unit of Measure

pounds

Load Height

5-1/8"

Locking Type

Top lock brake

Lower Temperature

-20

Lower Temperature UofM

F

Maximum Temperature

250

Maximum Temperature UofM

F

Mounting Height

5-1/8"

Mounting Type

Grip Ring Stem

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Stem

Locking Castersor Wheels

Yes

Swivels

Yes

Size

4" Wheel

Stem

7/16" diameter x 1-3/8" length grip ring stem

Stem Diameter

7/16"

Stem Length

1.38

Stem Length UofM

inches

Stem Type

Grip Ring Stem

Tread Width

1.25

Tread Width UofM

inches

Type

Swivel caster w/top lock brake

Wheel Bearing

Plain Bore

Wheel Diameter

4

Wheel Diameter UofM

inches

Wheel Material

Polyolefin

Wheel Size

4" x 1.25"

Wheel Type

Polyolefin

Description

High quality swivel caster with brake for Belshaw HG18EZ and HG18C Donut Glazers. Listing is for one (1) Service Caster Series #20 swivel caster with brake and a 4 inch diameter by 1-1/4 inch wide polyolefin wheel. This Belshaw replacement caster has a 7/16 inch by 1-3/8 inch grip ring stem and features a dust cap. Supports 300 pounds (lbs.) per caster. When searching for a reliable and durable solution to your Belshaw HG18EZ and HG18C Donut Glazers replacement caster needs, consider Service Caster Series 20 grip ring stem polyolefin wheel casters. The Service Caster Series #20 features polyolefin wheels that have a high resistance to shock and impact damage while also being non-marking protecting floors. Finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway, these Service Caster high performance Belshaw replacement casters offer polyolefin wheels that are best used on smooth, flat, and clear industrial or commercial settings where materials may be stationary for long periods. These versatile casters are ideal for a wide range of applications, but are commonly used on Belshaw HG18EZ and HG18C Donut Glazers. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Fits Belshaw HG18EZ and HG18C Donut Glazers • High resistance to shock and impact damage • Weight Capacity: 300 • Grip Ring Stem Dimensions: 7/16" x 1-3/8"
