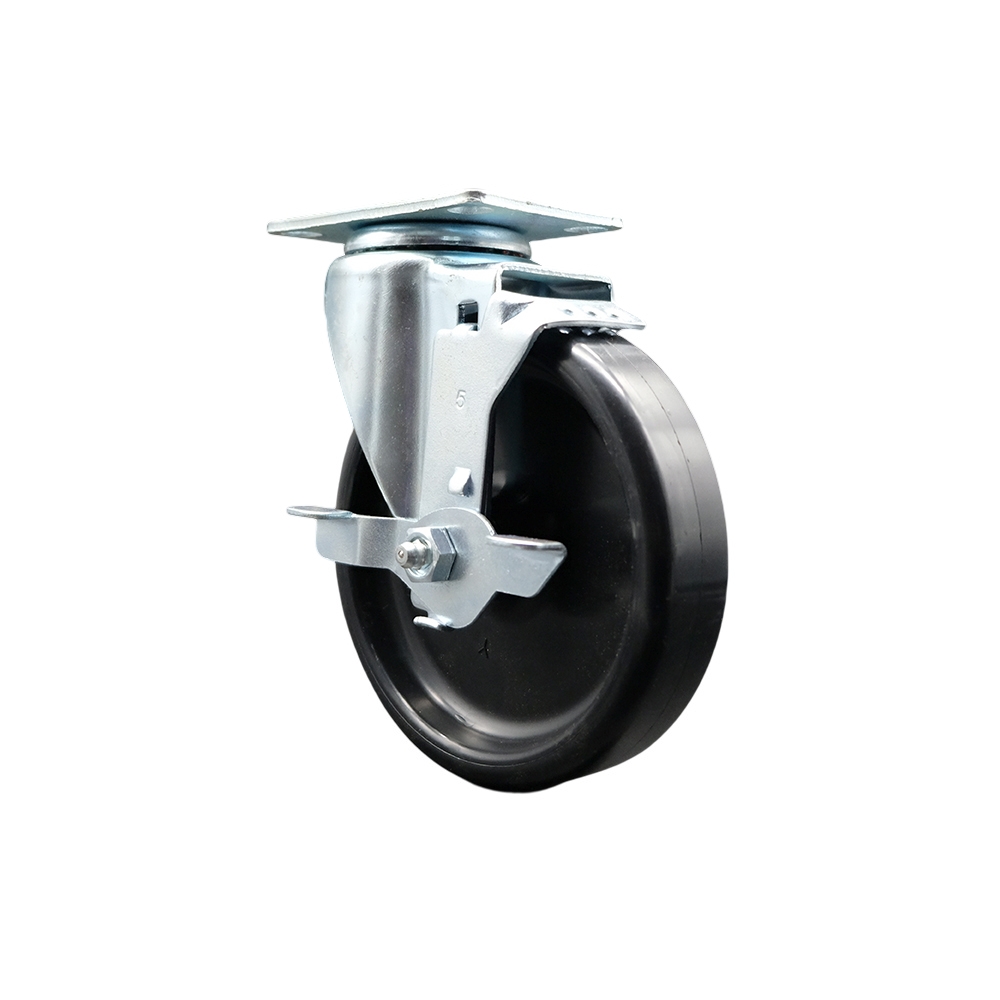

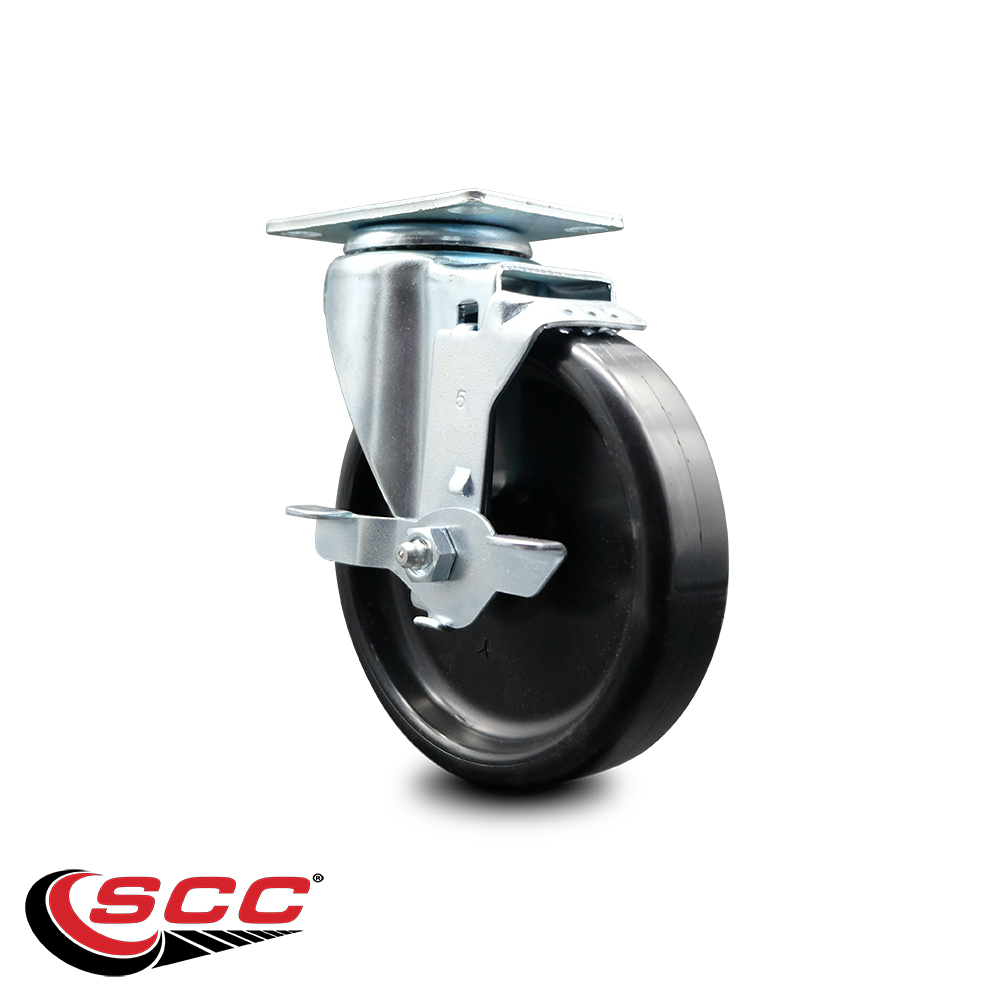

Avantco FF300 FF400 FF500 FF518 Frymaster Dean Floor Fryer Replacement Locking Caster – 5 Inch Swivel Caster with Brake - Replacement Caster - Service Caster Brand
Seller
Sign in to see direct contact details and connect off-platform, or message through CynchUp.
View seller's listingsDetails
- Manufacturer
- Service Caster
- Model
- Series #20
- SKU
- AVA-SCC-20S514-POS-TLB
- Condition
- new
- Quantity
- 1
- UPC
- 734005056600
- Harmonized code
- 8302.20.0000
- Dimensions (L x W x H)
- 5 x 5 x 5 in
- Shipping weight
- 4 lb
- Posted
- Sep 17, 2026, 7:00 PM CDT
Specifications
- Bolt Size
- 5/16" (hardware not included)
- Bore Diameter UofM
- inches
- Capacity
- 300
- Color
- Swivel - Brake - 1 PC
- Feature
- Top lock brake
- Heat Capacity
- -20 degrees F to 180 degrees F
- Item Weight Unit of Measure
- pounds
- Load Height
- 6-1/8"
- Locking Type
- Top lock brake
- Lower Temperature
- -20
- Lower Temperature UofM
- F
- Maximum Temperature
- 250
- Maximum Temperature UofM
- F
- Mounting Height
- 6-1/8"
- Mounting Type
- Top Plate
- Plating/Coating
- Bright Zinc Plated Finish
- Casters Mounting Method
- Plate
- Locking Castersor Wheels
- Yes
- Swivels
- Yes
- Size
- 5" Wheel
- Top Plate Size
- 2-1/2" x 3-5/8"
- Tread Width
- 1.25
- Tread Width UofM
- inches
- Type
- Swivel caster w/top lock brake
- Wheel Bearing
- Plain Bore
- Wheel Diameter
- 5
- Wheel Diameter UofM
- inches
- Wheel Material
- Polyolefin
- Wheel Size
- 5" x 1.25"
- Wheel Type
- Polyolefin
Description
High quality swivel caster with brake for Avantco FF300, FF400, FF500, FF518, and Frymaster / Dean Floor Fryers. Listing is for one (1) Service Caster Series #20 swivel caster with a brake and a 5 inch diameter by 1-1/4 inch wide polyolefin wheel. This Avantco replacement caster allows one to move their equipment for thorough cleaning and sanitizing. Supports 300 pounds (lbs.) per caster. When searching for a reliable and durable solution to your Avantco FF300, FF400, FF500, FF518, and Frymaster / Dean Floor Fryers replacement caster needs, consider Service Caster Series 20 top plate polyolefin wheel casters. The Service Caster Series #20 features polyolefin wheels that have a high resistance to shock and impact damage while also being non-marking protecting floors. Finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway, these Service Caster high performance Avantco replacement casters offer polyolefin wheels that are best used on smooth, flat, and clear industrial or commercial settings where materials may be stationary for long periods. These versatile casters are ideal for a wide range of applications, but are commonly used on Avantco FF300, FF400, FF500, FF518, and Frymaster / Dean Floor Fryers. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Fits Avantco FF300, FF400, FF500, FF518, and Frymaster / Dean Floor Flyers • High resistance to shock and impact damage • Weight Capacity: 300 • Overall Top Plate Dimensions: 2-3/8" x 3-5/8"; Mounting Hole Dimensions: 1-3/4" x 2-3/4" to 3"
