Avantco 17816412 - Fits Select Avantco Refrigeration Equipment - Replacement Caster Set - Includes 4 Swivel Casters with Brakes - Set of 4 - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

AVA-SCC-20S414-HRS-TLB-TP2-4

Condition

new

Quantity

4

UPC

734005056679

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

12 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

5/16" (hardware not included)

Bore Diameter UofM

inches

Capacity

1200

Color

4 Swivel - Brakes - 4 PCS

Durometer

55D

Feature

4 casters with top lock brakes

Heat Capacity

-40 degress F to 160 degrees F

Item Weight Unit of Measure

pounds

Load Height

5-1/8"

Locking Type

(4) Top lock brakes

Lower Temperature

-40

Lower Temperature UofM

F

Maximum Temperature

250

Maximum Temperature UofM

F

Mounting Height

5-1/8"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

4" Wheel

Top Plate Size

3-1/8" x 4-1/8"

Tread Width

1.25

Tread Width UofM

inches

Type

(4) swivel casters w/top lock brakes

Wheel Bearing

Plain Bore

Wheel Diameter

4

Wheel Diameter UofM

inches

Wheel Material

Hard Rubber

Wheel Size

4" x 1.25"

Wheel Type

Hard Rubber

Description

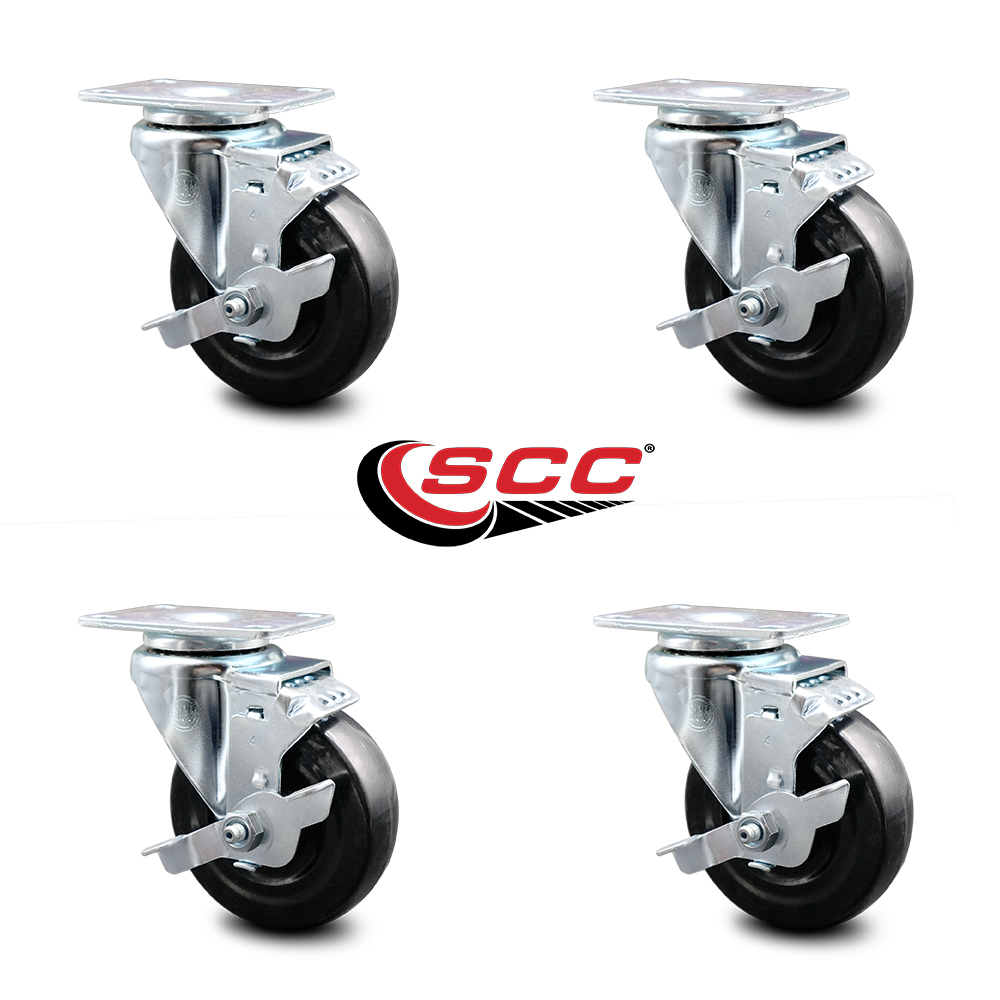

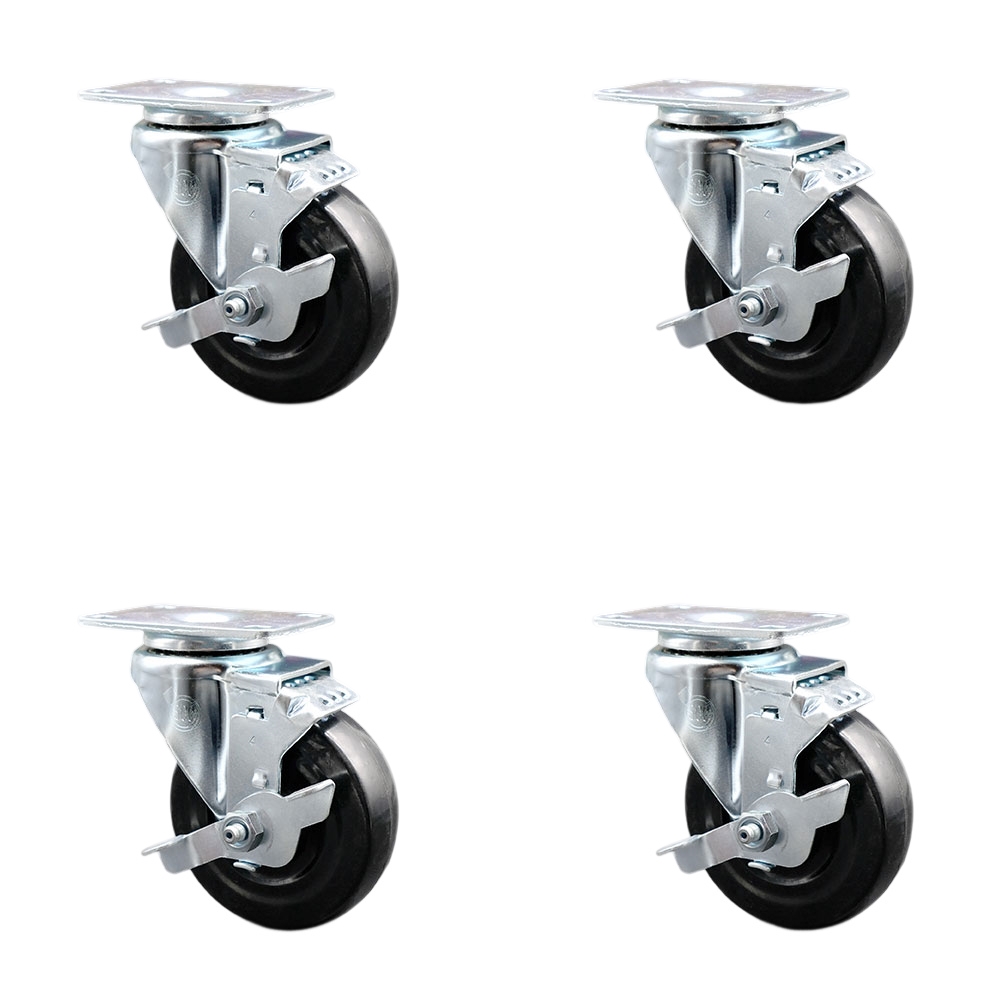

High quality casters for select Avantco refrigeration equipment. Fits a number of different Avantco refrigeration equipment. Listing is for a set of four (4) Service Caster Series #20 swivel casters with brakes and 4 inch diameter by 1-1/4 inch wide hard rubber wheels. These Avantco replacement casters can be used to replace damaged casters or to make your unit mobile for easy cleaning. Supports 1,200 total pounds (lbs.) at 300 pounds (lbs.) per caster. When searching for a reliable and durable solution to your Avantco refrigeration equipment replacement caster needs, consider Service Caster Series 20 top plate hard rubber wheel casters. The Service Caster Series #20 features hard rubber wheels that not only provide higher load capacities and impact resistance than comparable wheels, but are also resistant to most chemicals and oils. Finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway, these Service Caster high performance Avantco replacement casters offer hard rubber wheels that are best used on smooth, flat, and clear industrial or commercial settings where materials may be stationary for long periods. These versatile casters are ideal for a wide range of applications, but are commonly used on Avantco refrigeration equipment. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Fits select Avantco refrigeration equipment • Higher load capacities and impact resistance than comparable wheels. Resistant to most chemicals and oils. • Weight Capacity: 1200 • Overall Top Plate Dimensions: 3-1/8" x 4-1/8"; Mounting Hole Dimensions: 1-3/4" x 2-15/16" to 2-3/8" x 3-3/8"
