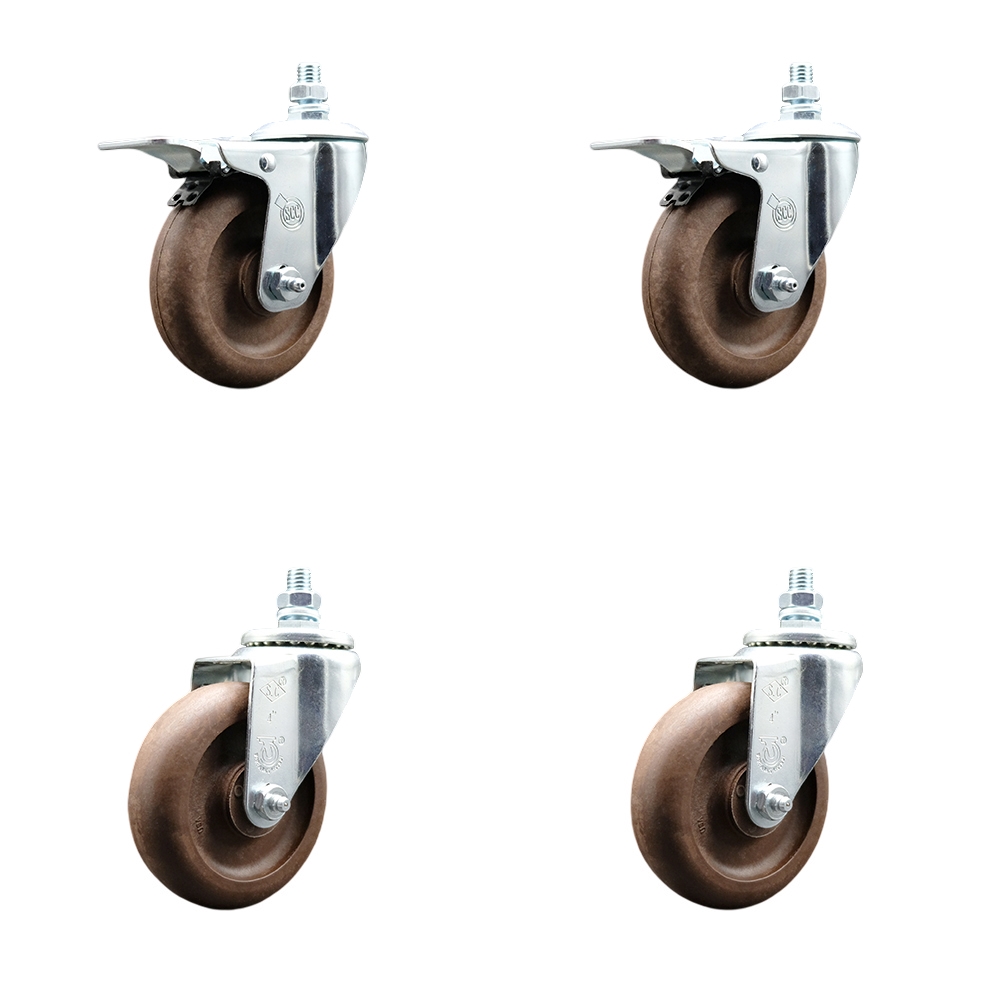

Atosa 301990022 – Fits Atosa Ranges - Replacement Caster Set - Includes 2 Swivel Casters with Total Lock Brakes and 2 Swivel Casters - Set of 4 - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

ATO-SCC-TSTTL20S414-GFNS-M1210-2-S-2

Condition

new

Quantity

4

UPC

734005056181

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

9 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bore Diameter UofM

inches

Capacity

1400

Color

4 Swivel w/2 Total Lock Brakes - 4 PCS

Feature

2 casters with total lock brakes

Heat Capacity

-45 degrees F to 190 degrees F

Item Weight Unit of Measure

pounds

Load Height

5-1/8"

Locking Type

(2) Total lock brakes

Lower Temperature

-45

Lower Temperature UofM

F

Maximum Temperature

250

Maximum Temperature UofM

F

Mounting Height

5-1/8"

Mounting Type

Threaded Stem

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Stem

Locking Castersor Wheels

Yes

Swivels

Yes

Size

4" Wheel

Stem

12mm diameter - 1.75 TPI x 1" length threaded stem

Stem Diameter

12mm

Stem Length

1

Stem Length UofM

inches

Stem Type

Threaded Stem

Thread Length

1

Tread Width

1.25

Tread Width UofM

inches

Type

(2) swivel casters & (2) swivel casters w/total lock brakes

Wheel Bearing

Plain Bore

Wheel Diameter

4

Wheel Diameter UofM

inches

Wheel Material

Glass Filled Nylon

Wheel Size

4" x 1.25"

Wheel Type

Glass Filled Nylon

Description

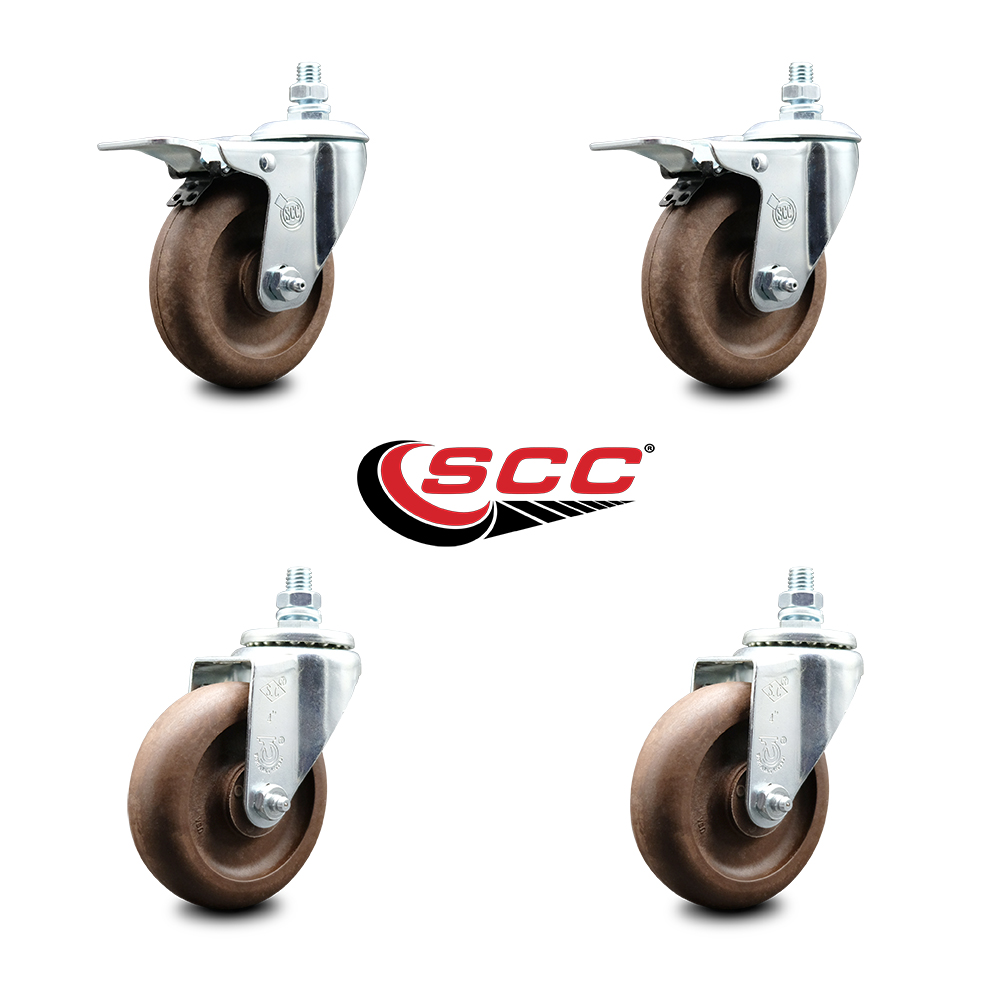

High quality casters for all Atosa Ranges. Listing is for a set of four (4) Service Caster Series #20 swivel casters with 4 inch diameter by 1-1/4 inch wide glass filled nylon wheels. Set includes two (2) swivel casters and two (2) swivel casters with total lock brakes. These Atosa replacement casters have 12 millimeter diameter 1.75 TPI by 1 inch long threaded stems. Supports 1,400 total pounds (lbs.) at 350 pounds (lbs.) per caster. When searching for a reliable and durable solution to your Atosa Range replacement caster needs, consider Service Caster Series 20 threaded stem glass filled nylon wheel casters. The Service Caster Series #20 features glass filled nylon wheels that have a high resistance to shock and impact damage while also being non-marking protecting floors. Finely crafted with a bright zinc plated finish, these Service Caster high performance Atosa replacement casters offer glass filled nylon wheels that are best used on smooth, flat, and clear industrial or commercial settings where materials may be stationary for long periods. These versatile casters are ideal for a wide range of applications, but are commonly used on Atosa Ranges. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Fits Atosa Ranges • High resistance to shock and impact damage • Weight Capacity: 1200 • Threaded Stem Dimensions: M12 - 1.75 x 1"
