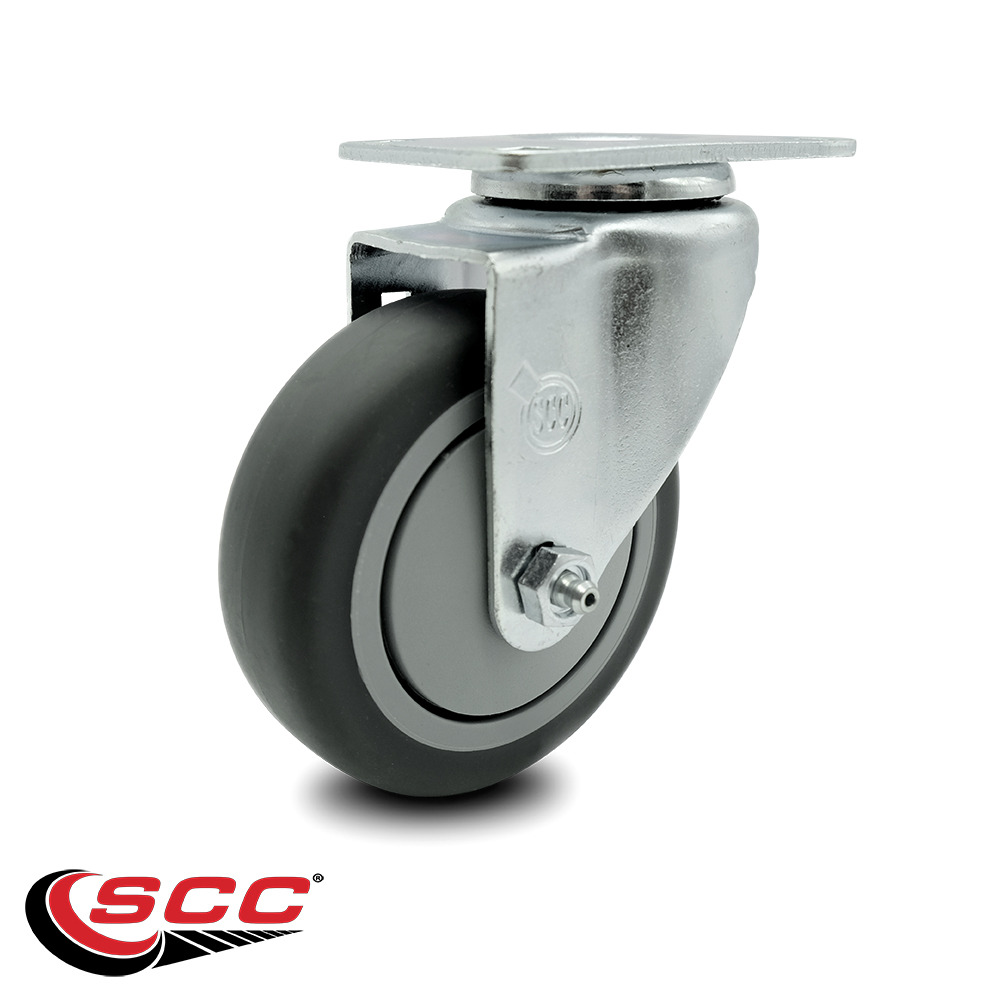

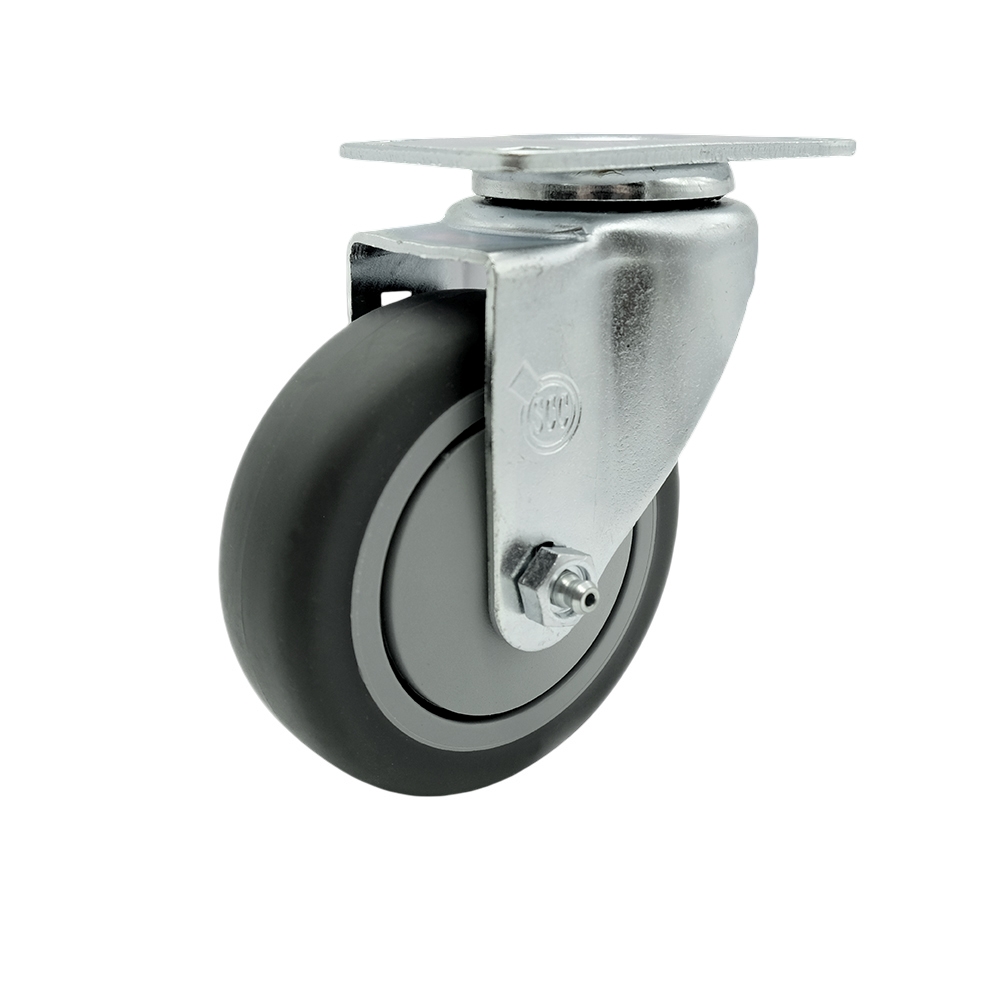

AP262446 262446 AllPoints 4 Inch Swivel Caster - Fits CMP1-4BPN 1027800 Models - Light Duty Replacement – Thermoplastic Rubber Wheel - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

ALL-SCC-20S414-TPRB

Condition

new

Quantity

1

UPC

734005218619

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

4 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Pattern

1-3/4" x 2-7/8" to 3"

Bolt Size

5/16" (hardware not included)

Capacity

250

Color

Swivel - No Brake - Top Plate

Durometer

75A

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

5-1/8"

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Thermoplastic Rubber

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

5-1/8"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Swivels

Yes

Size

4" Thermoplastic Rubber Wheel

Top Plate

2-1/2" x 3-5/8"

Top Plate Size

2-1/2" x 3-5/8"

Tread Width

1.25

Tread Width UofM

inches

Type

(1) swivel caster

Wheel Bearing

Precision Ball Bearing

Wheel Diameter

4

Wheel Diameter UofM

inches

Wheel Material

Thermoplastic Rubber

Wheel Size

4" x 1-1/4"

Wheel Type

Thermoplastic Rubber

Description

Listing is for one (1) Service Caster Series #20 swivel caster with a 4" diameter by 1-1/4" wide thermoplastic rubber wheel capable of supporting 250 lbs. per caster. AP262446 262446 replacement part fits kitchen equipment. When searching for a reliable and durable solution to your AllPoints replacement caster needs, consider Service Caster Series 20 top plate thermoplastic rubber tread on polyolefin core wheel casters. The Service Caster Series #20 features thermoplastic rubber tread on polyolefin core wheels that offer a softer tread for smoother travel while also resisting damage from debris. Finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway, these Service Caster high performance AllPoints replacement casters balance high pay loads with smooth and quiet operation. These versatile casters are ideal for a wide range of applications, but are commonly used on kitchen equipment. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Fits Kitchen Equipment • Compatible Models: CMP1-4BPN & 1027800 • Weight Capacity: 250 lbs. Capacity Per Caster • HARDWARE NOT INCLUDED
