AP262398 262398 AllPoints 5 Inch Swivel Expanding Stem Caster - Compatible with a Variety of Food Service Applications - Light Duty Replacement – Thermoplastic Rubber Wheel - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

ALL-SCC-EX20S514-TPRB-78

Condition

new

Quantity

1

UPC

734005218572

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

4 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Capacity

300

Color

Swivel - No Brake - 7/8" Stem

Durometer

75A

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

6-1/8"

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Thermoplastic Rubber

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

6-1/8"

Mounting Type

Expanding Adapter Stem

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Stem

Swivels

Yes

Size

5" Thermoplastic Rubber Wheel

Stem

7/8" x 2-11/16” Expanding Stem

Stem Diameter

7/8"

Stem Type

Expanding Adapter Stem

Tread Width

1.25

Tread Width UofM

inches

Type

(1) swivel caster

Wheel Bearing

Precision Ball Bearing

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Thermoplastic Rubber

Wheel Size

5" x 1-1/4"

Wheel Type

Thermoplastic Rubber

Description

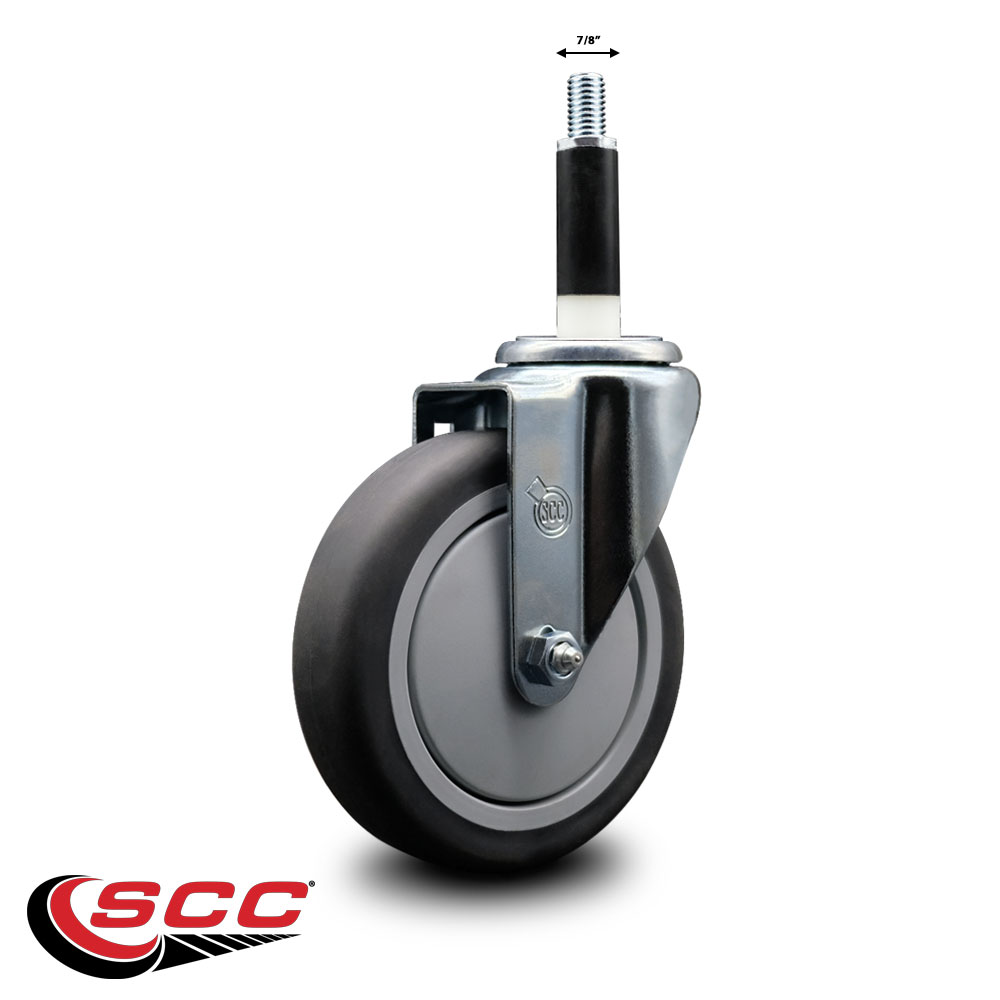

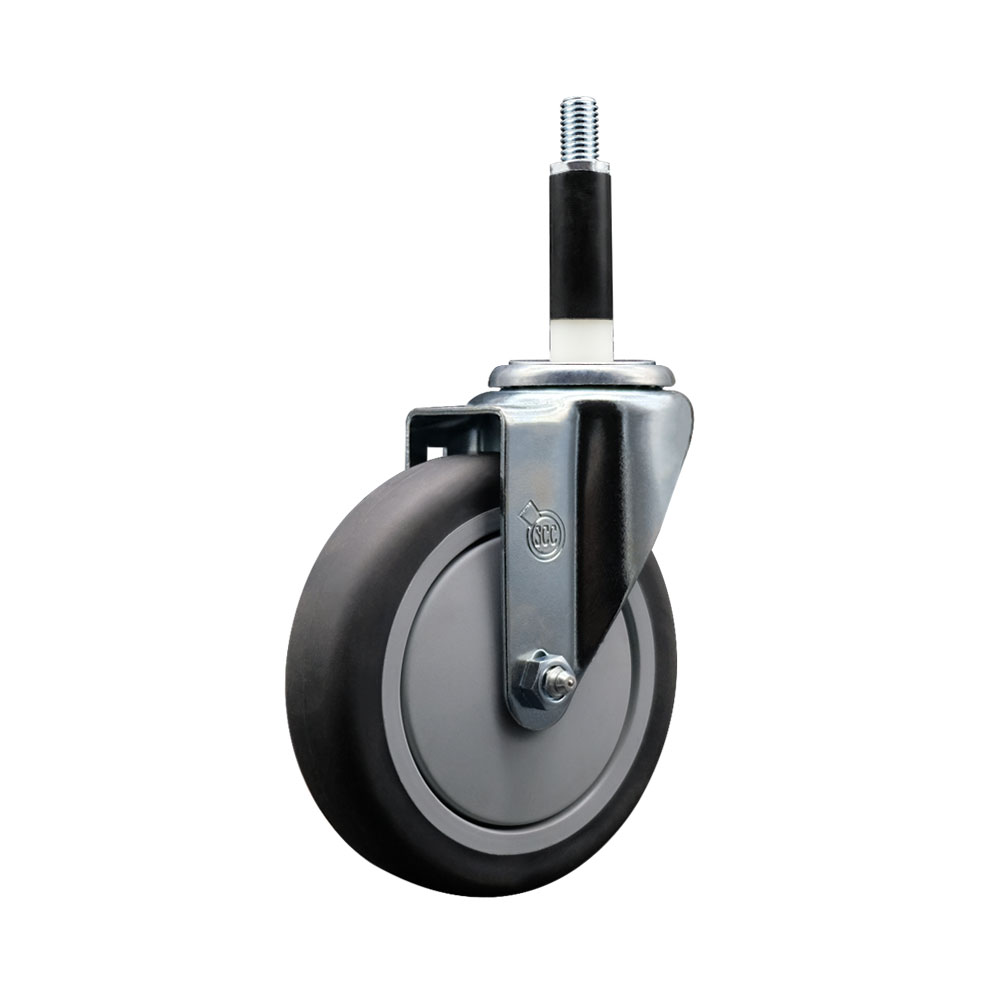

Listing is for one (1) Service Caster Series #20 swivel caster with a 5" diameter by 1-1/4" wide gray thermoplastic rubber wheel and 7/8" diameter x 2-11/16" length expanding stem. Supports up to 300 lbs. per caster. AP262398 262398 replacement part fits a variety of food service applications. When searching for a reliable and durable solution to your AllPoints replacement caster needs, consider Service Caster Series 20 expanding stem thermoplastic rubber tread on polyolefin core wheel casters. The Service Caster Series #20 features thermoplastic rubber tread on polyolefin core wheels that offer a softer tread for smoother travel while also resisting damage from debris. Finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway, these Service Caster high performance AllPoints replacement casters balance high pay loads with smooth and quiet operation. These versatile casters are ideal for a wide range of applications, but are commonly used on variety of food service applications. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Fits a Variety of Food Service Applications • Compatible with a Variety of Applications • Weight Capacity: 300 lbs. Capacity Per Caster • HARDWARE NOT INCLUDED
