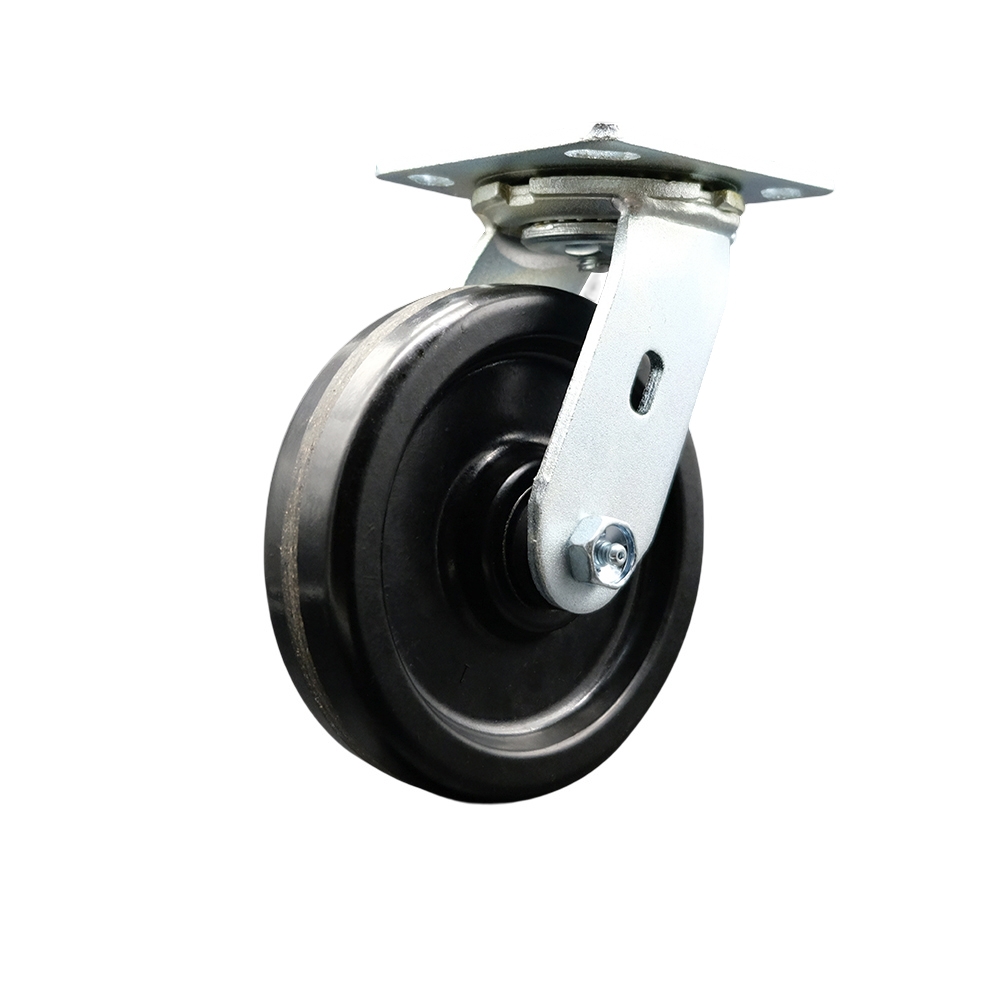

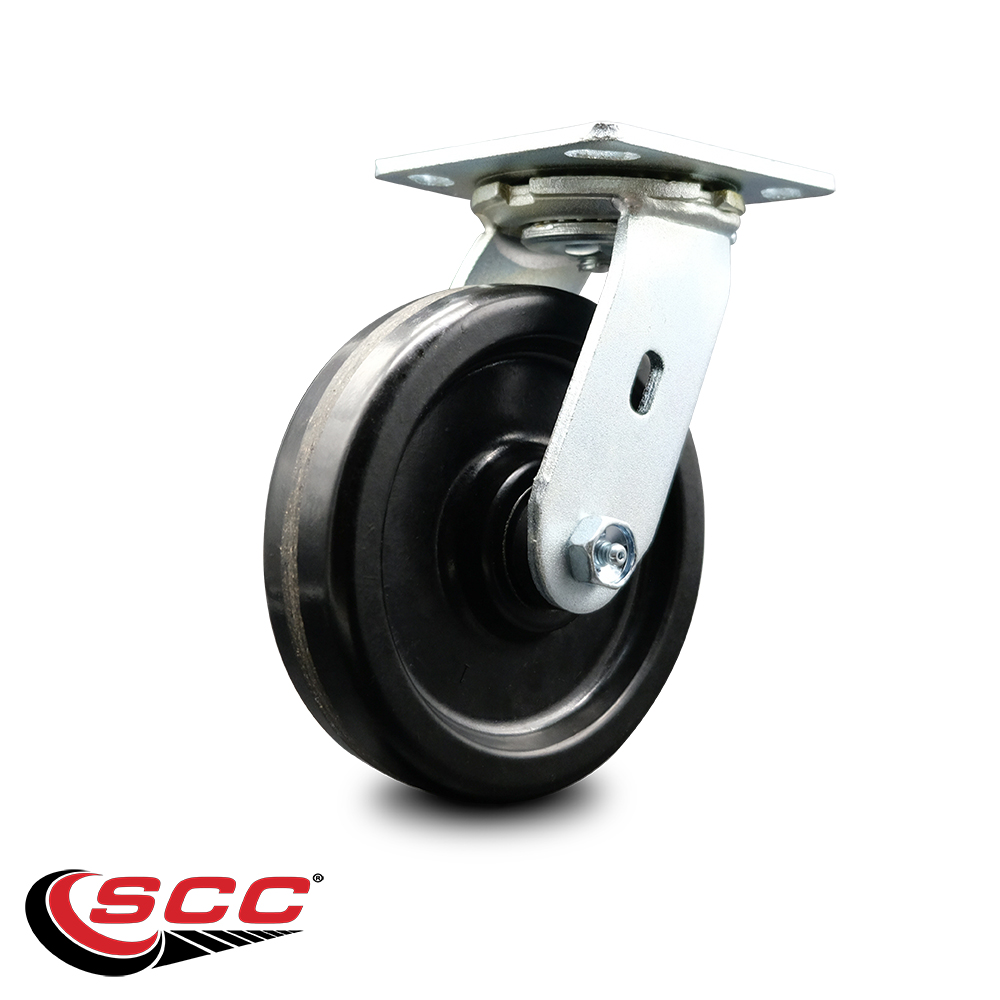

Albion Industries 16TM06101S Replacement Swivel Caster - 6 Inch Black Phenolic Wheel - 800 lbs. Capacity Per Caster - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #30

SKU

ALB-SCC-30CS615-PHR

Condition

new

Quantity

1

UPC

734005059496

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

7 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Pattern

2-5/8" x 3-5/8" to 3" x 3"

Bolt Size

3/8" (hardware not included)

Capacity

800

Color

Swivel - No Brake - Black - 1 PC

Durometer

90D

Heat Capacity

-50 degrees F to 250 degrees F

Item Weight Unit of Measure

pounds

Load Height

7-1/2"

Lower Temperature

-50

Lower Temperature UofM

F

Maximum Temperature

250

Maximum Temperature UofM

F

Mounting Height

7-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Swivels

Yes

Size

6" Wheel

Top Plate Size

4" x 4-1/2"

Tread Width

1.5

Tread Width UofM

inches

Type

Swivel caster

Wheel Bearing

Roller Bearing

Wheel Diameter

6

Wheel Diameter UofM

inches

Wheel Material

Phenolic

Wheel Size

6" x 1.5"

Wheel Type

Phenolic

Description

High quality replacement swivel caster for a Albion Industries 16TM06101S. Listing is for one (1) Service Caster Series #30 swivel caster and 6 inch diameter by 1-1/2 inch wide phenolic wheel. Supports 800 pounds (lbs.) per caster. When searching for a reliable and durable solution to your caster needs, rely on Service Caster Series 30 top plate phenolic wheel casters. The Service Caster Series #30 is ideal for medium and heavy duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, and the phenolic resin wheels are highly resistant to impact damage, providing protection for floors in commercial and industrial settings. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Mounting Height: 7-1/2" • Ideal for industrial or clear commercial settings were materials may be stationary for long periods and there are no floor obstructions • Weight Capacity: 800 lbs. • Overall Top Plate Dimensions: 4" x 4-1/2"; Mounting Hole Dimensions: 2-5/8" x 3-5/8" to 3" x 3"
