8" x 2" Rubber Tread on Cast Iron Keyed Drive Wheel - 3/4" Plain Bore with two 1/4" Set Screws - Service Caster Brand

Details

Manufacturer

Service Caster

SKU

SCC-RSS820-34-KW-2SS

Condition

new

Quantity

1

UPC

670533908601

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

5 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bore Diameter

0.75

Bore Diameter UofM

inches

Bore Size

3/4"

Capacity

375 lbs. per wheel (Weight capacity can vary depending on load, torque, speed, duty cycle, environment, and coefficient of friction)

Color

Bore Size: 3/4" (3/16" W x 3/32" D Keyway)

Durometer

70-80A

Heat Capacity

-40 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Lower Temperature

-40

Lower Temperature UofM

F

Maximum Temperature

180

Maximum Temperature UofM

F

Plating/Coating

Rubber on Cast Iron

Size

8" Wheel

Tread Width

2

Tread Width UofM

inches

Type

Drive Wheel

Wheel Bearing

Plain Bore

Wheel Diameter

8

Wheel Diameter UofM

inches

Wheel Material

Rubber on Cast Iron

Wheel Size

8" x 2"

Wheel Type

Rubber on Cast Iron

Description

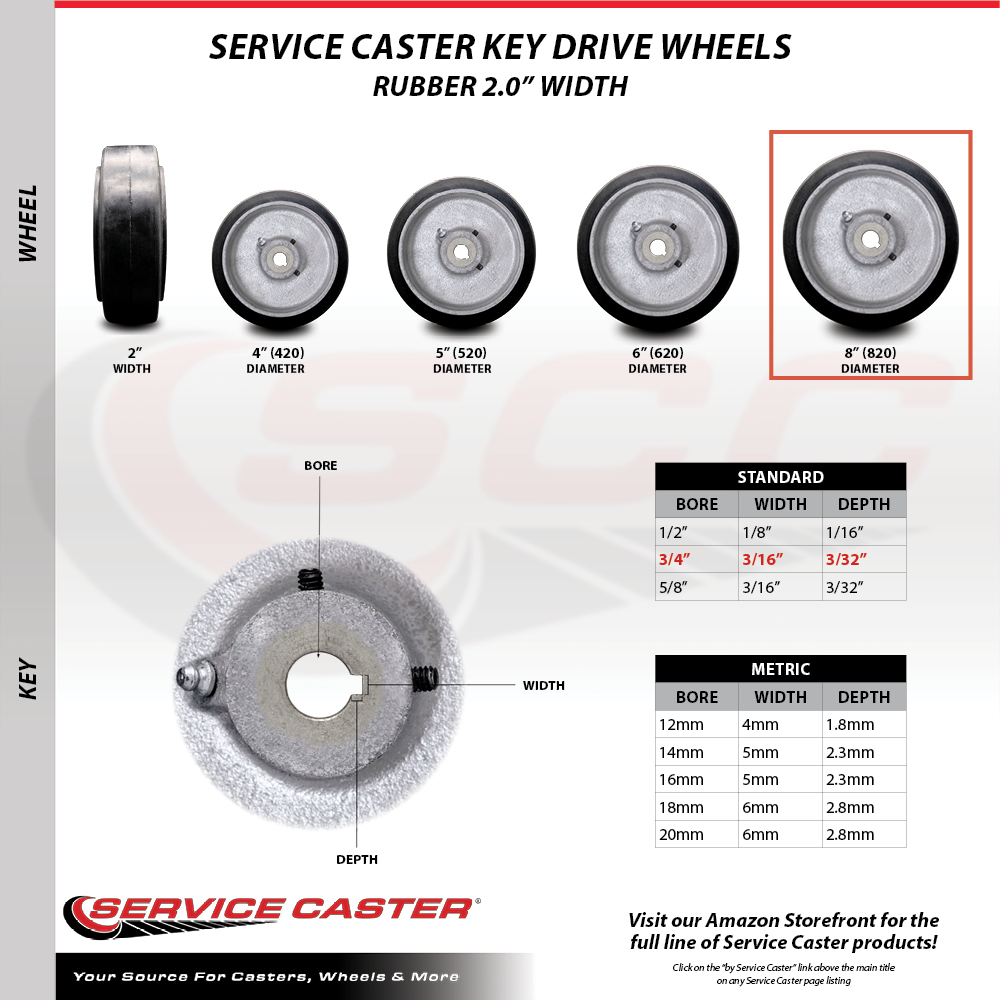

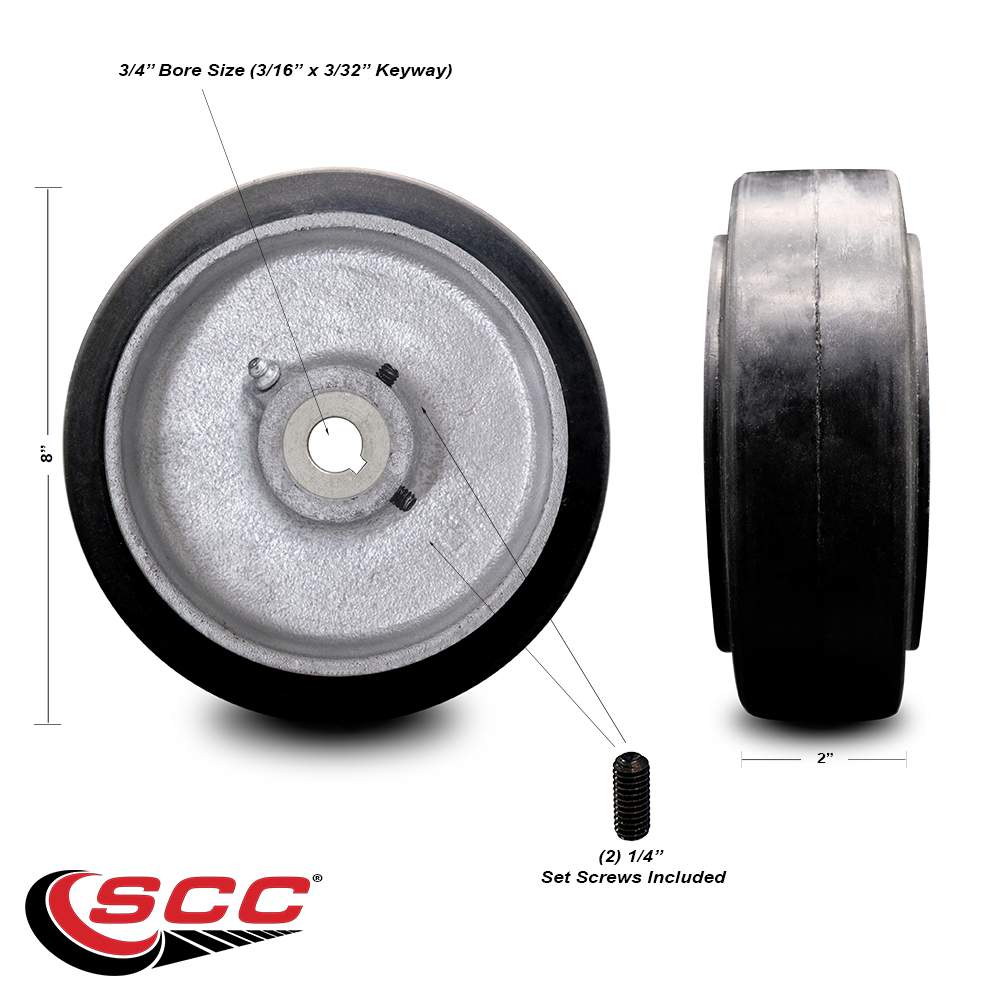

Listing is for one (1) Service Caster 8" diameter by 2" tread width keyed drive wheel.When searching for a reliable and durable solution for replacement keyed drive wheels, consider Service Caster’s Rubber on Cast Iron wheels. Rubber on cast iron is the most versatile and cost-effective industrial wheel on the market. The non-marking and non-sparking tread protects floors, rolls quiet and is resistant to most chemicals, while the high capacity load bearing wears like iron. Featuring a rubber tread and a silver cast iron core, this keyed drive wheel comes with a 3/4" plain bore and a 3/16" x 3/32" keyway. This wheel also comes standard with (2) 1/4" set screws, one on the keyway and one 90 degrees from it. Finally, featuring a 70-80 Shore (A) durometer, this wheel is a great option for anyone looking for a keyed drive wheel. If you do not see the needed size listed, please contact us so we can assist you further. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Service Caster’s Rubber on Silver Cast Iron core wheels come in four different wheel sizes – 4" x 2", 5” x 2", 6” x 2", and 8" x 2". • Weight capacity: 375 lbs. per wheel (Weight capacity can vary depending on load, torque, speed, duty cycle, environment, and coefficient of friction) • Three different bore sizes are available - 1/2" (1/8" W x 1/16" D Keyway), 5/8" (3/16" W x 3/32" D Keyway), and 3/4" (3/16" W x 3/32" D Keyway). All wheel sizes have a 2-3/16" hub length. The hub length is the widest point of the wheel, so it is important to ensure you can accommodate this width before purchasing. • Rubber on cast iron is the most versatile and cost-effective industrial wheel on the market. The non-marking and non-sparking tread protects floors, rolls quiet and is resistant to most chemicals, while the high capacity load bearing wears like iron. Finally, featuring a 70-80 Shore (A) durometer, this wheel is a great option for anyone looking for a keyed drive wheel.
