600CASTPRE Regency 5 Inch Swivel Caster with Brake - Compatible with Sheet Pan Racks - Light Duty Replacement - Polyolefin Wheel - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

REG-SCC-SQ20S514-POS-TLB-34

Condition

new

Quantity

1

UPC

734005217865

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

4 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Capacity

300

Color

Swivel - Top Lock Brake - 3/4" Stem

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

6-1/8"

Locking Type

Top Lock Brake

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Polyolefin

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

6-1/8"

Mounting Type

Square stem

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Stem

Locking Castersor Wheels

Yes

Swivels

Yes

Size

5" Polyolefin Wheel

Tread Width

1.25

Tread Width UofM

inches

Type

Swivel caster w/top lock brake

Wheel Bearing

Plain Bore

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Polyolefin

Wheel Size

5" x 1-1/4"

Wheel Type

Polyolefin

Description

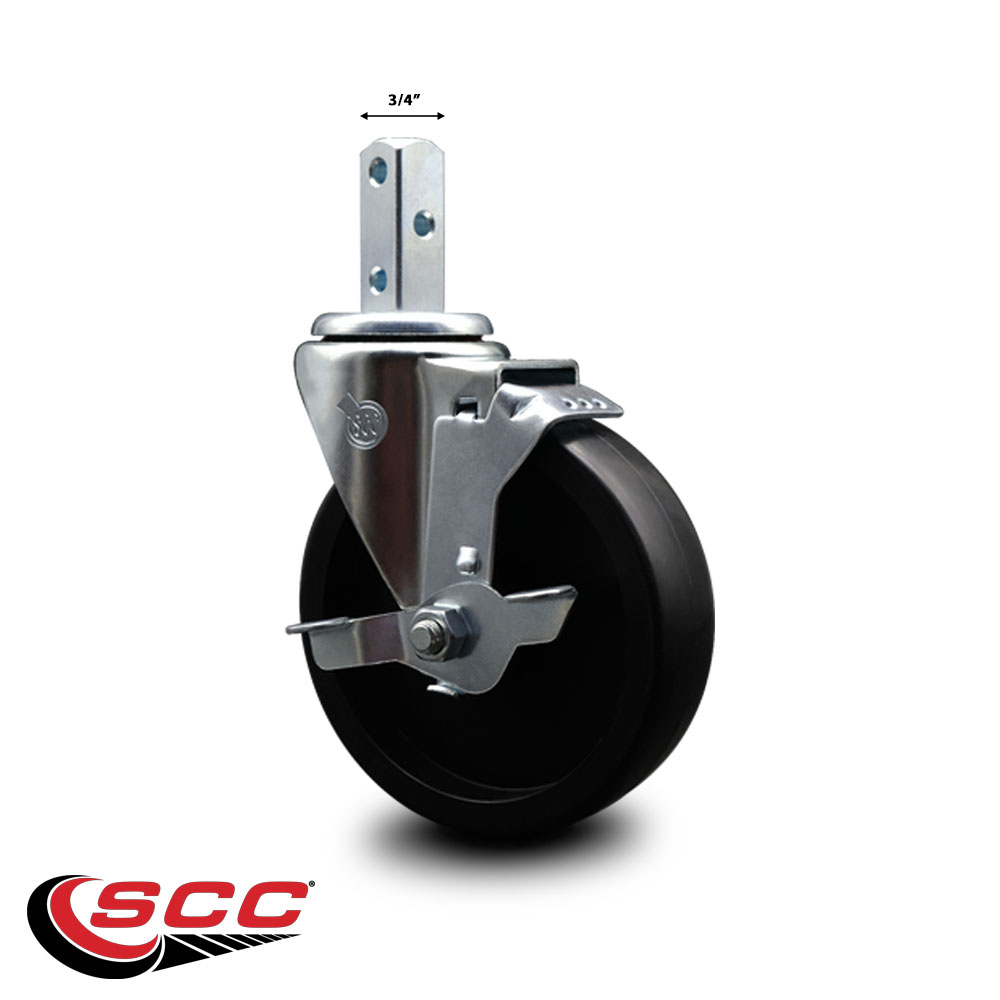

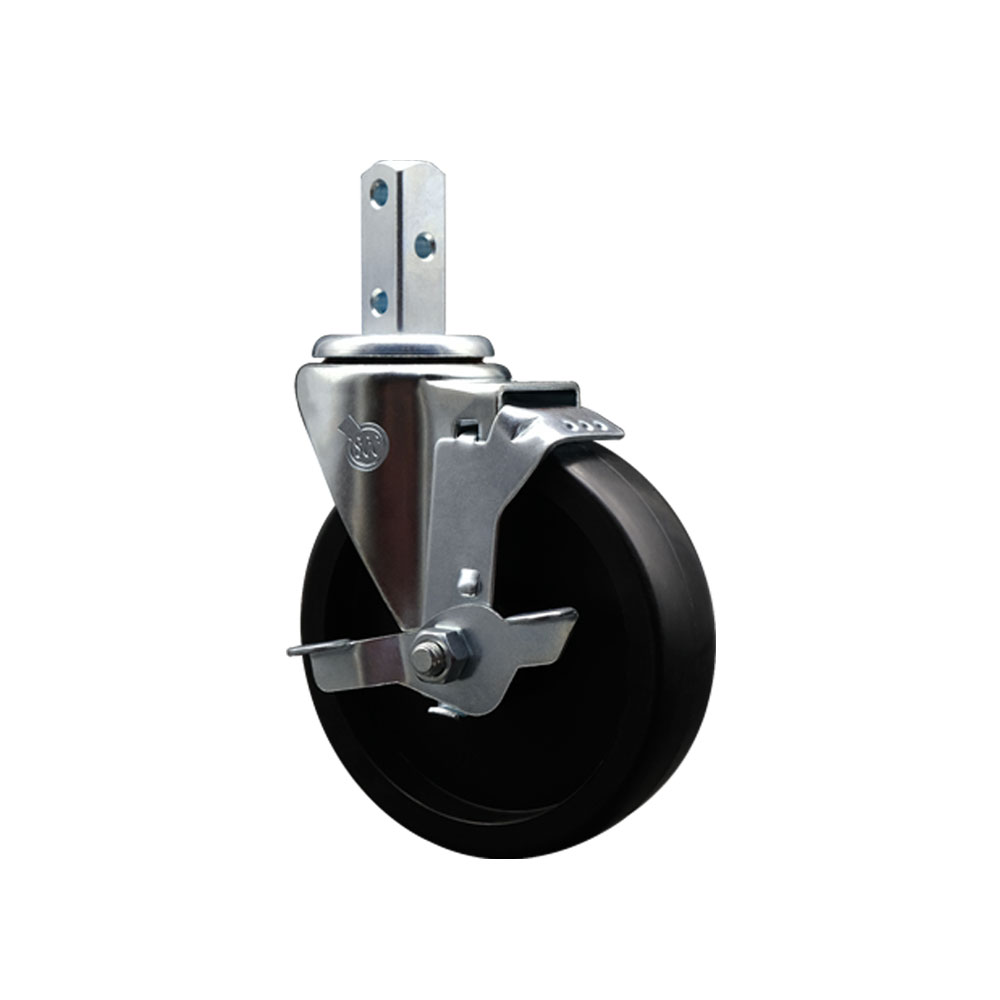

Listing is for one (1) Service Caster Series #20 swivel caster with top lock brake and a 5" diameter by 1-1/4" wide polyolefin wheel and 3/4" diameter x 2" length square stem. Supports up to 300 lbs. per caster. 600CASTPRE replacement part fits Regency unassembled end load sheet pan rack. When searching for a reliable and durable solution to your Regency replacement caster needs, consider Service Caster Series 20 square stem polyolefin wheel casters. The Service Caster Series #20 features polyolefin wheels that have a high resistance to shock and impact damage while also being non-marking protecting floors. Finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway, these Service Caster high performance Regency replacement casters offer polyolefin wheels that are best used on smooth, flat, and clear industrial or commercial settings where materials may be stationary for long periods. These versatile casters are ideal for a wide range of applications, but are commonly used on Regency unassembled end load sheet pan rack. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Fits Regency Unassembled End Load Sheet Pan Rack • Compatible Model: 109RACKECON • Weight Capacity: 300 lbs. Capacity Per Caster • HARDWARE NOT INCLUDED
