6" x 2.5" Green Polyurethane Tread on Cast Iron Keyed Drive Wheel - 1-1/4" Plain Bore with two 5/16" Set Screws - 1,625 lbs. Capacity Per Wheel - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Polyurethane Tread on Metal Core

SKU

SCC-EZPUS625-114-KW-2SS

Condition

new

Quantity

1

UPC

734005480955

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

10 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bore Diameter

1.25

Bore Diameter UofM

inches

Bore Size

1.25

Capacity

1625 (Weight capacity can vary depending on load, torque, speed, duty cycle, environment, and coefficient of friction)

Color

Bore Size: 1-1/4" (1/4" W x 1/8" D Keyway)

Durometer

95A

Heat Capacity

-40 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Lower Temperature

-40

Lower Temperature UofM

F

Maximum Temperature

180

Maximum Temperature UofM

F

Plating/Coating

Polyurethane

Size

6" Wheel

Tread Width

2.5

Tread Width UofM

inches

Wheel Bearing

Plain Bore

Wheel Diameter

6

Wheel Diameter UofM

inches

Wheel Material

Polyurethane Tread on Metal Core

Wheel Size

6" x 2.5"

Wheel Type

Polyurethane Tread on Metal Core

Description

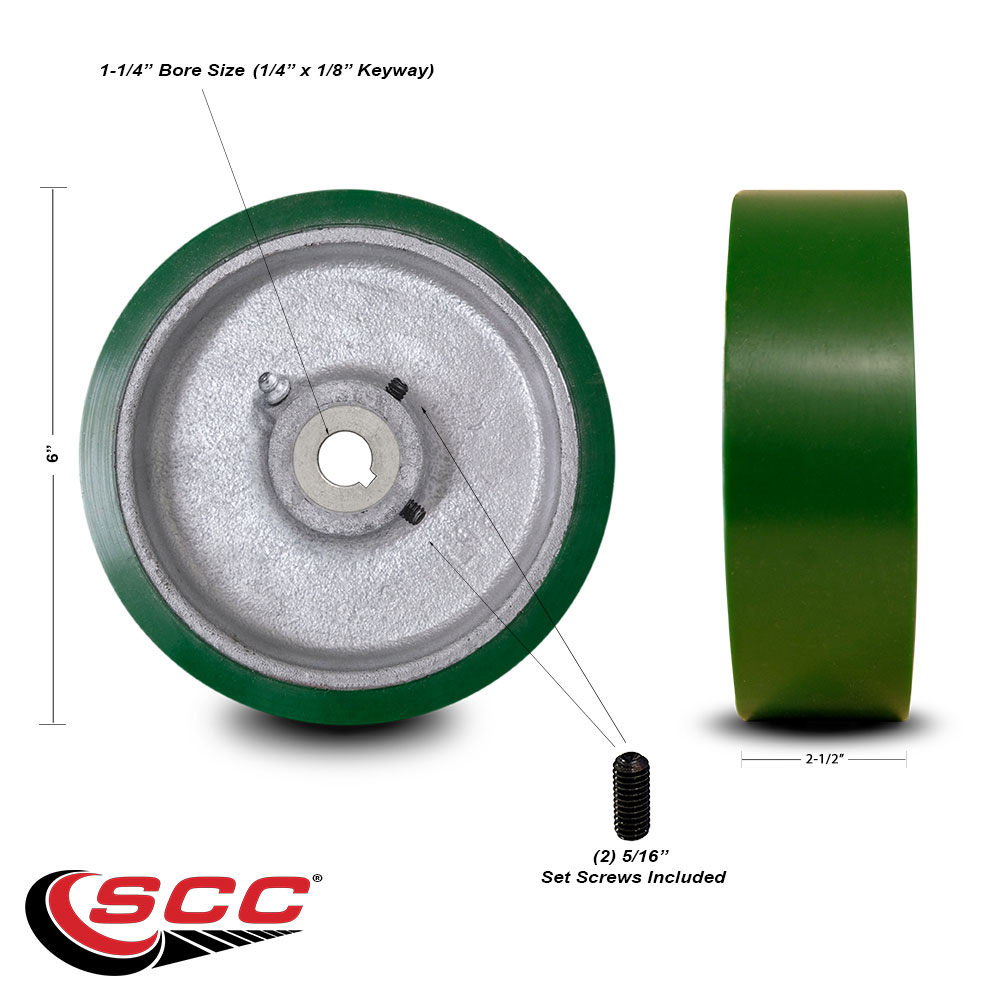

Listing is for one (1) Service Caster 6" diameter by 2-1/2" tread width green polyurethane keyed drive wheel with 1-1/4 inch bore. Supports 1625 pounds (lbs) per wheel. When searching for a reliable and durable solution for replacement keyed drive wheels, consider Service Caster’s Polyurethane on Cast Iron wheels. Polyurethane on cast iron is the most versatile and cost-effective industrial wheel on the market. Service Caster’s polyurethane tread is liquid cast and chemically bonded to a Class 30 solid web cast iron center. The non-marking and non-sparking tread protects floors, rolls quiet and is resistant to most chemicals, while the high capacity load bearing wears like iron. Featuring a green polyurethane tread and a silver cast iron core, this keyed drive wheel comes with a 1-1/4" plain bore and a 1/4" x 1/8" keyway. This wheel also comes standard with (2) 5/16" set screws, one on the keyway and one 90 degrees from it. Finally, featuring a 90-95 Shore (A) durometer, this wheel is a great option for anyone looking for a keyed drive wheel. If you do not see the needed size listed, please contact us so we can assist you further. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Wheel Size: 6" x 2-1/2" • Weight Capacity: 1,625 lbs. (Weight capacity can vary depending on load, torque, speed, duty cycle, environment, and coefficient of friction) • Bore Size: 1-1/4" • Polyurethane on cast iron is the most versatile and cost-effective industrial wheel on the market. Service Caster’s polyurethane tread is liquid cast and chemically bonded to a Class 30 solid web cast iron center. The non-marking and non-sparking tread protects floors, rolls quiet and is resistant to most chemicals, while the high capacity load bearing wears like iron. Finally, featuring a 90-95 Shore (A) durometer, this wheel is a great option for anyone looking for a keyed drive wheel.
