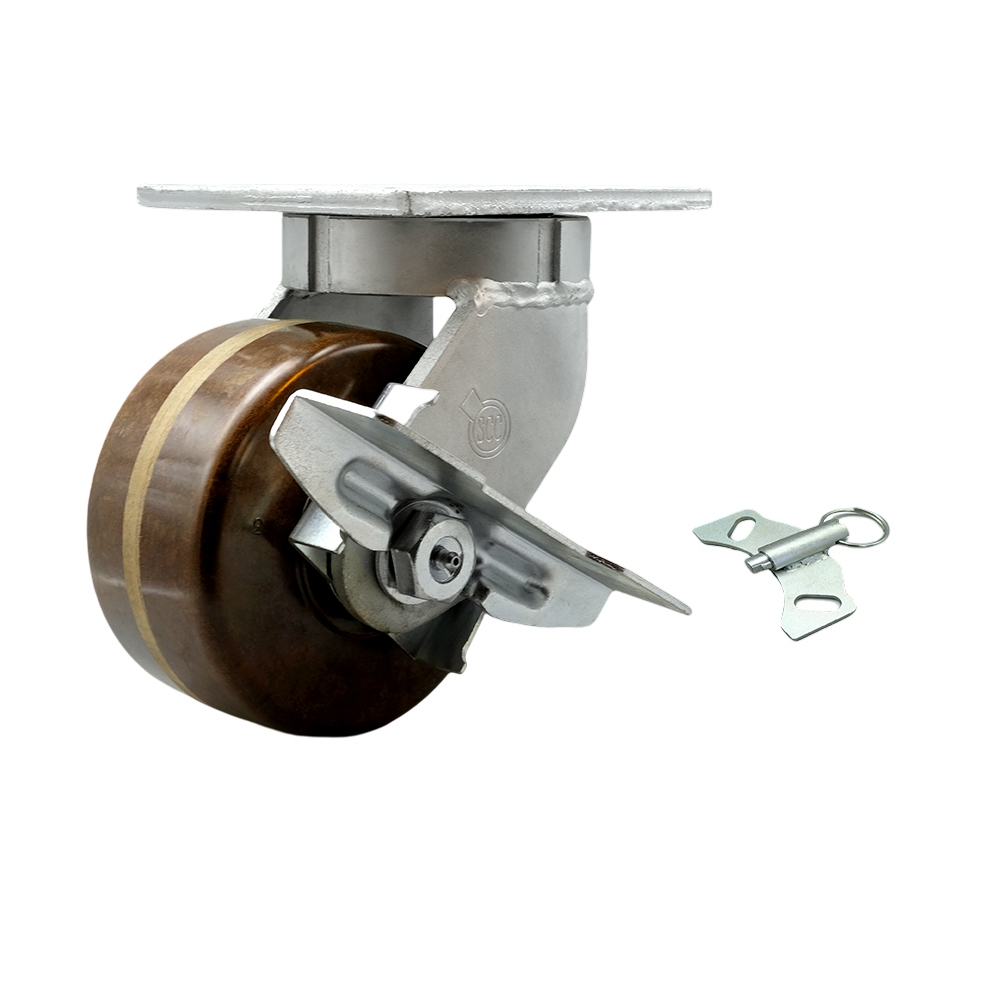

6 Inch Swivel Top Plate Extra Heavy Duty Caster with High Temperature Phenolic Wheel and Brake and Bolt on Swivel Lock - Heavy Duty Caster Wheel - 2,000 lbs. Capacity/Caster - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #92

SKU

SCC-KP92S630-PHRHT-SLB-BSL

Condition

new

Quantity

1

UPC

670533887883

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

21 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

1/2" (hardware not included)

Capacity

2000

Color

Swivel - Side Lock Brake and Bolt On Swivel

Durometer

90D

Feature

Side lock brake & Bolt on swivel lock

Heat Capacity

475 degrees F to 525 degrees F

Item Weight Unit of Measure

pounds

Load Height

8"

Locking Type

Side lock brake & Bolt on swivel lock

Lower Temperature

-45

Lower Temperature UofM

F

Maximum Temperature

525

Maximum Temperature UofM

F

Mounting Height

8"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

6" Wheel

Top Plate Size

5-1/4" x 7-1/4"

Tread Width

3

Tread Width UofM

inches

Type

Swivel caster w/side lock brake & bolt on swivel lock

Wheel Bearing

Roller Bearing

Wheel Diameter

6

Wheel Diameter UofM

inches

Wheel Material

High Temperature Phenolic

Wheel Size

6" x 3"

Wheel Type

High Temperature Phenolic

Description

Listing is for one (1) Service Caster Series #92 swivel caster with a side lock brake, a bolt on swivel lock, and a 6" diameter, 3" wide brown high temperature phenolic wheel. Supports 2000 pounds (lbs) per caster.When searching for a reliable and durable solution for extra heavy duty projects, consider Service Caster’s Series 92 top plate phenolic casters. The Service Caster Series #92 is ideal for autoclaves, bakery ovens and powder coating facilities. The high temp phenolic wheels- quieter than comparable steel wheels- have a high resistance to impact damage, providing protection for floors in commercial and industrial settings. This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 475°F continuous usage to 525°F intermittent usage. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series 92 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features ½” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series #92 top plate casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • The Kingpinless Series 92 high temp phenolic casters come in these wheel sizes and mounting heights – 6” wheel (8” mounting height), 8” wheel (10-1/2” mounting height), 10” wheel (12-1/2” mounting height) and 12” wheel (15-1/2” mounting height). Resistant to water, oil, grease and impact damage, protecting floors, and non-metallic, providing spark proof protection. Ideal in high temps associated with baking, performing at 475°F continuous usage to 525°F intermittent usage. • Weight capacity ranges from 2000 lbs on the 6” caster, 2500 lbs on the 8”, 3000 lbs on the 10” and 3500 lbs. on the 12”. • Top plate measures at 5-1/4" x 7-1/4" with a bolt hole pattern of 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8" and can either be bolted or welded on. • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
