6 Inch Swivel Pneumatic Casters Set of 4 - Black Rubber Wheels - Includes 2 Swivel with Brakes and 2 Swivel - Heavy Duty Casters - 1,000 lbs. Total Capacity - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #100

SKU

SCC-100S150-PNB-2-TLB-2

Condition

new

Quantity

4

UPC

670533851068

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

16 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

3/8" (hardware not included)

Capacity

1000

Color

4 Swivel w/2 Top Lock Brakes

Feature

2 casters with top lock brakes

Item Weight Unit of Measure

pounds

Load Height

7-1/2"

Locking Type

(2) Top lock brakes

Mounting Height

7-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

6" Black Wheel

Top Plate Size

4" x 4-1/2"

Tread Width

2

Tread Width UofM

inches

Type

(2) swivel casters & (2) swivel casters w/top lock brakes

Wheel Bearing

Ball Bearings

Wheel Diameter

6

Wheel Diameter UofM

inches

Wheel Material

Rubber

Wheel Size

6" x 2"

Wheel Type

Rubber tread on metal core

Description

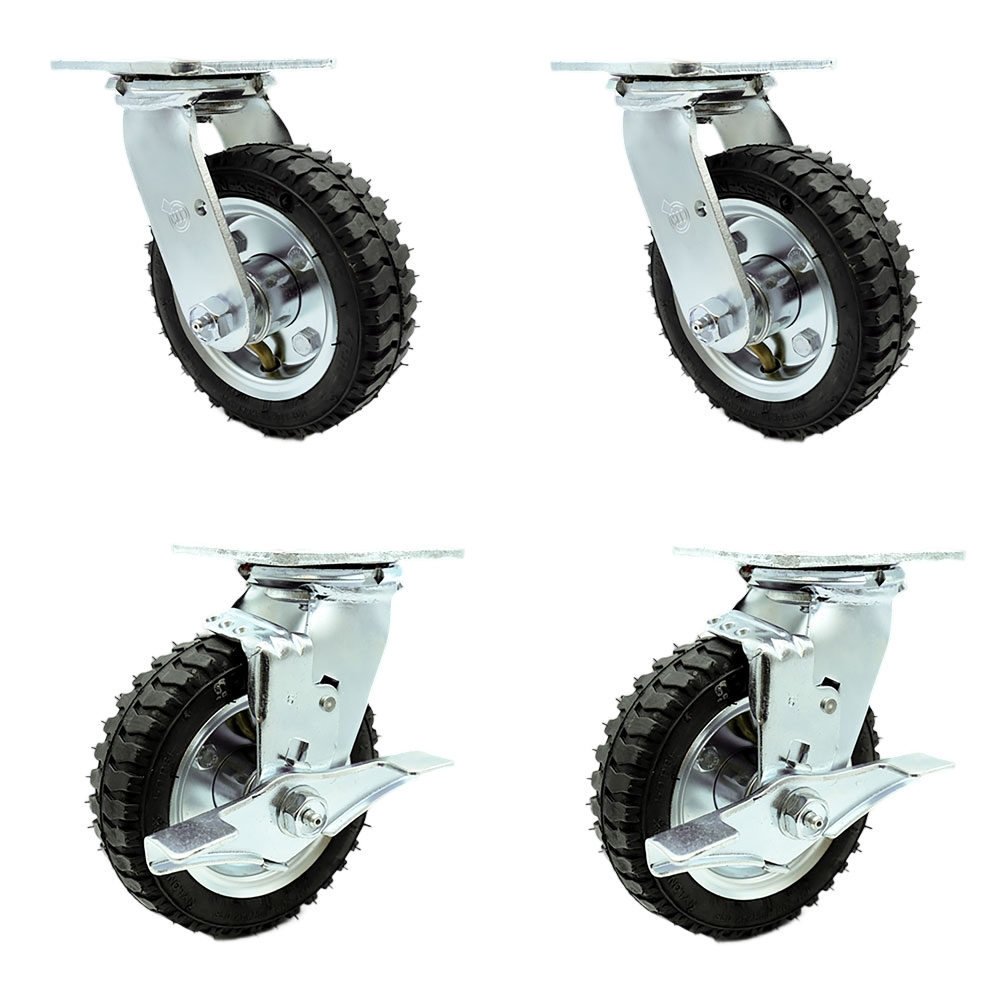

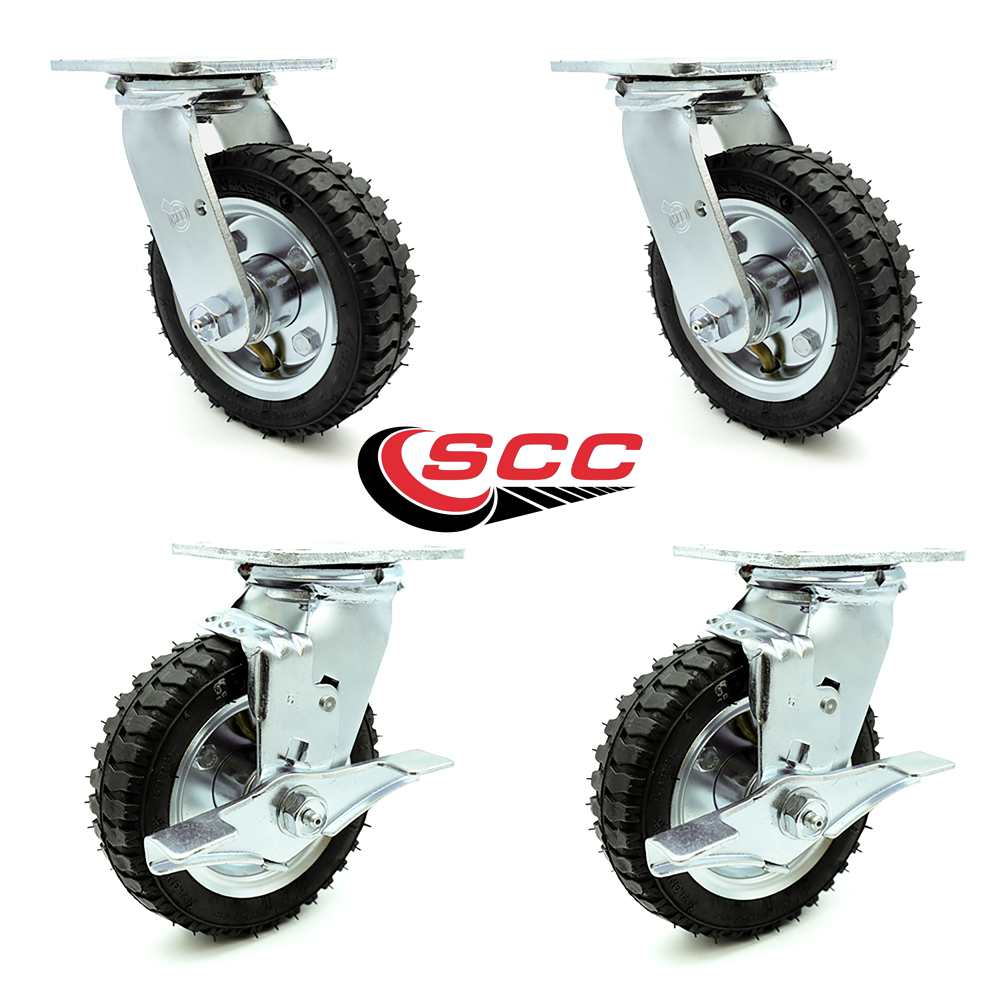

Listing is for a a set of four (4) Service Caster Series #100 swivel casters, two (2) with top locking brakes, with 6” diameter by 2” wide black pneumatic rubber wheels. Supports a total weight of 1,000lbs (250lbs/caster). When searching for a reliable and durable solution to your caster needs, look no further than the Service Caster Series #100 casters. The universal design provides an excellent OEM and replacement part for luggage carts, food carts, or any application your business requires. With it’s zinc plated finish and pneumatic rubber wheels all rolling on finely crafted ball bearings, the Service Caster Series #100 provides enhanced noise reduction and consistent roll on any surface, for an overall superior ride under any condition. Note: this caster is NOT intended for highway use! Manual speed only. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • The Series 100 pneumatic casters come in 6” (mounting height 7.5”), 8” (mounting height 10”), 8” gray, 10” (mounting height 12.1875”) and 12” (mounting height 13.75”) and are made of pneumatic tread and an inner core filled with pressurized air which remains inflated even with the weight of a vehicle resting on it. • Weight capacity ranges from 250 lbs on the 6” caster, 300 lbs on the 8”, 350 lbs on the 10” and 450 lbs. on the 12”. • Top plate measures at 4" x 4 1/2" with a bolt hole pattern of 2.625" x 3.625" to 3" x 3" and can either be bolted or welded on. • Brake options include top lock brake (TLB), side lock brake (SLB), bolt-on swivel lock (BSL), or combinations of each. The TLB (6, 8, and 10” casters) places a positive locking force against the wheel top, whereas the SLB (12” caster) places the force against the wheel side. The bolt-on swivel lock (BSL) is field installable and converts a swivel caster to rigid for straight-line tracking at any 90 degree angle via a spring-loaded bolt inserted into one of 4 notches found on the swivel raceway.
